Condition:New – Open box

Core Specifications

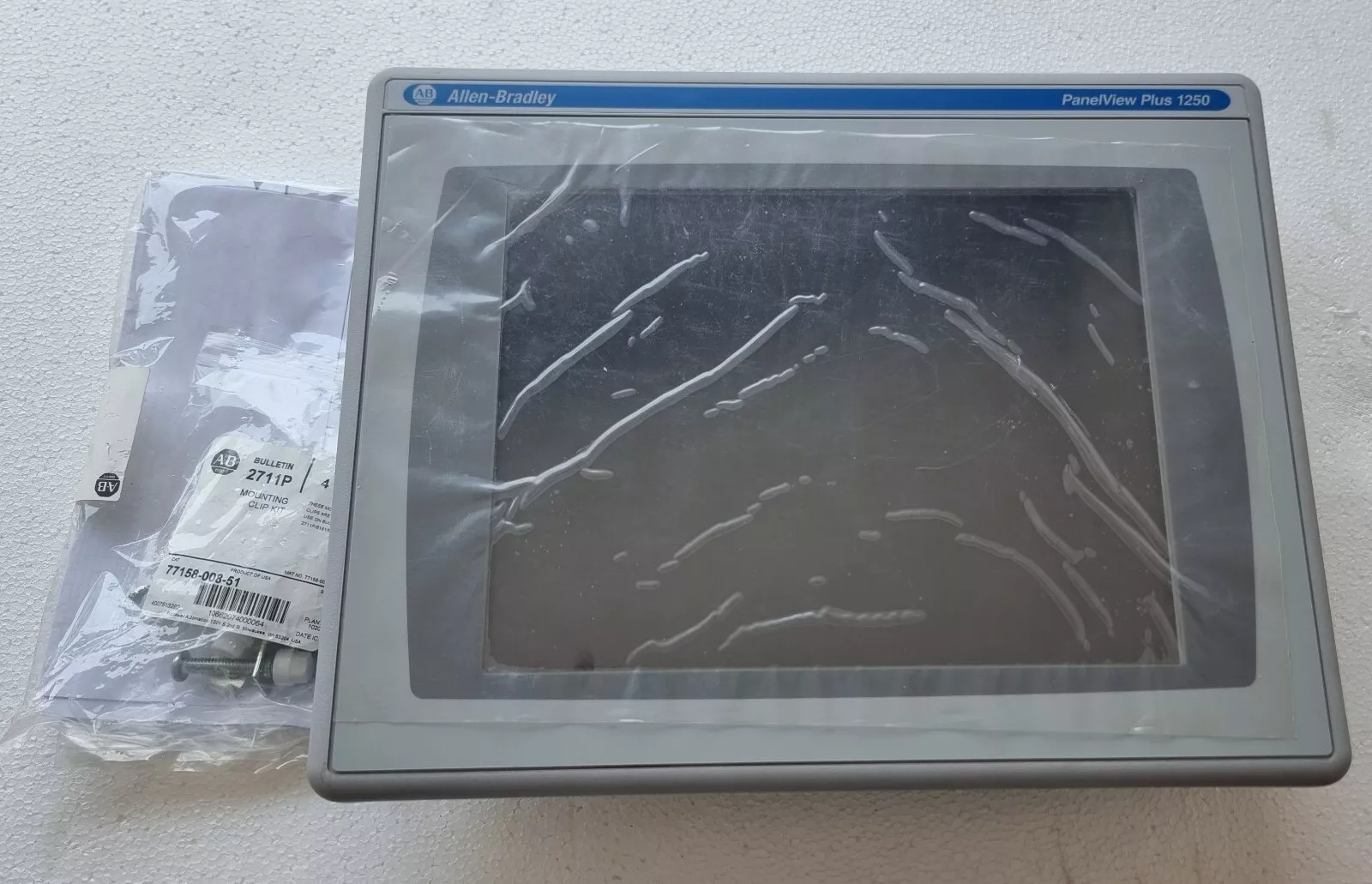

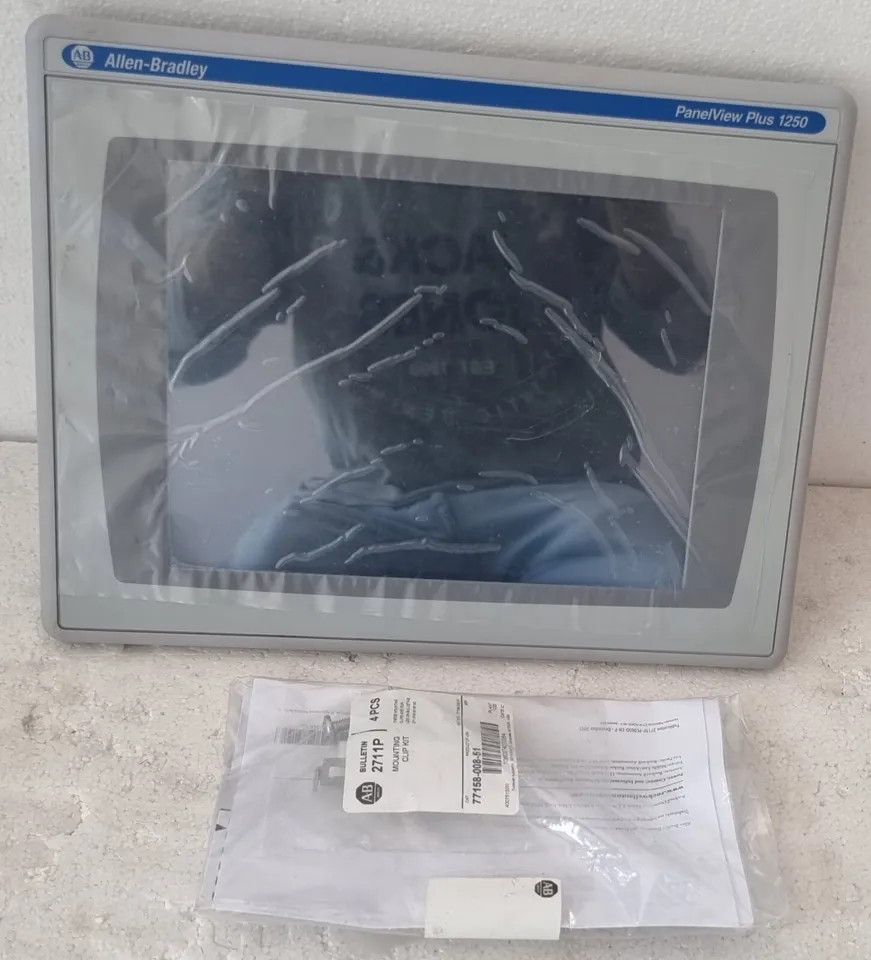

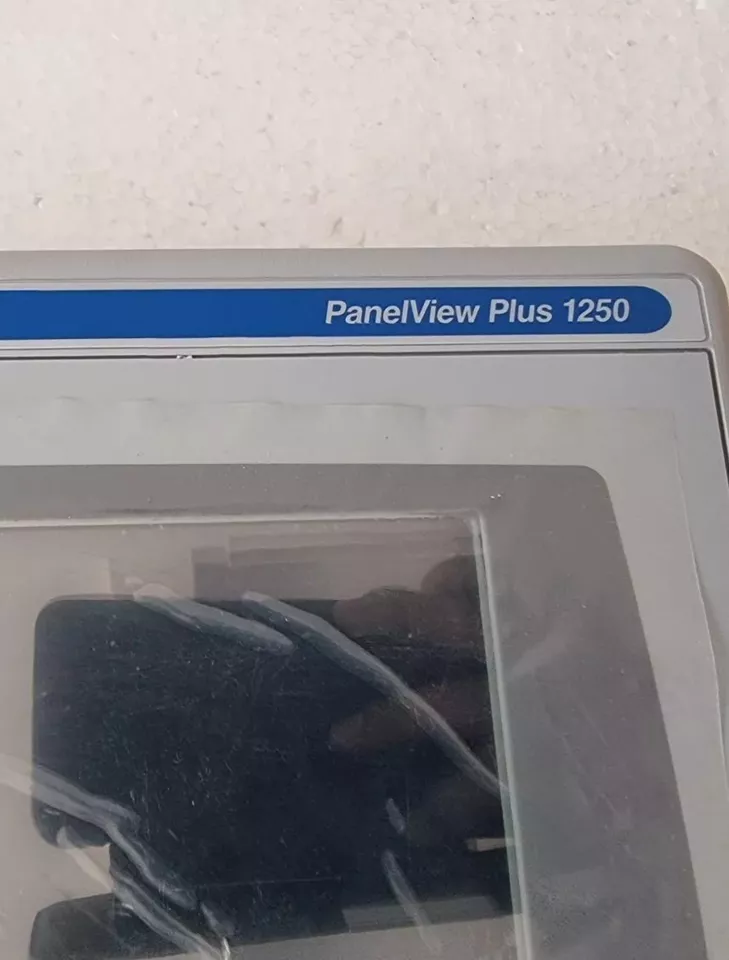

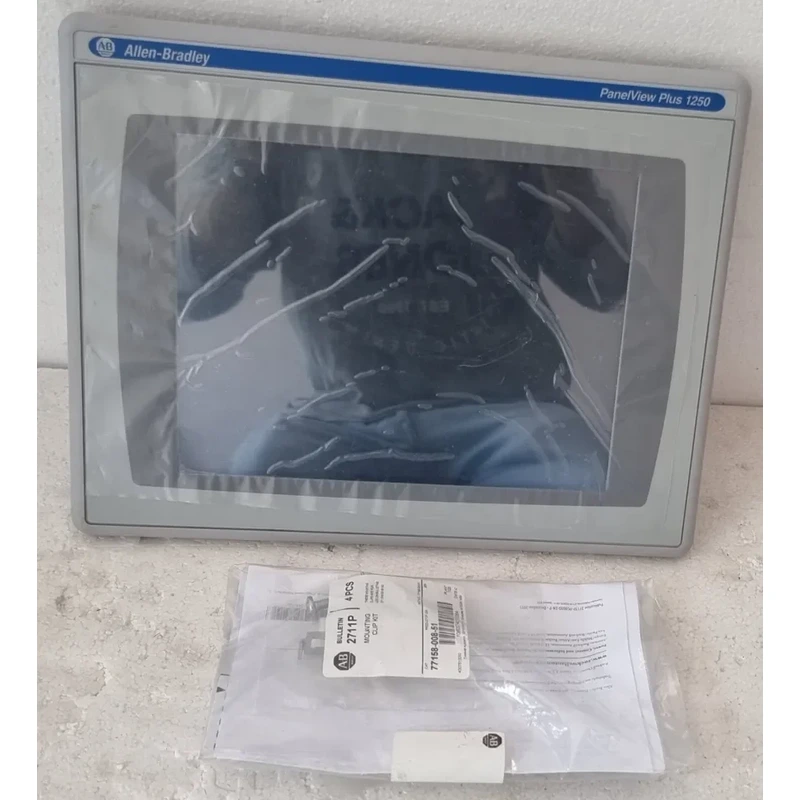

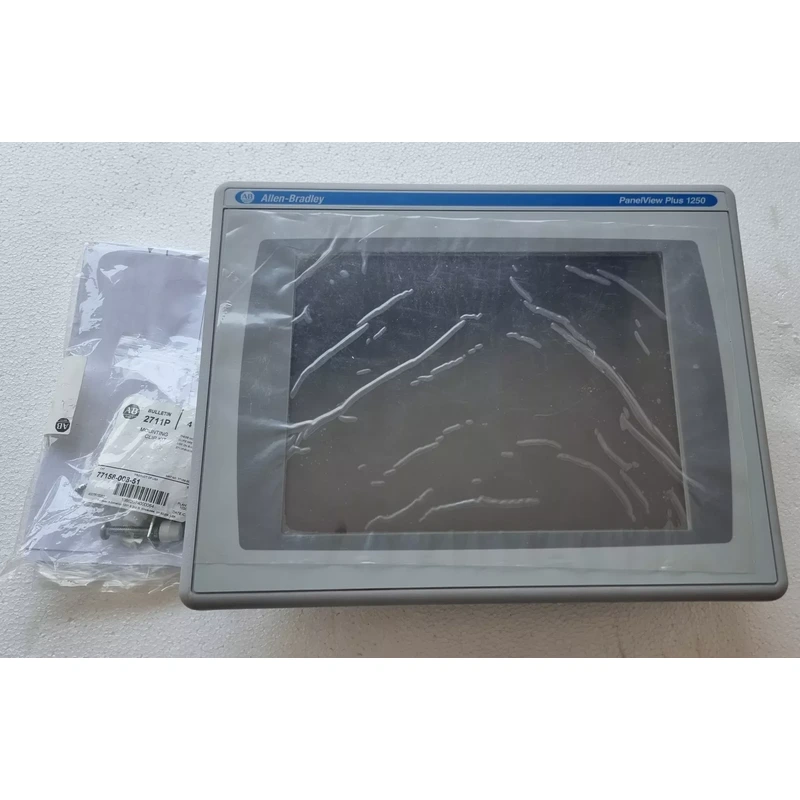

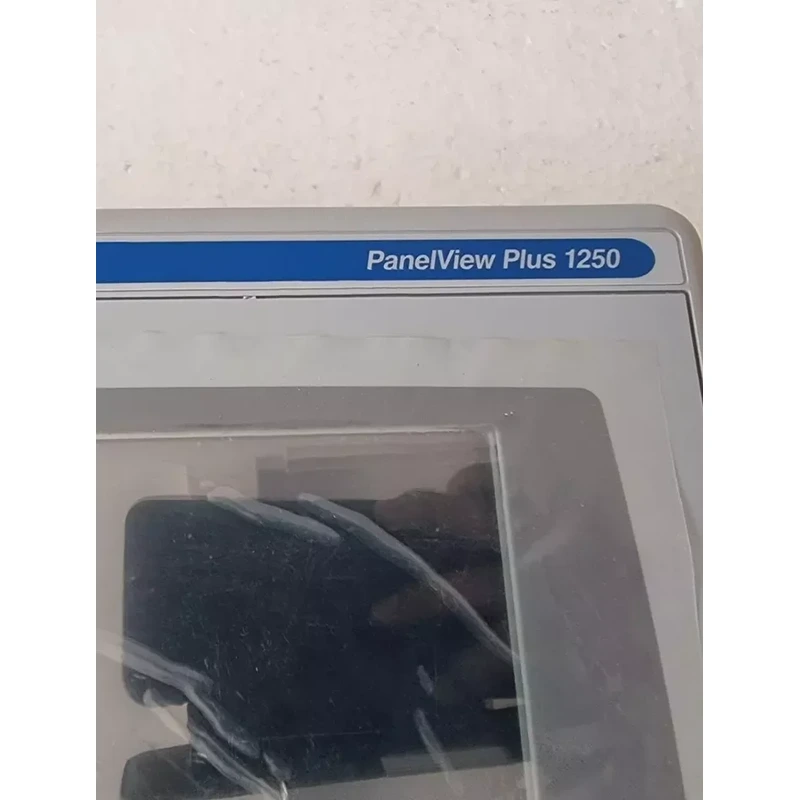

• Model: 2711P-T12C4D8 (PanelView Plus 1250)

• Terminal Assembly: 2711P-RP8D (pre-wired)

• Display: 12.1″ TFT LCD

• Resolution: 800 x 600 (SVGA)

• Touchscreen: Analog resistive (single-touch)

• Brightness: 400 cd/m² (adjustable)

Hardware Configuration

• Processor: 1.0GHz dual-core ARM Cortex-A9

• Memory:

  • 2GB RAM

  • 4GB Flash (internal)

  • SD card slot (up to 32GB)

• Real-Time Clock: Battery-backed

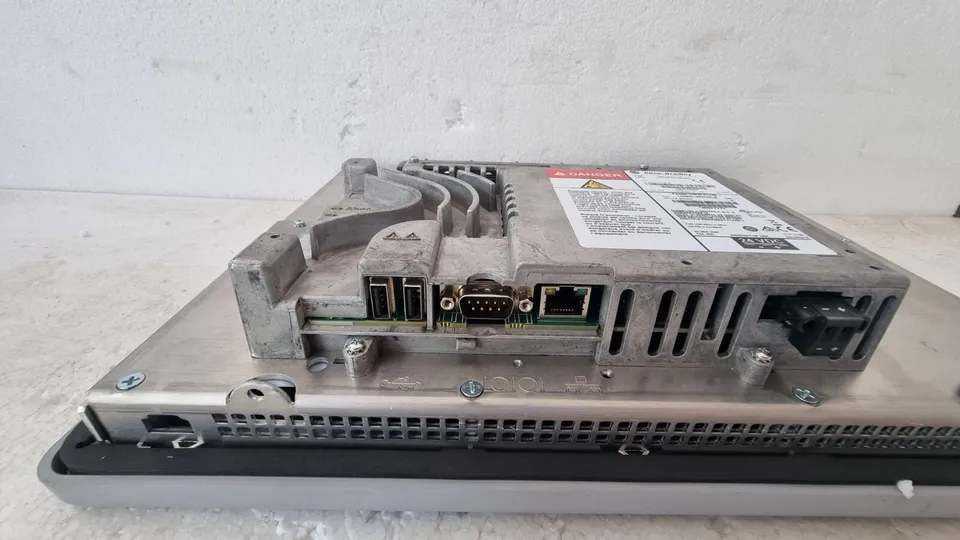

Communication Interfaces

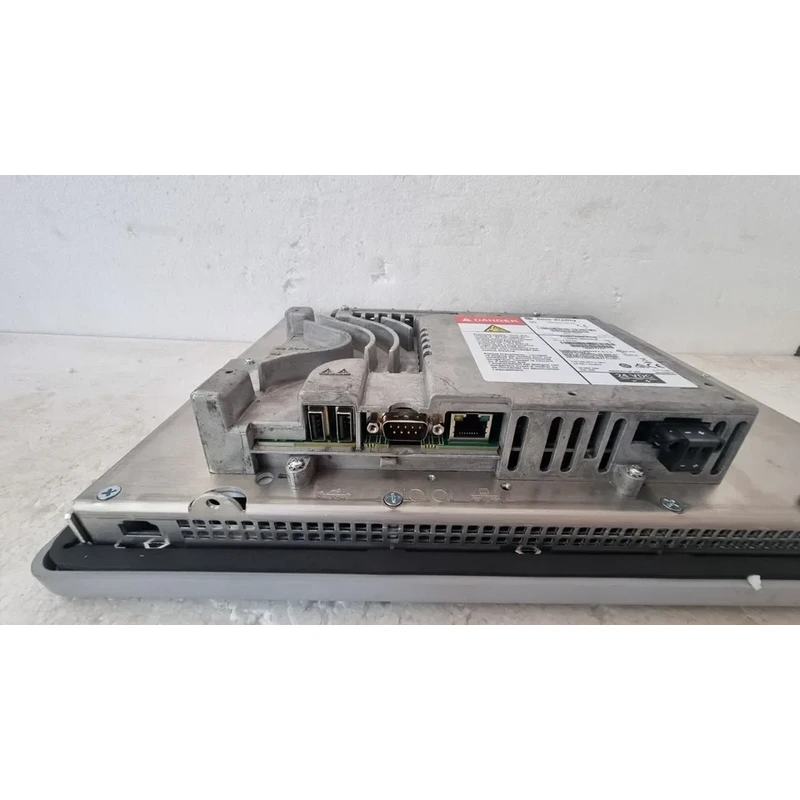

• Built-in Ports:

  • 2x Ethernet (10/100/1000 Mbps)

  • 1x RS-232 (DF1)

  • 1x RS-485 (DH-485)

• Expansion:

  • 1x USB 2.0 host

  • Optional communication modules

Electrical Specifications

• Input Voltage: 24VDC (20.4-28.8V)

• Current Consumption: 1.2A @ 24VDC (28.8W)

• Inrush Current: 15A for 20ms

• Protection: 24V surge suppression

Environmental Ratings

• Operating Temp: 0°C to 50°C (32°F to 122°F)

• Storage Temp: -40°C to 70°C (-40°F to 158°F)

• Humidity: 5-95% non-condensing

• Vibration: 5-500Hz, 2g sine wave

• Enclosure: NEMA 4X/12 (IP65)

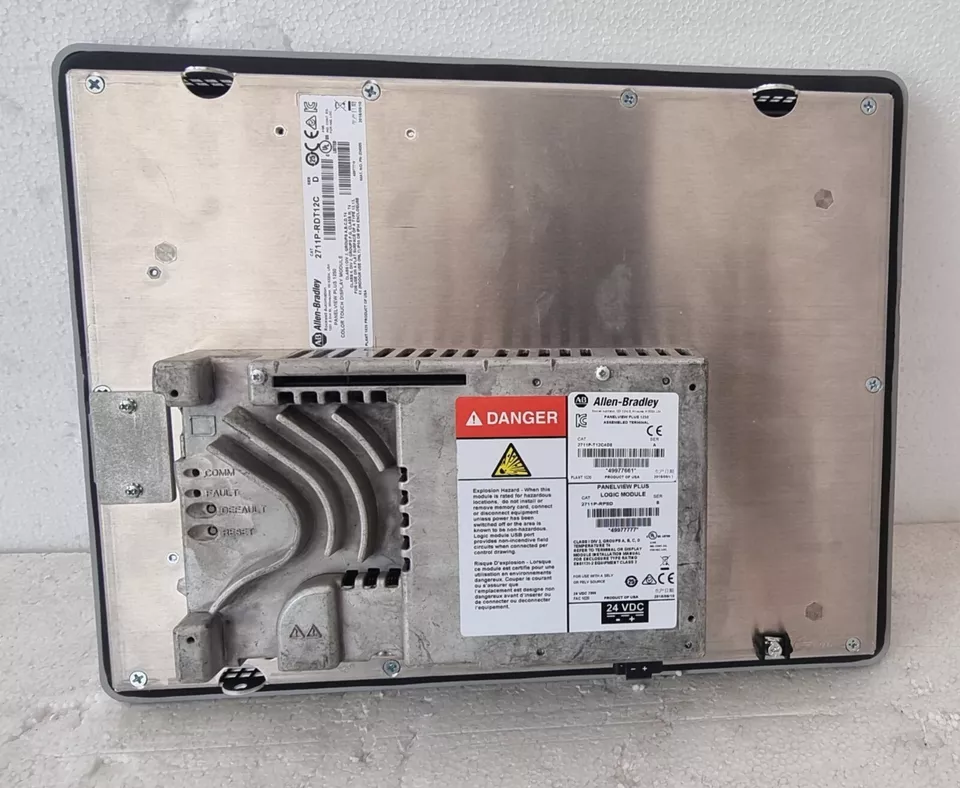

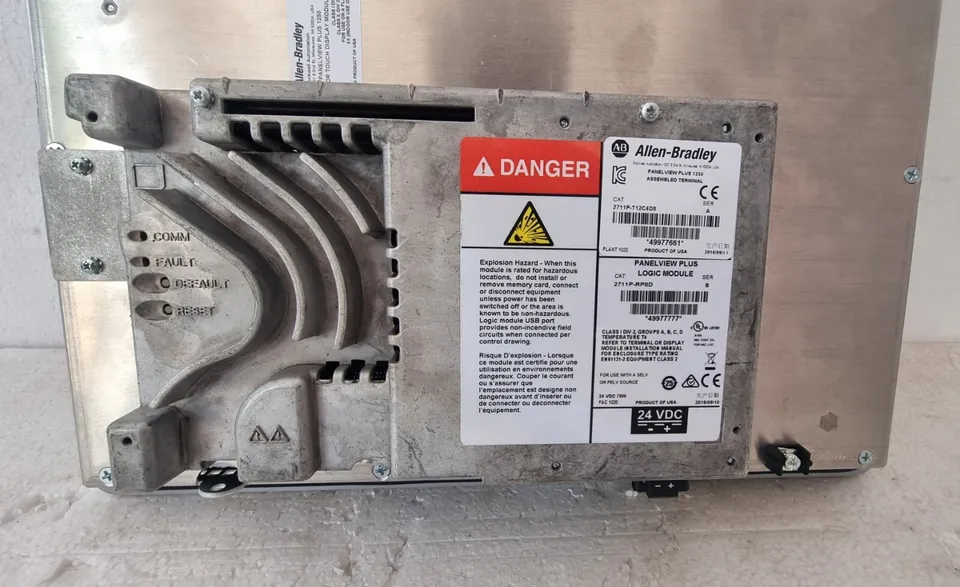

Terminal Assembly (2711P-RP8D)

• Wiring:

  • 8-position removable terminal block

  • 24VDC power input

  • Ethernet pass-through

  • I/O connections

• Features:

  • Strain relief for cables

  • Field-wireable design

  • LED status indicators

Software Features

• Development Environment: FactoryTalk View ME

• Runtime: Windows Embedded Compact 7

• Supported Protocols:

  • EtherNet/IP

  • Modbus TCP/RTU

  • DF1/DH-485

  • OPC UA

Mechanical Details

• Display Area: 246 x 184mm (9.7 x 7.2″)

• Overall Dimensions: 325 x 247 x 63mm (12.8 x 9.7 x 2.5″)

• Weight: 3.9kg (8.6 lbs)

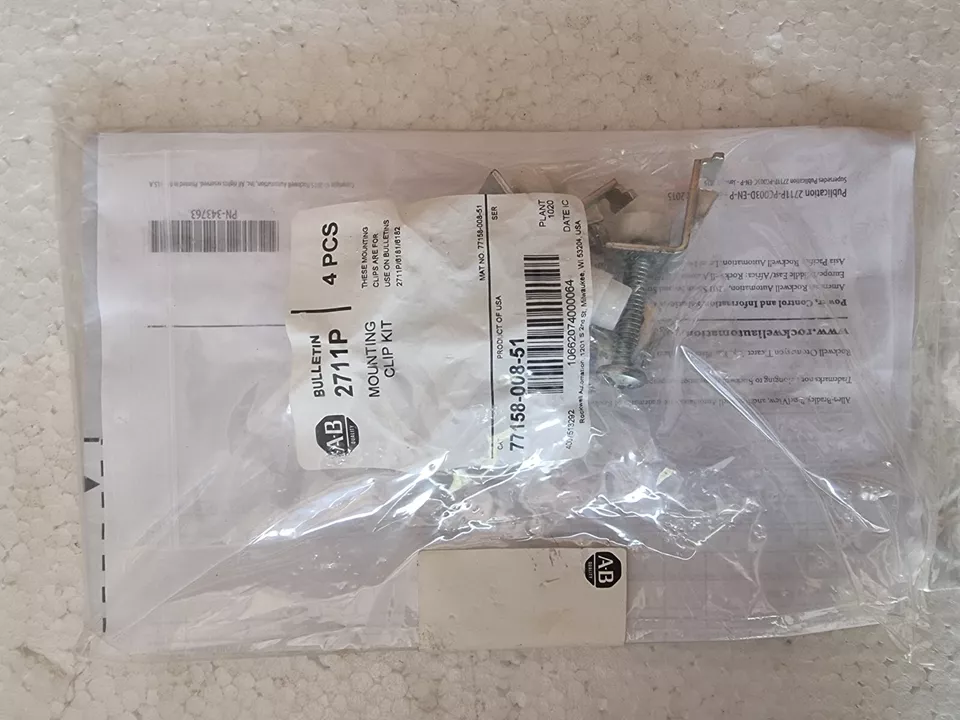

• Mounting: Panel mount with clamps

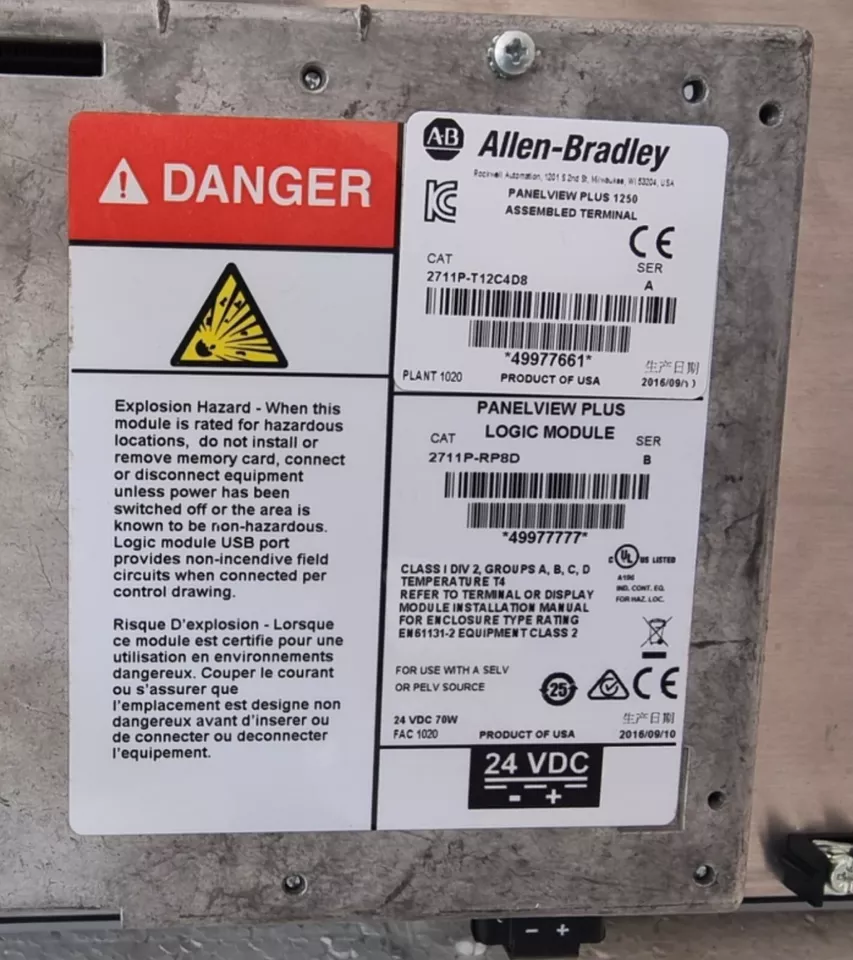

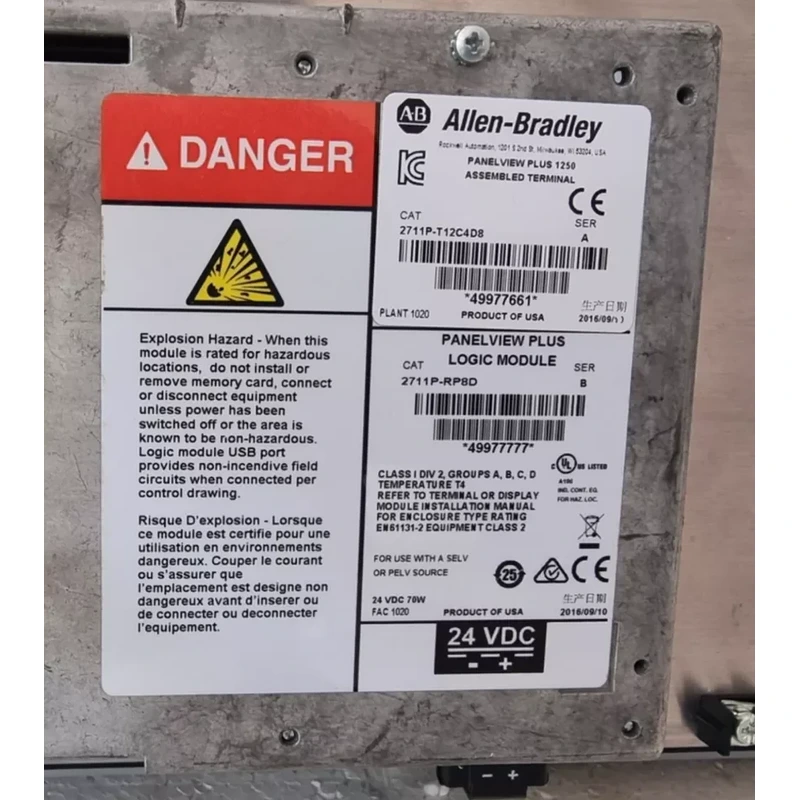

Ordering Information

• 2711P-T12C4D8 indicates:

  • 12.1″ display

  • Color touchscreen

  • 24VDC power

• 2711P-RP8D is the terminal assembly kit

Certifications

• Safety: UL 508, CSA 22.2

• EMC: EN 61326-1

• Marine: ABS, DNV-GL, LR
