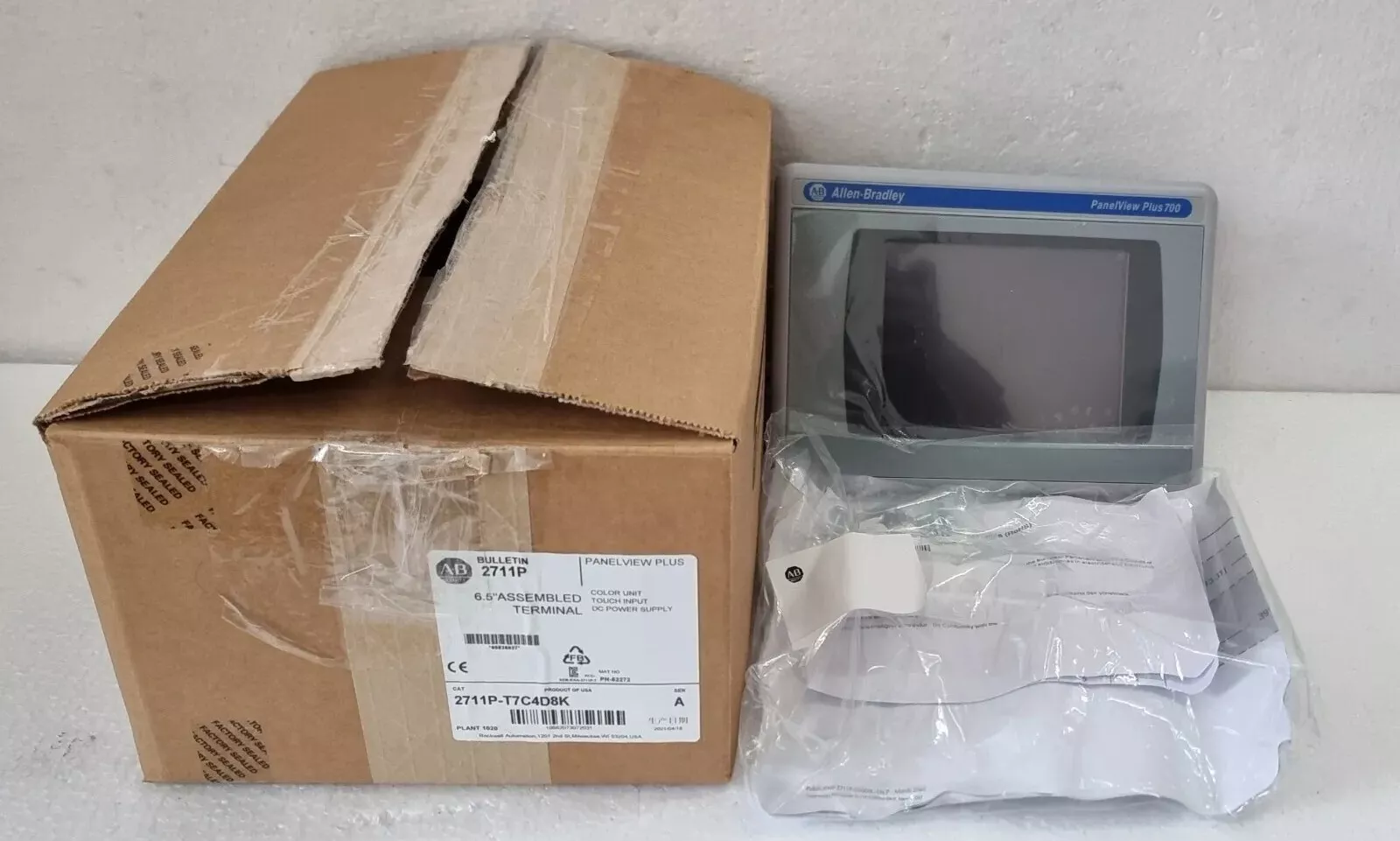

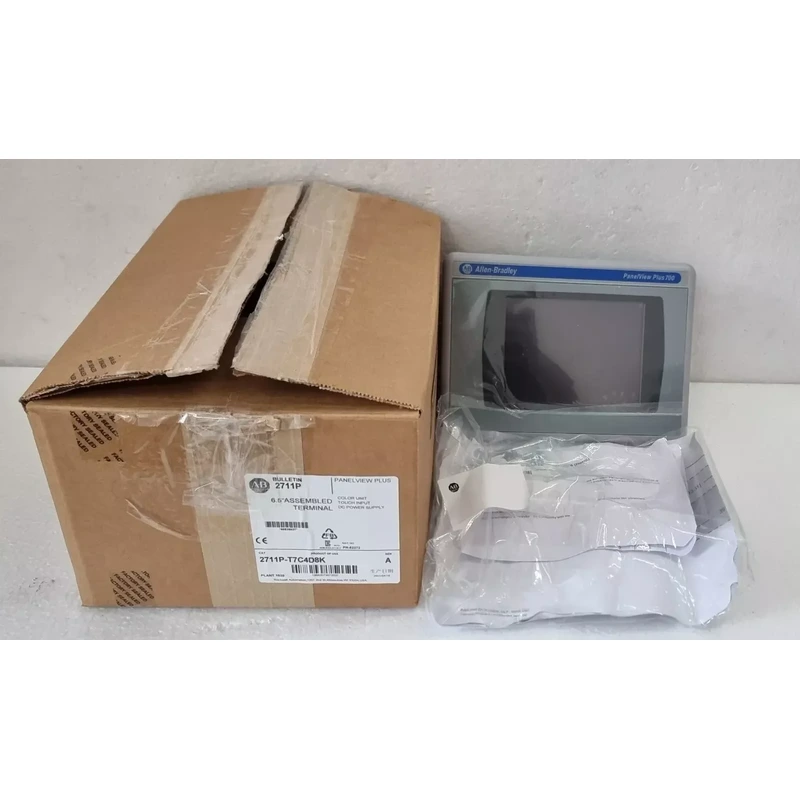

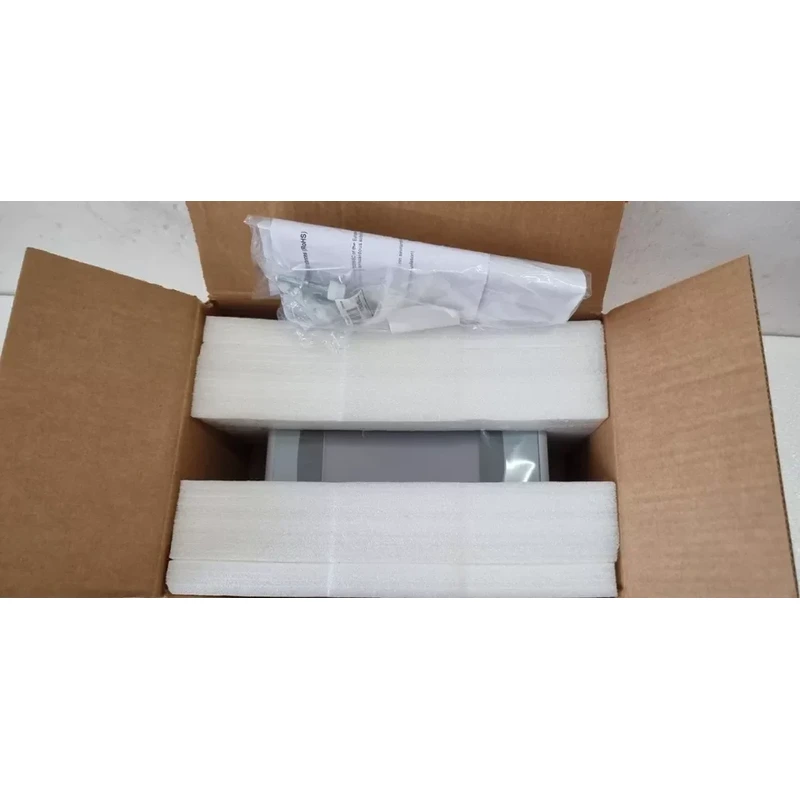

Condition:New – Open box

Core Specifications

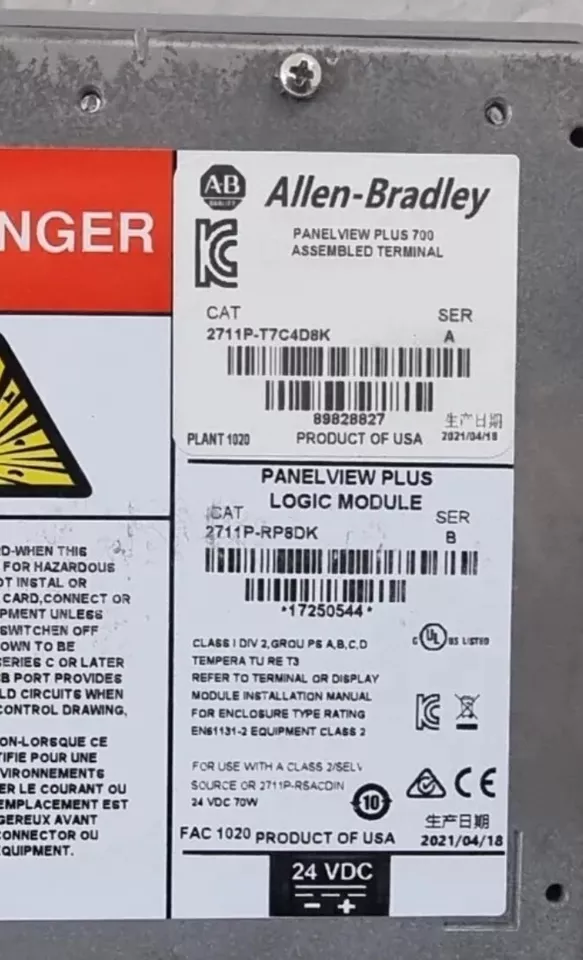

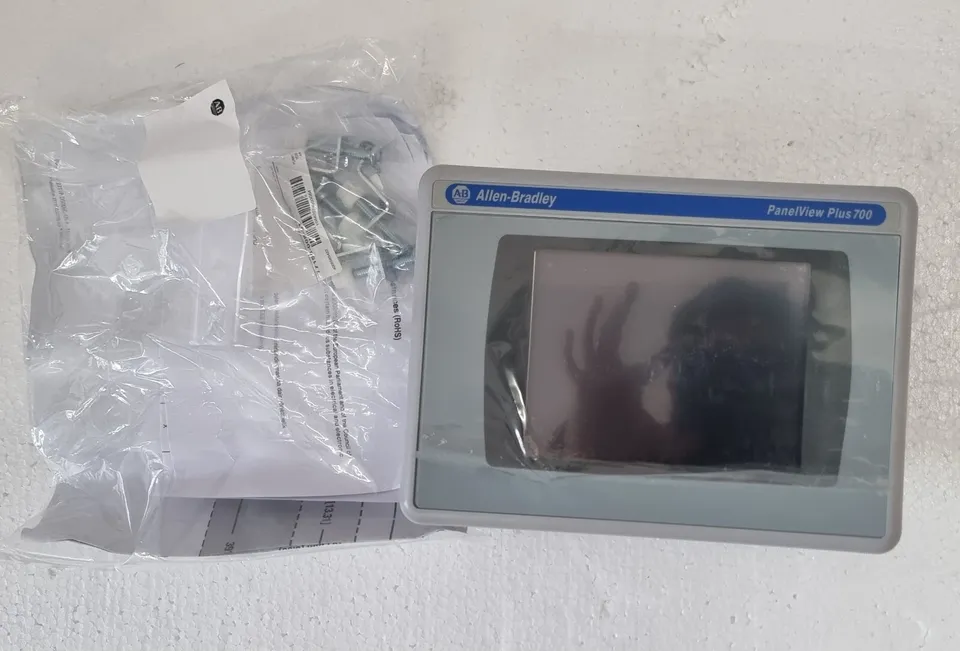

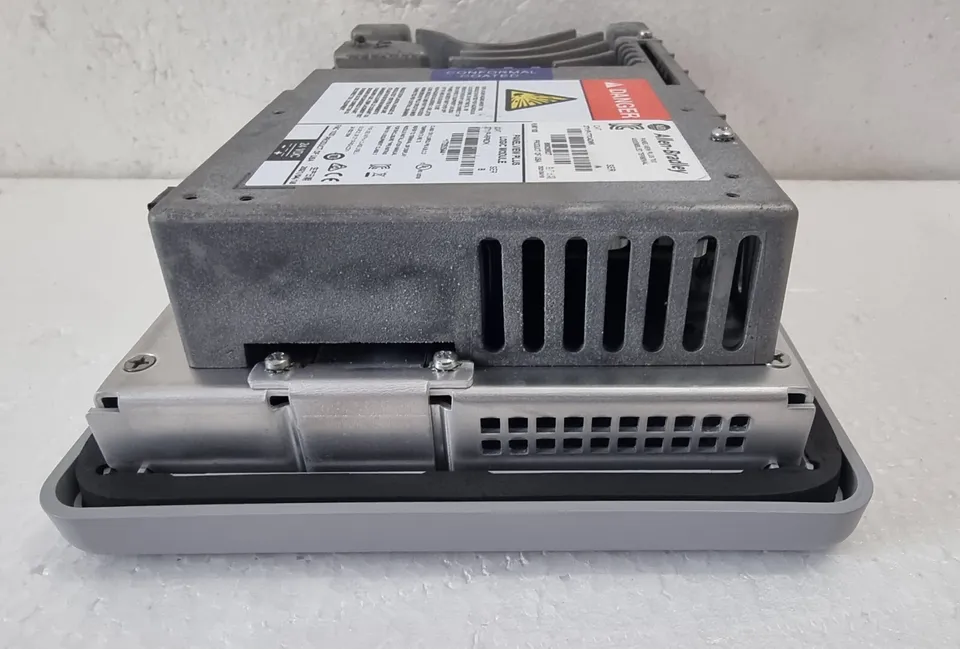

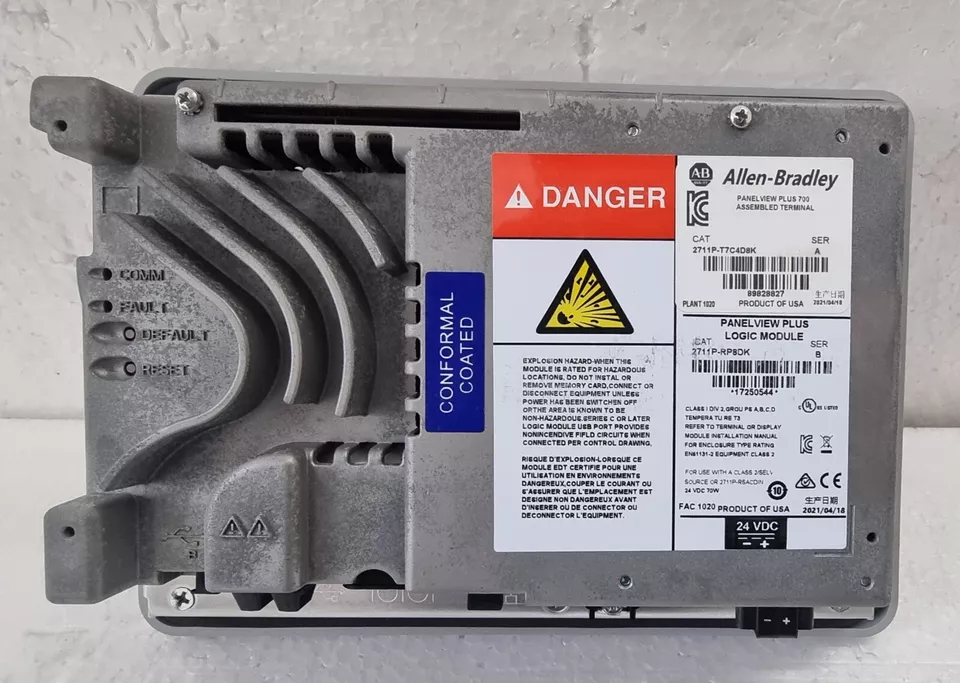

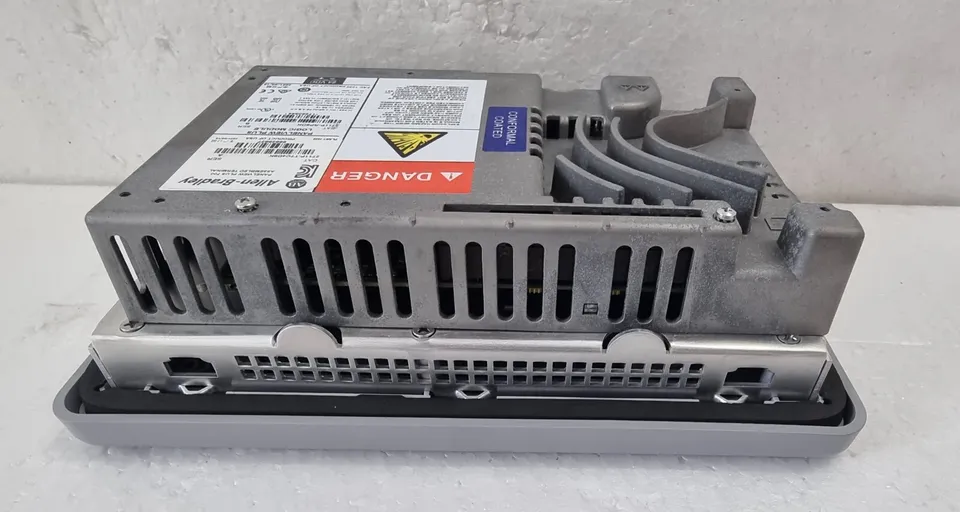

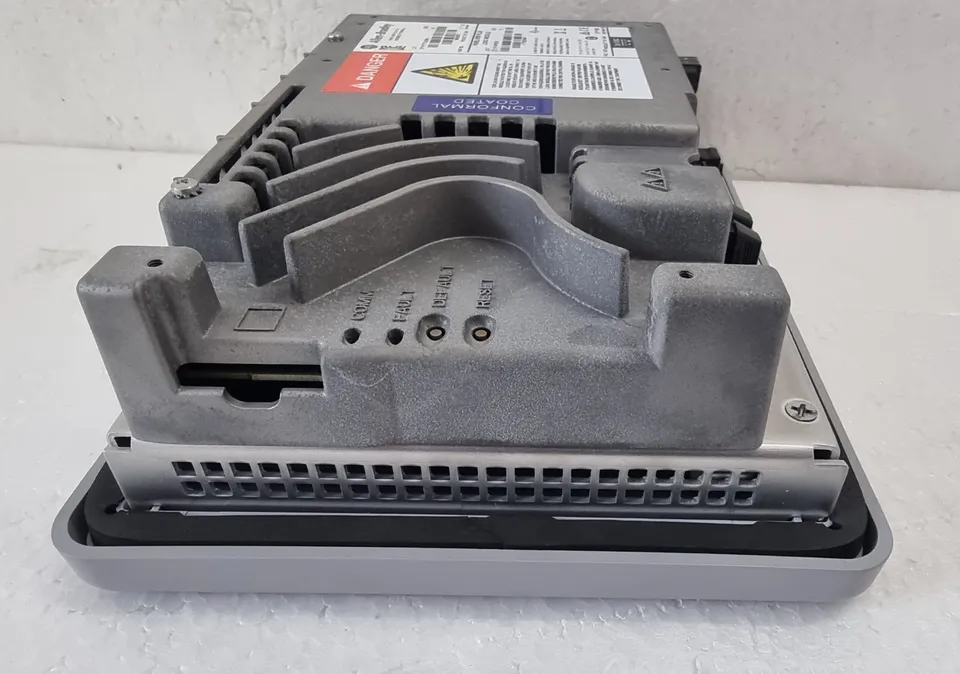

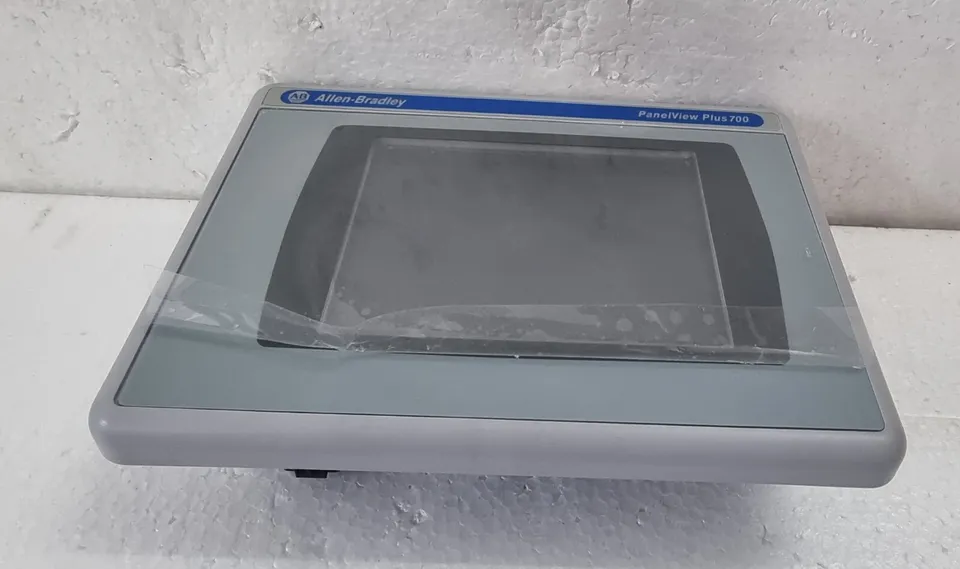

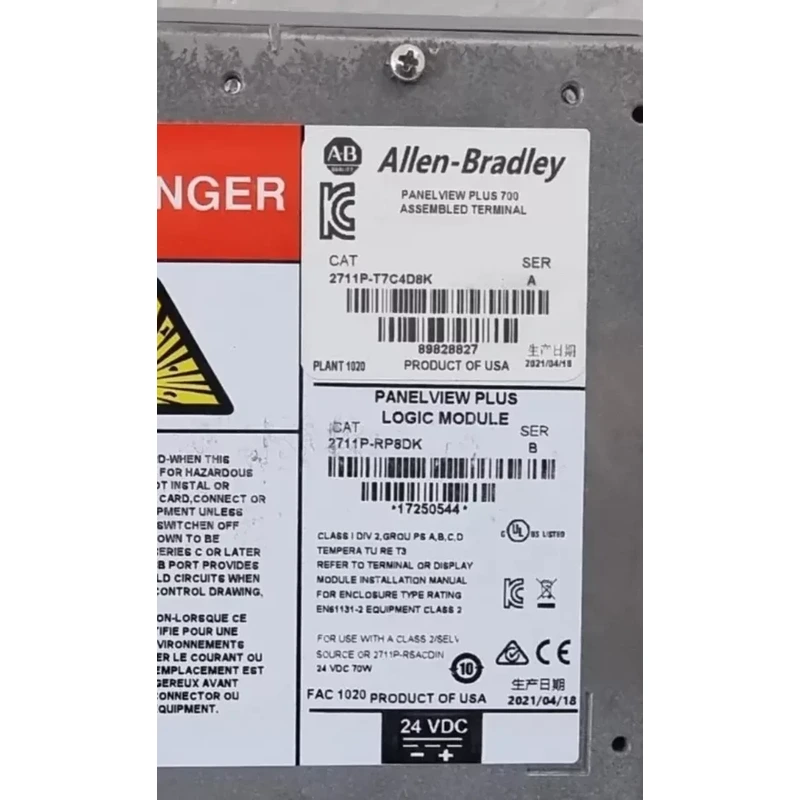

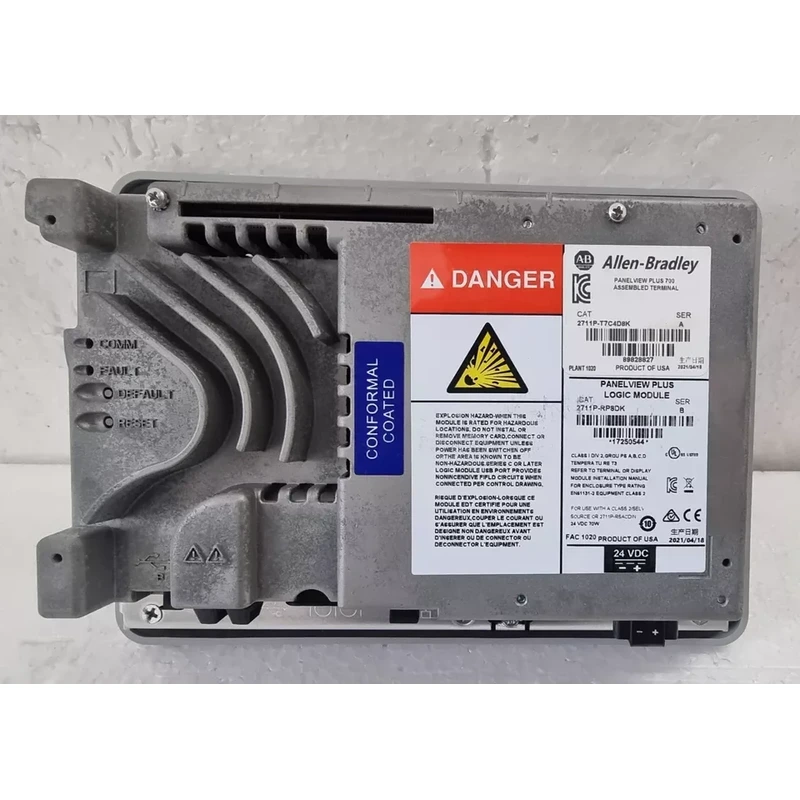

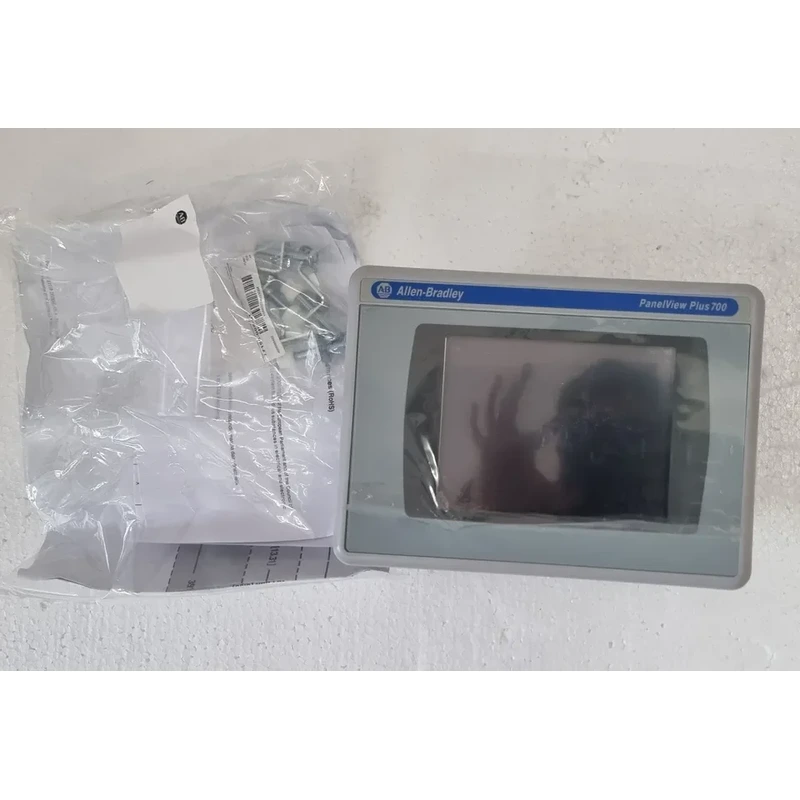

• Model: 2711P-T7C4D8K (PanelView Plus 700)

• Terminal Assembly: 2711P-RP8DK (pre-wired kit)

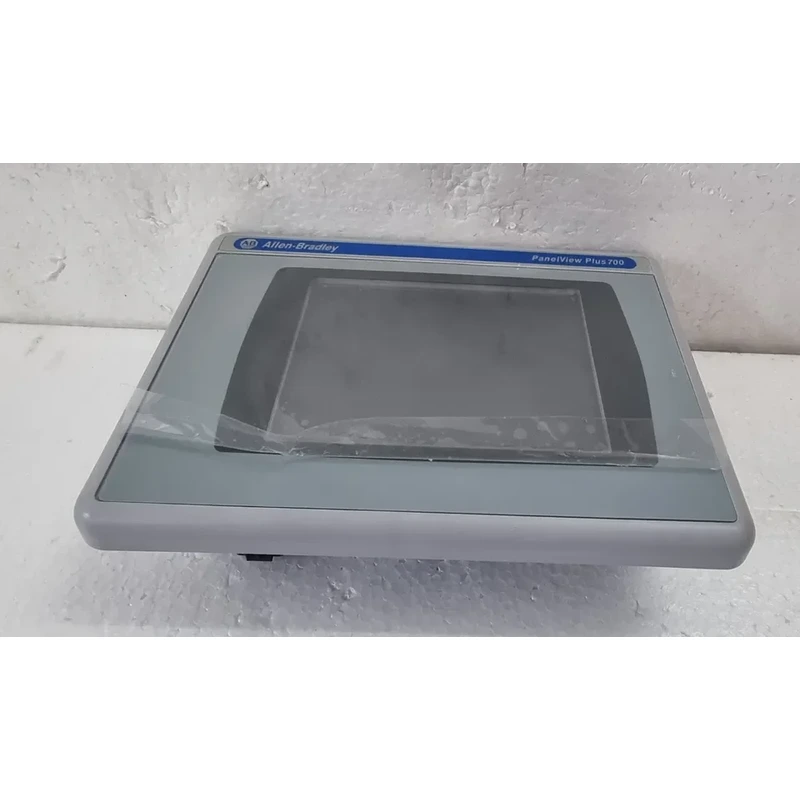

• Display: 7″ TFT LCD

• Resolution: 800 x 480 (WVGA)

• Touchscreen: Analog resistive (single-touch)

• Brightness: 400 cd/m² (adjustable)

Hardware Configuration

• Processor: 800MHz ARM Cortex-A8

• Memory:

  • 512MB RAM

  • 2GB Flash (internal)

  • SD card slot (up to 32GB)

• Real-Time Clock: Battery-backed (CR2032)

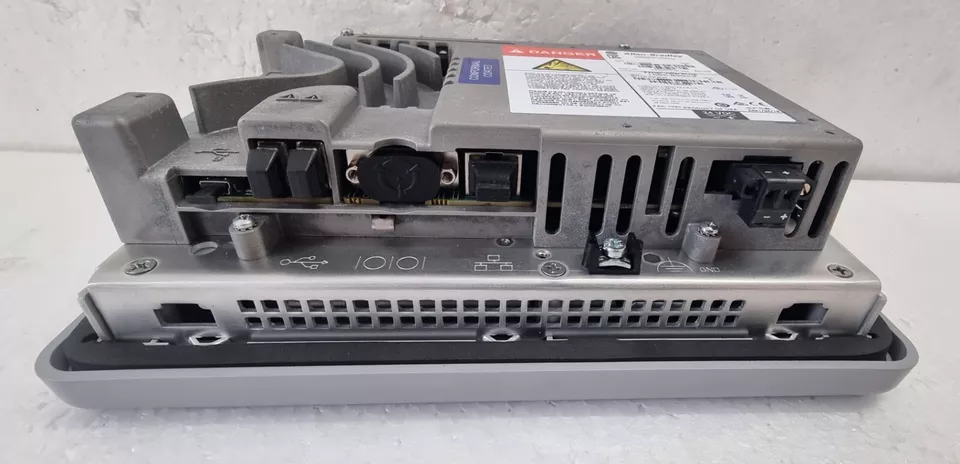

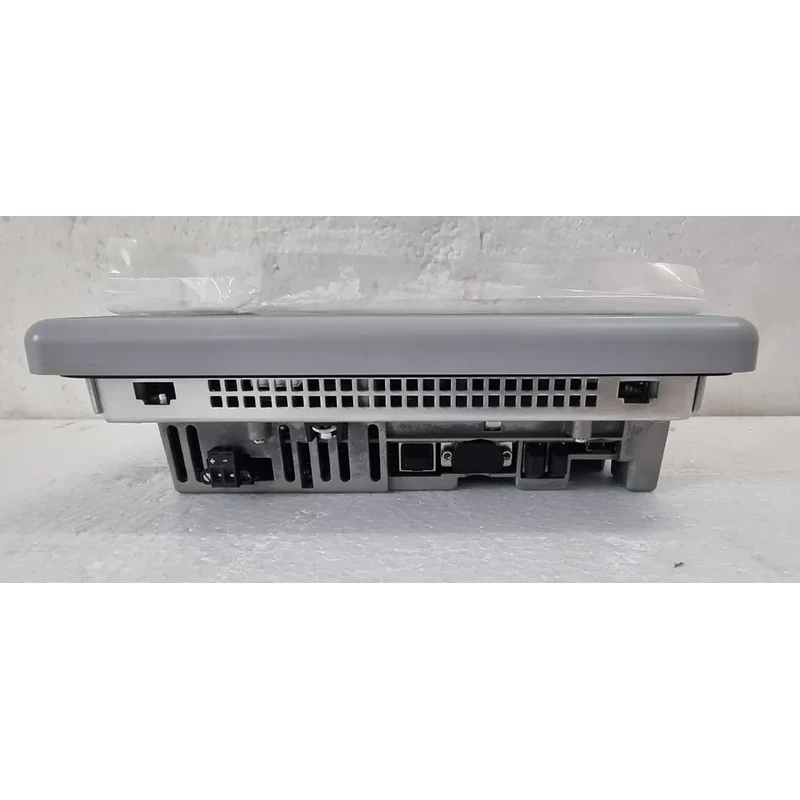

Communication Interfaces

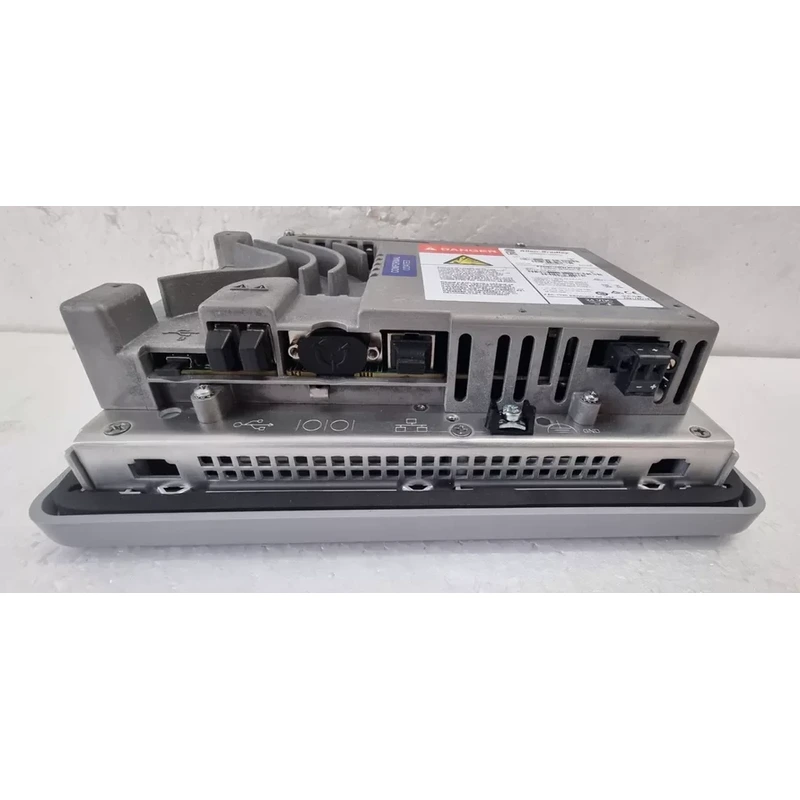

• Built-in Ports:

  • 1x Ethernet (10/100 Mbps)

  • 1x RS-232 (DF1)

  • 1x RS-485 (DH-485)

• Expansion:

  • 1x USB 2.0 host

  • Optional communication modules

Electrical Specifications

• Input Voltage: 24VDC (20.4-28.8V)

• Current Consumption: 0.8A @ 24VDC (19.2W)

• Inrush Current: 10A for 20ms

• Protection: 24V surge suppression

Terminal Assembly (2711P-RP8DK)

• Wiring:

  • 8-position removable terminal block

  • 24VDC power input

  • Ethernet pass-through

  • I/O connections

• Features:

  • Keyed connector for secure wiring

  • LED status indicators

  • Strain relief

Environmental Ratings

• Operating Temp: 0°C to 50°C (32°F to 122°F)

• Storage Temp: -40°C to 70°C (-40°F to 158°F)

• Humidity: 5-95% non-condensing

• Vibration: 5-500Hz, 2g sine wave

• Enclosure: NEMA 4X/12 (IP65)

Software Features

• Development Environment: FactoryTalk View ME

• Runtime: Windows Embedded Compact 7

• Supported Protocols:

  • EtherNet/IP

  • Modbus TCP/RTU

  • DF1/DH-485
