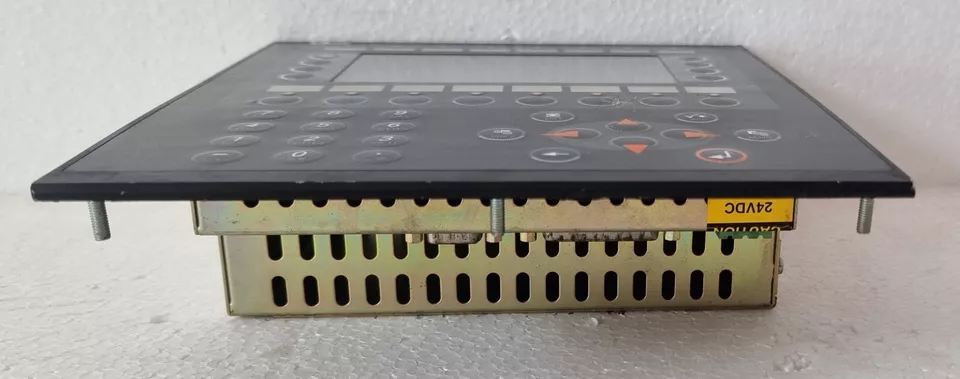

“USED BUT LOOKS LIKE NEW , PROFESSIONALLY TESTED AND EVERYTHING WORKING FINE !”

Core Specifications

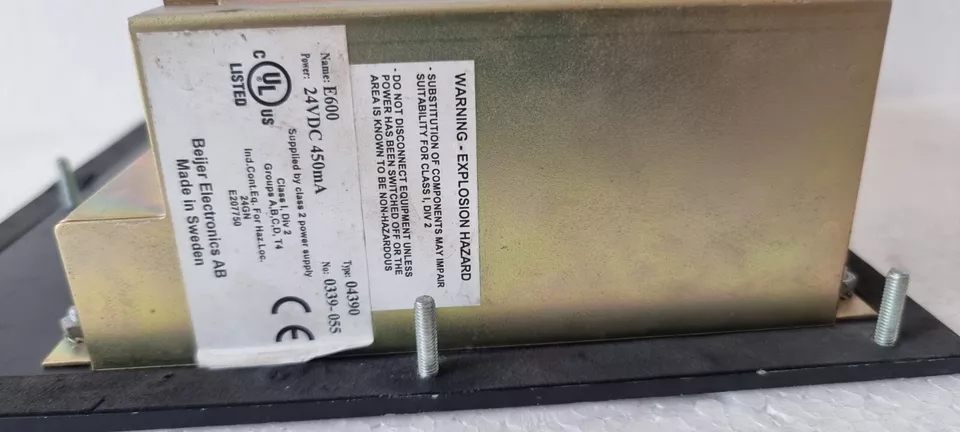

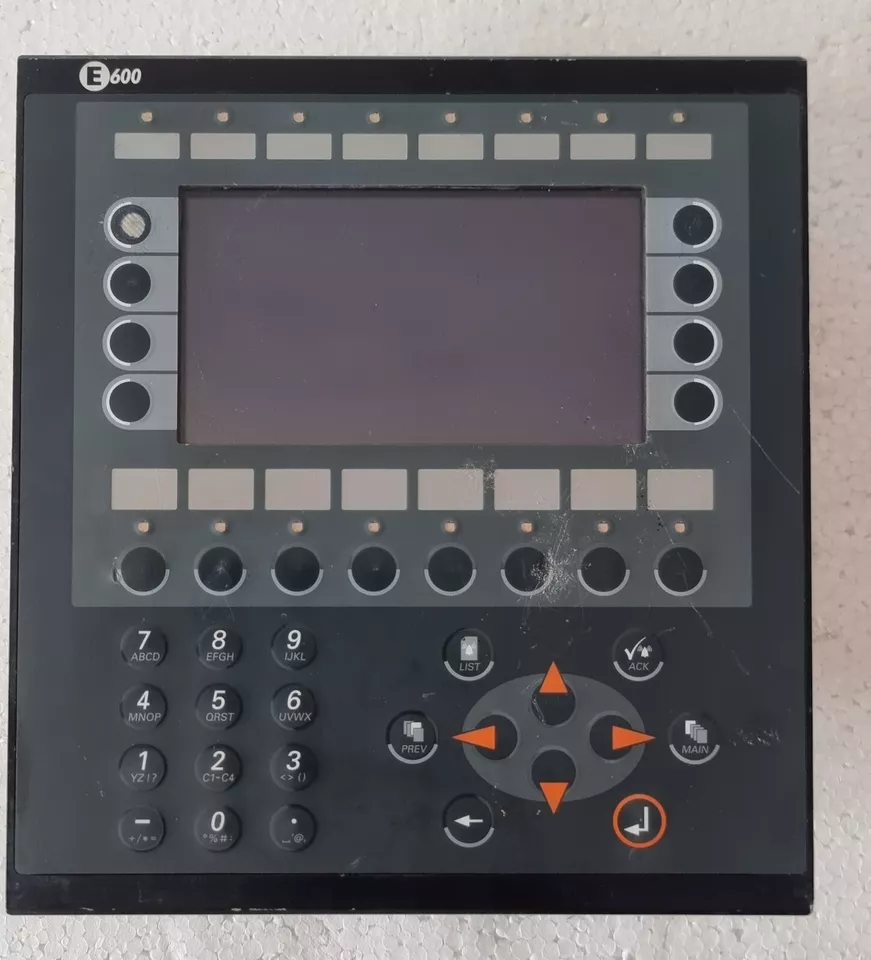

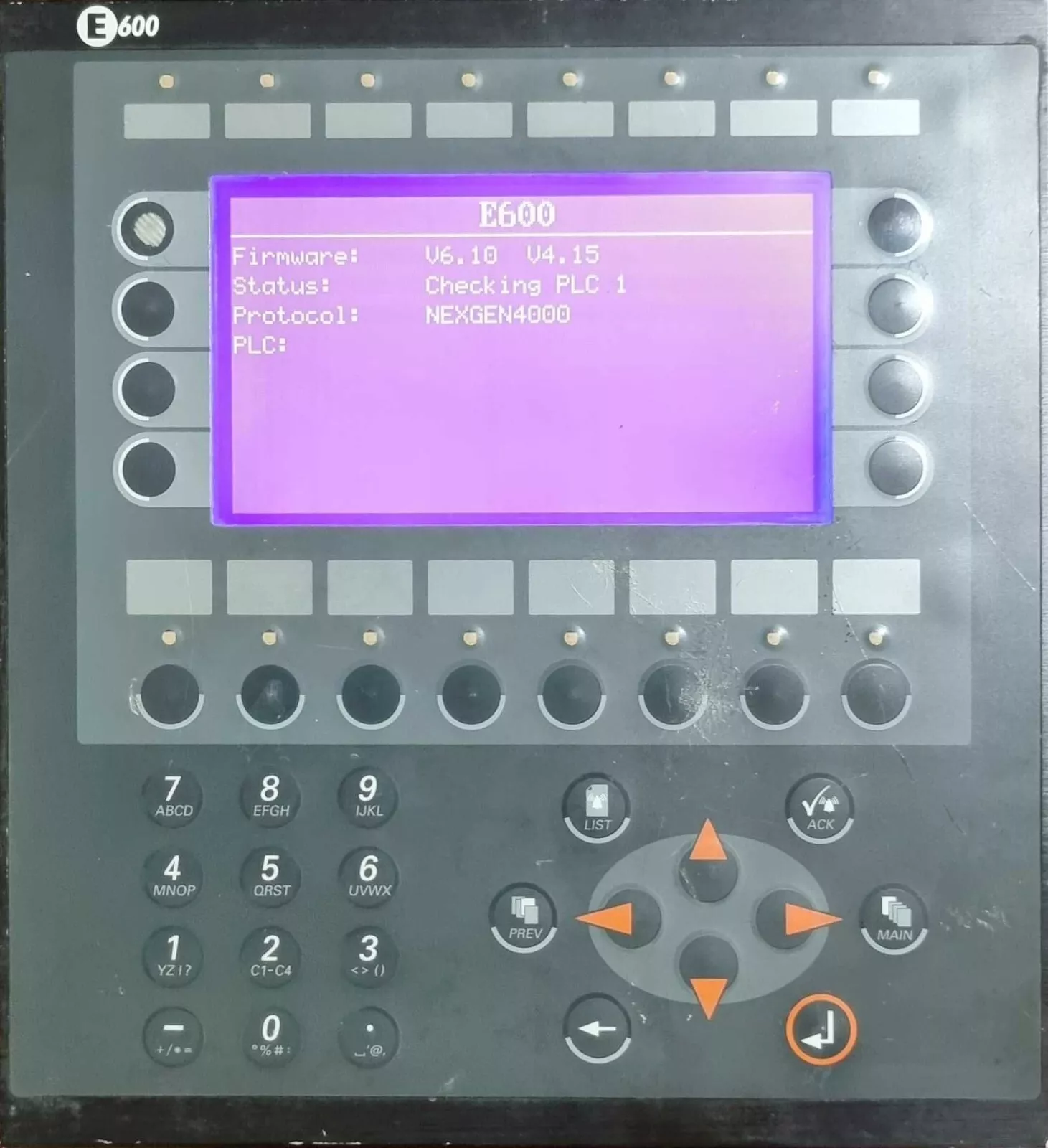

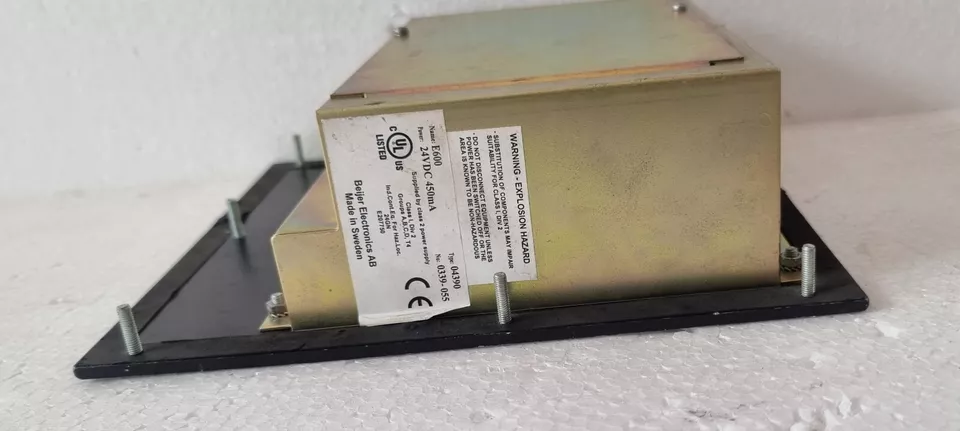

• Model Number: E600 (Type 04390)

• Display Type: 6.5″ TFT color LCD

• Resolution: 640 x 480 pixels (VGA)

• Touch Technology: Analog resistive (single-touch)

• Brightness: 400 cd/m² (adjustable)

• Viewing Angle: 160° horizontal/vertical

Power Requirements

• Input Voltage: 24VDC ±10%

• Current Consumption: 450mA typical (10.8W)

• Inrush Current: 1.5A for 20ms

• Backup Power: Requires minimum 18VDC for stable operation

Hardware Configuration

• Processor: 400MHz RISC CPU

• Memory Configuration:

  • Flash: 128MB (for application storage)

  • RAM: 64MB DDR

  • SD Card Slot: Supports up to 32GB (optional)

• Real-Time Clock: Battery-backed (CR2032)

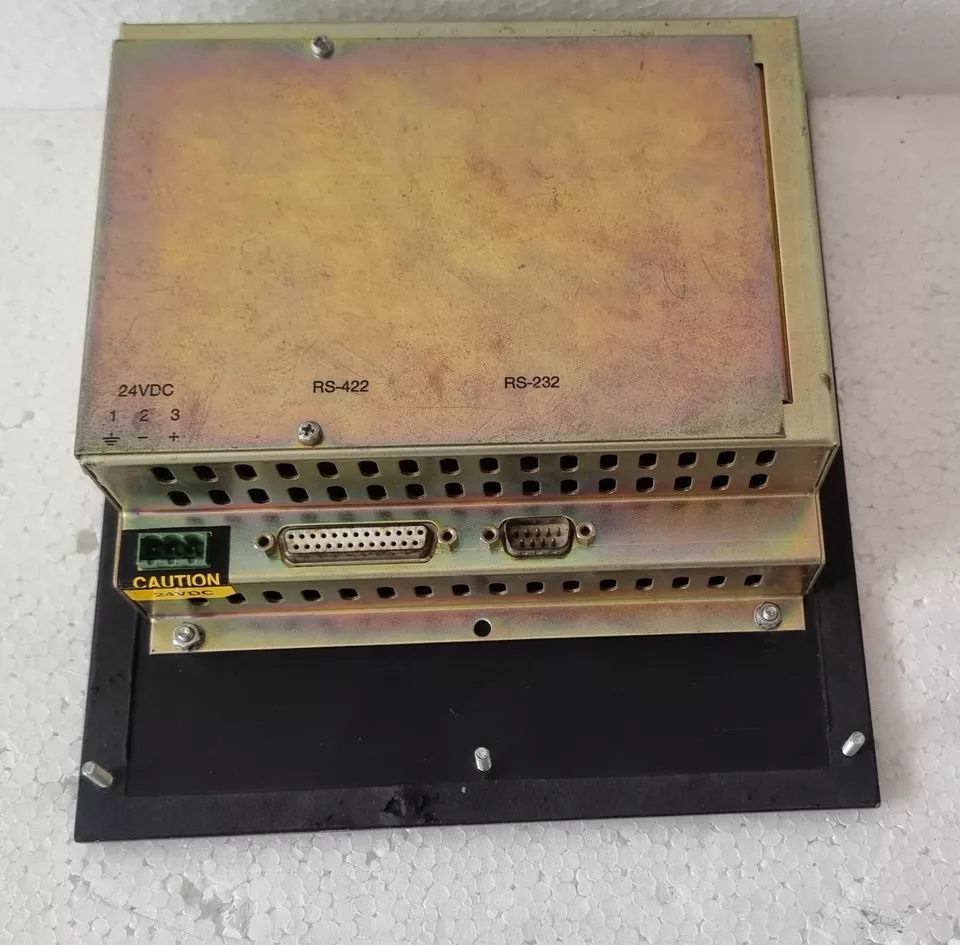

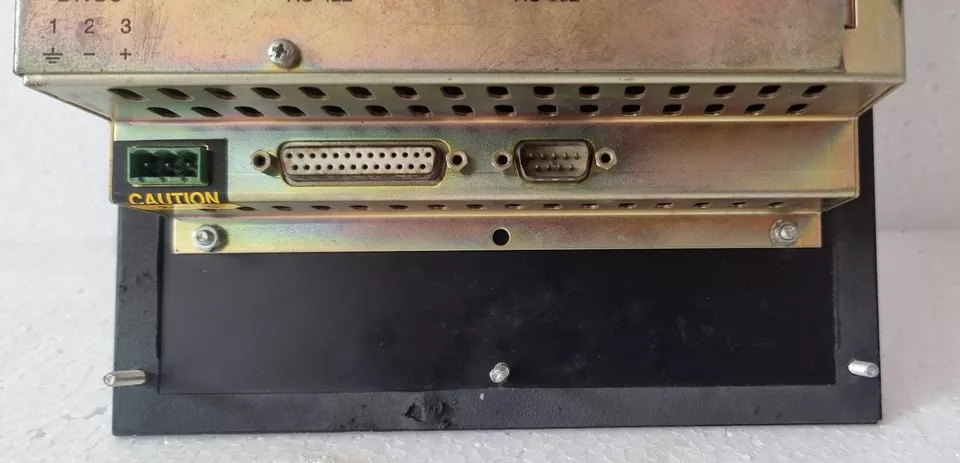

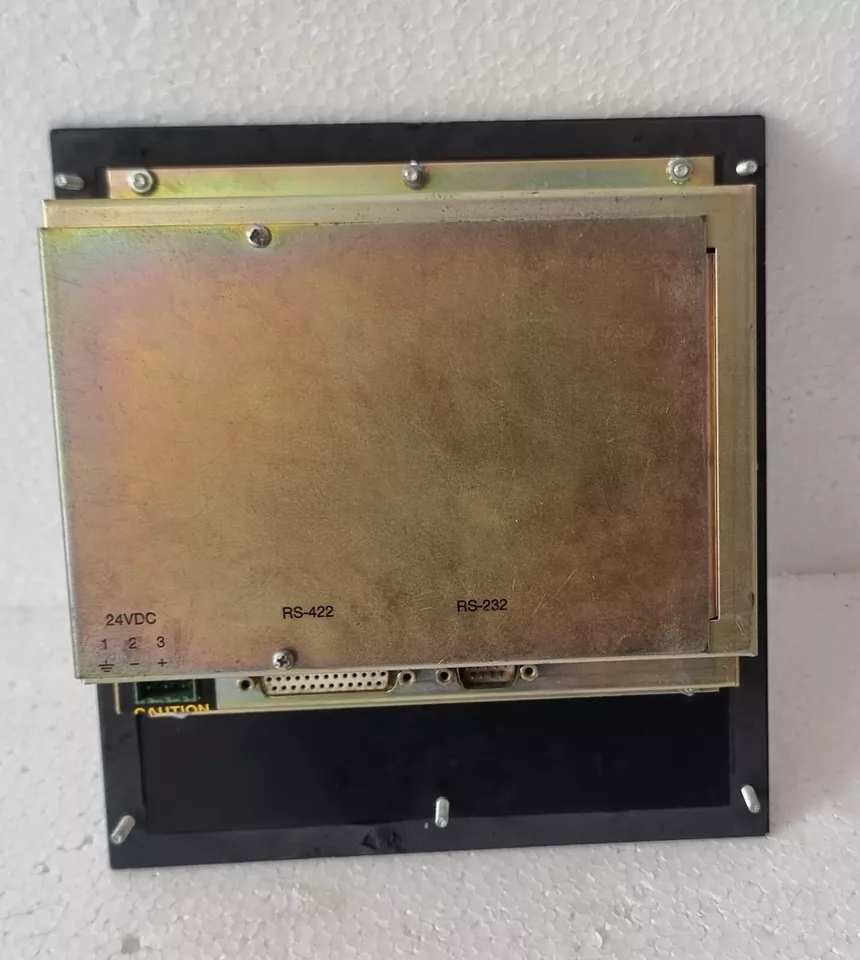

Communication Interfaces

• Serial Ports:

  • 1 x RS-232 (DB9 male)

  • 1 x RS-485 (terminal block, 2-/4-wire configurable)

• Ethernet: 10/100Base-T (RJ45)

• USB: 1 x USB 2.0 host port (Type A)

Environmental Specifications

• Operating Temperature: 0°C to +50°C (32°F to 122°F)

• Storage Temperature: -20°C to +70°C (-4°F to 158°F)

• Humidity: 10-90% non-condensing

• Vibration Resistance: 1G @ 10-150Hz (IEC 60068-2-6)

• Shock Resistance: 10G @ 11ms (IEC 60068-2-27)

• Protection Rating: IP65 front panel (NEMA 4X)

Mechanical Details

• Panel Cutout Dimensions: 192 x 144mm (7.56 x 5.67″)

• Overall Dimensions: 202 x 151 x 48mm (7.95 x 5.94 x 1.89″)

• Weight: 900g (1.98 lbs)

• Mounting: Panel mount with front bezel clamp

Software Features

• Development Environment: iX Developer v1.5+

• Runtime System: Windows CE 6.0

• Programming Languages:

  • Structured text

  • VBA scripting

  • C-like expressions

• Supported Protocols:

  • Modbus RTU/TCP

  • Siemens S7 (via Ethernet)

  • Allen-Bradley DF1

  • Omron Host Link

  • Mitsubishi MELSEC

Application Capabilities

• Graphic Objects: 500+ per screen

• Max Screens: 500

• Alarm Capacity: 10,000 events with time stamp

• Data Logging: CSV format (SD card storage)

• Recipe Handling: 1000 recipes with 100 parameters each

Ordering Information

• Type 04390 indicates:

  • 24VDC power supply

  • Resistive touchscreen

  • Basic communication package

  • No integrated PLC

Certifications

• EMC: EN 61000-6-2, EN 61000-6-4

• Safety: UL/cUL 508, CE compliant

• Marine: DNV-GL, ABS, LR (optional)
