Condition:Used

Key Features:

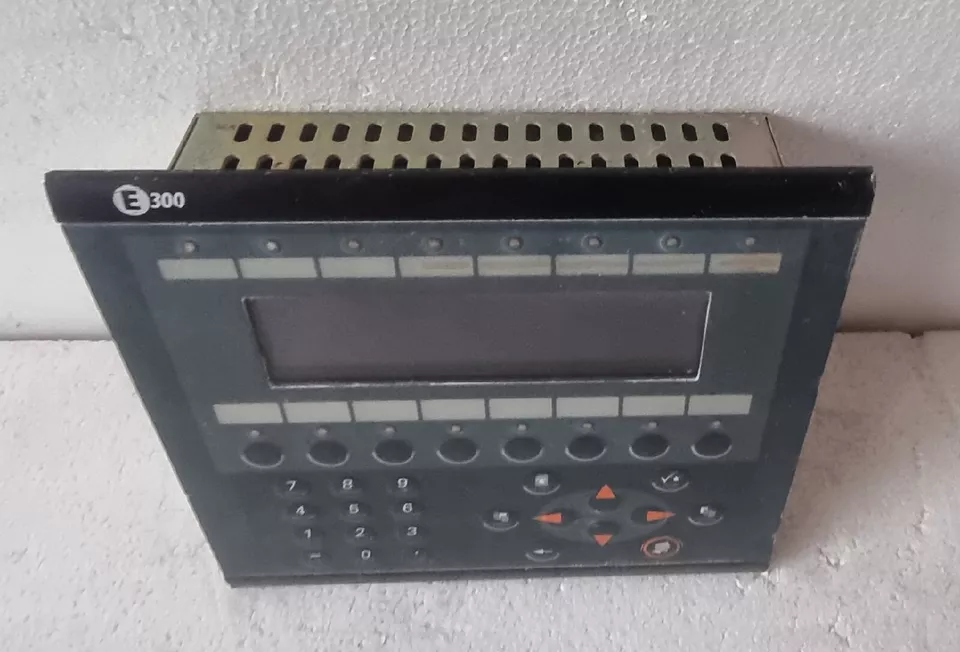

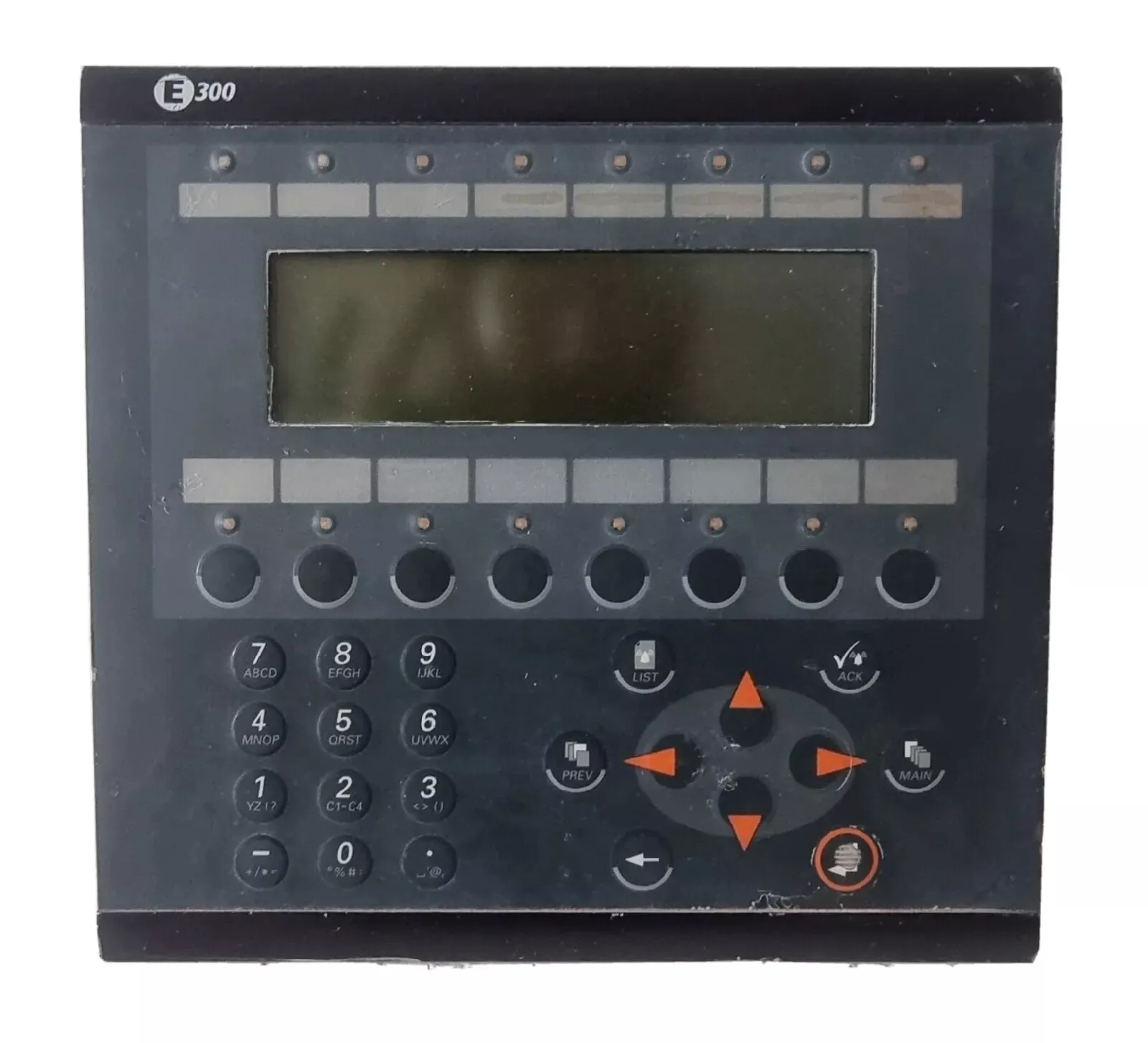

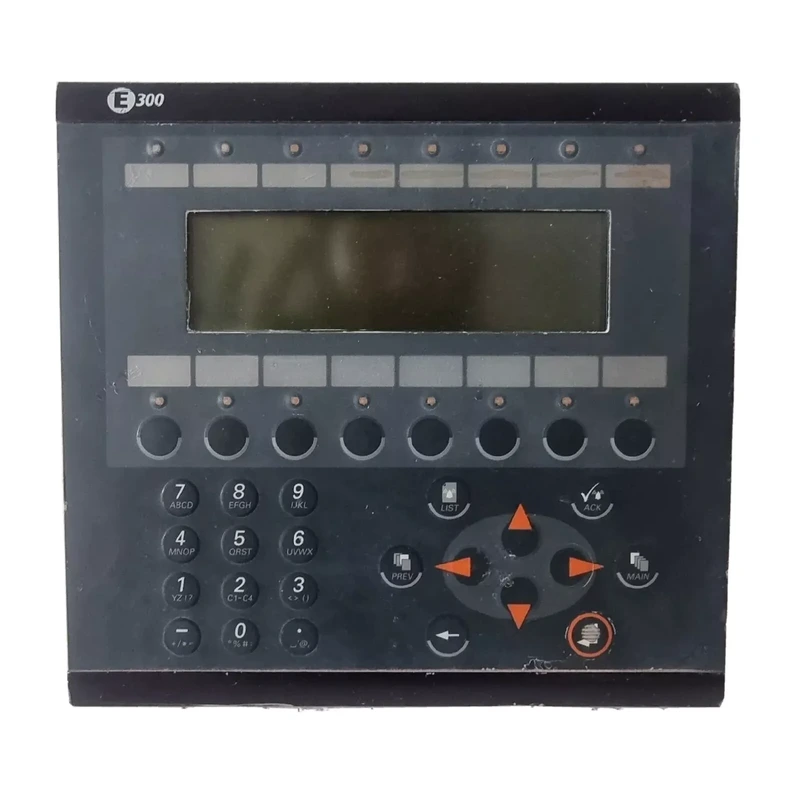

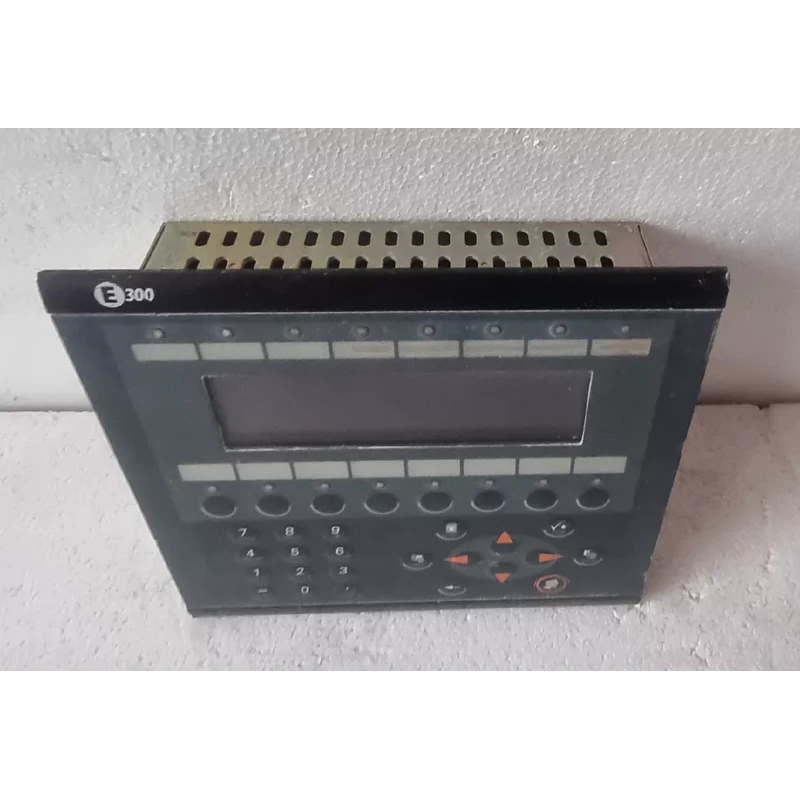

• Model: E300 (02750D)

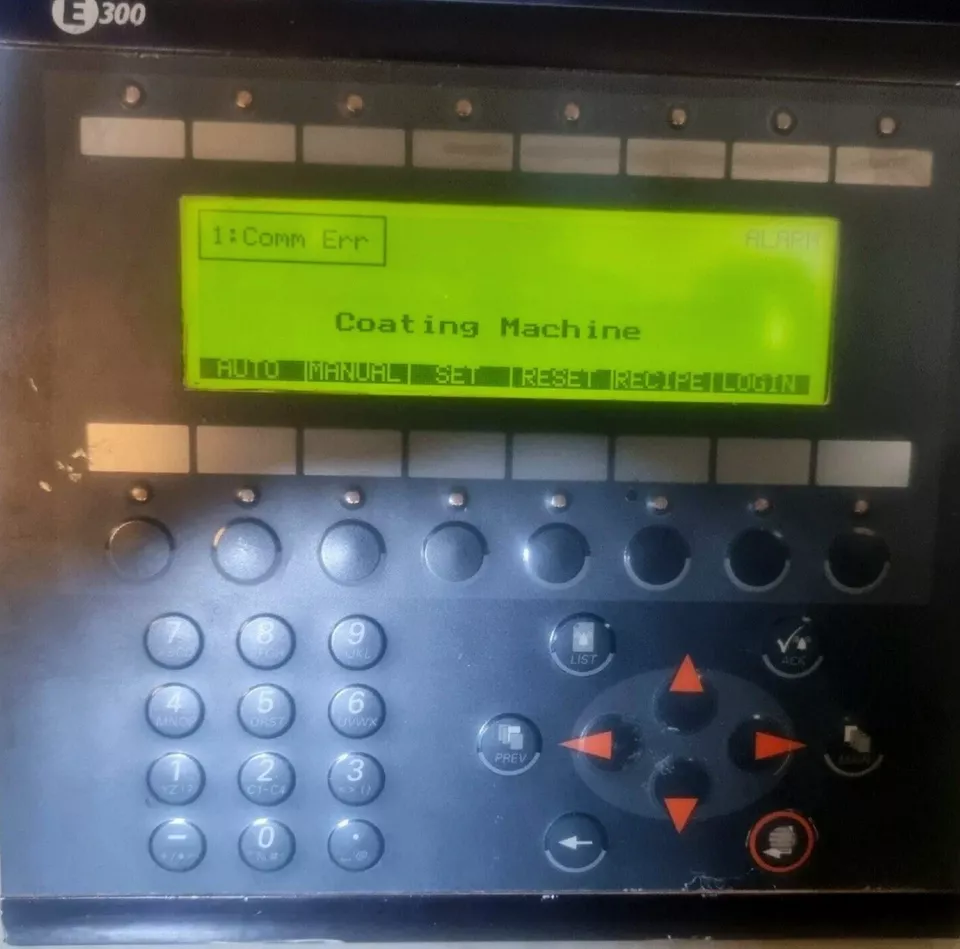

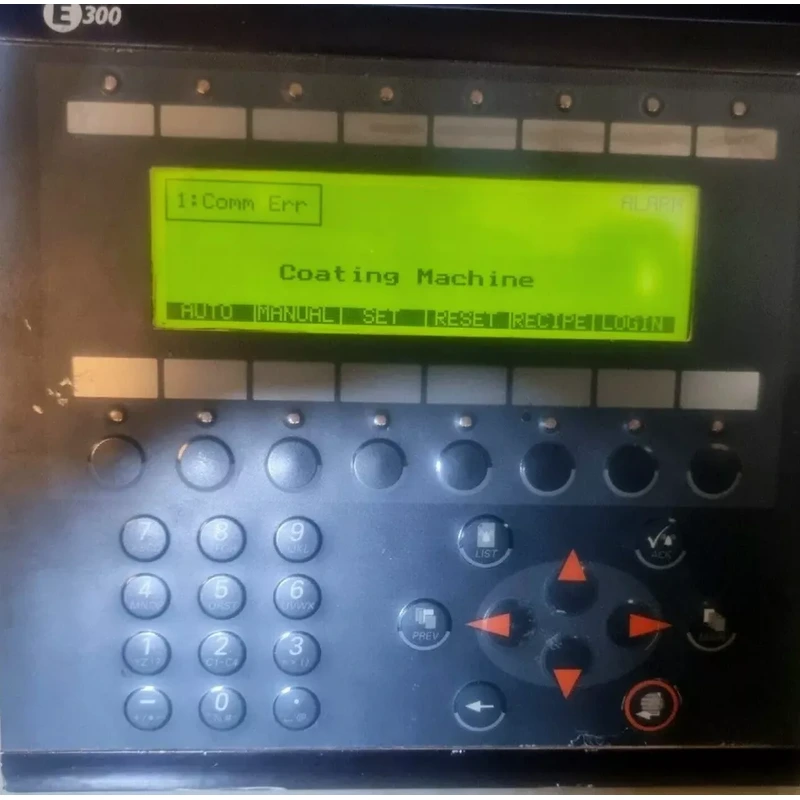

• Display Type: Monochrome LCD (STN)

• Display Size: 4.7-inch (120 x 64 pixels)

• Backlight: LED (long life, energy-efficient)

• Keypad: Membrane keypad (for rugged industrial use)

Communication & Connectivity:

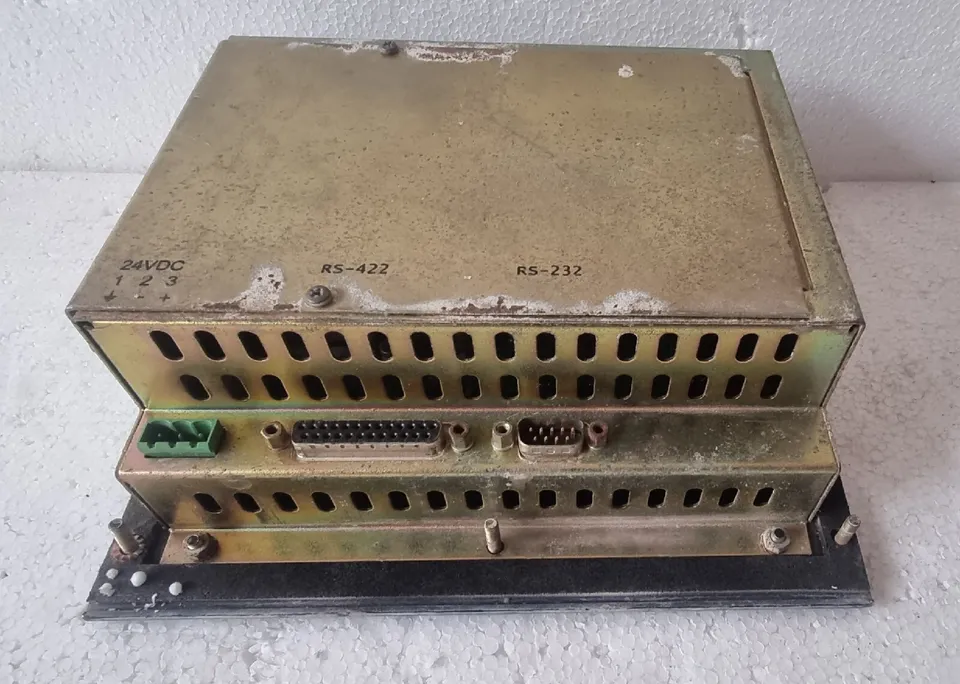

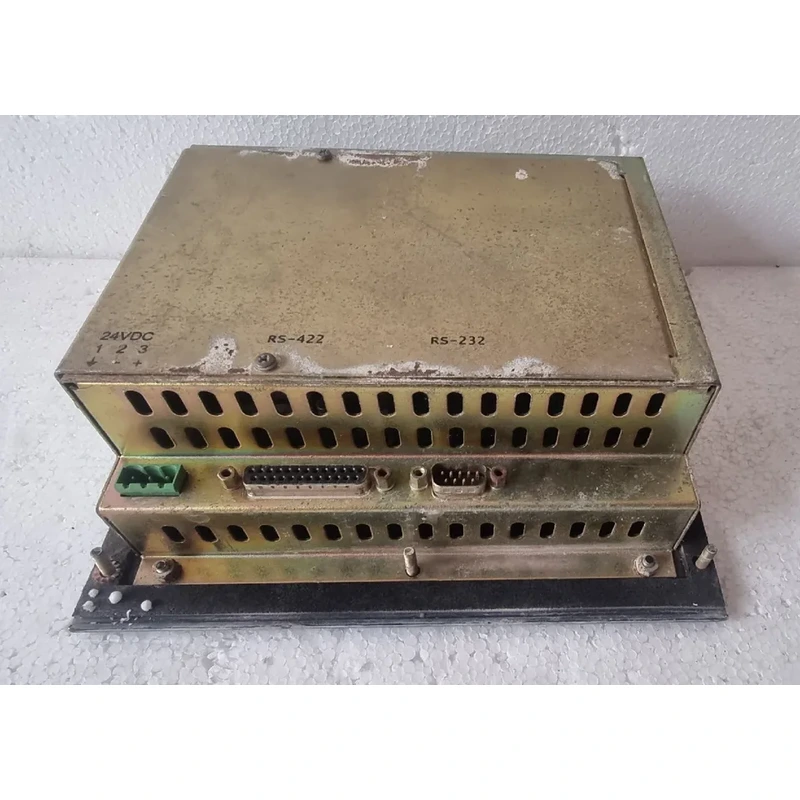

• Built-in Communication Ports:

  • 1 × RS-422/485 (for Mitsubishi PLCs like FX, A, Q series)

  • 1 × RS-232C (for programming & peripheral connection)

• Supported Protocols:

  • Mitsubishi MELSEC (FX, A, Q series)

  • Modbus RTU (slave mode)

Power & Environmental Ratings:

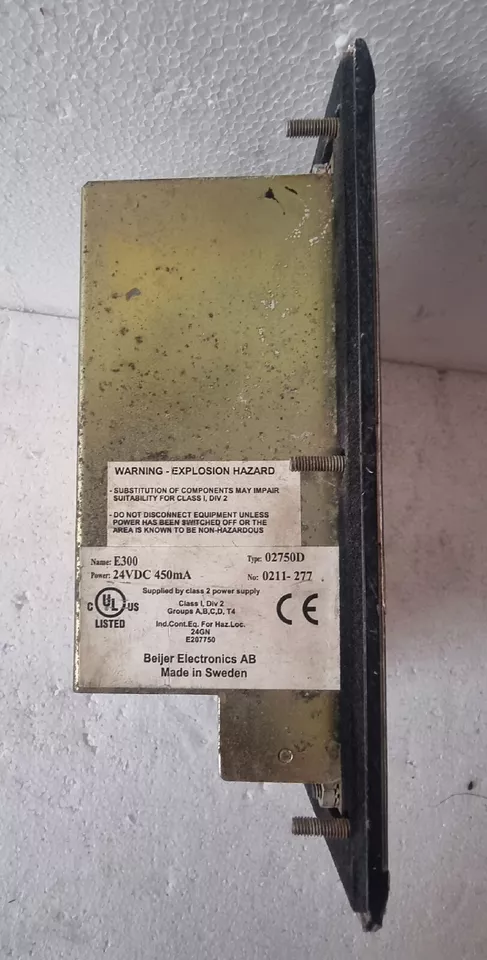

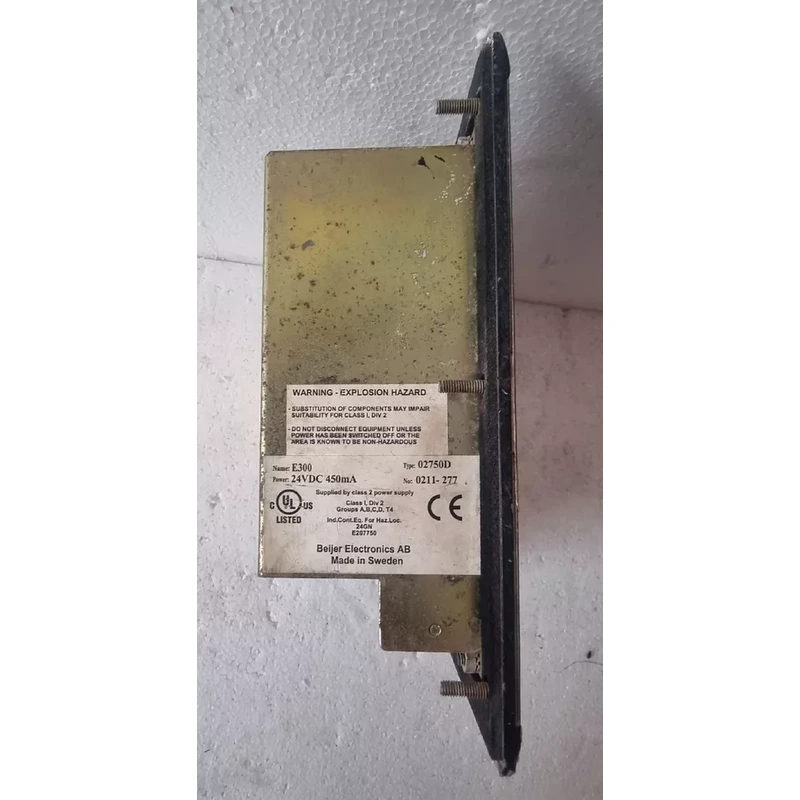

• Power Supply: 24V DC (±10%)

• Current Consumption: 450mA (typical)

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Humidity: 10% to 90% (non-condensing)

• Vibration/Shock Resistance: Compliant with industrial standards

Mounting & Enclosure:

• Panel Cutout Dimensions: 138 x 108 mm (5.43 x 4.25 in)

• Enclosure Rating: IP65 (front panel) (dust-tight & protected against water jets)

• Mounting: Panel-mounted

Memory & Programming:

• Internal Memory: Flash-based storage for screens & configurations

• Programming Software: E-Designer (older Mitsubishi HMI software)

• Supports: Ladder logic monitoring, alarms, basic data display

Typical Applications:

• Simple machine control & monitoring

• Integration with Mitsubishi PLCs (FX, A, Q series)

• Low-cost HMI solution for basic operator interfaces
