Condition:Used

Core Specifications

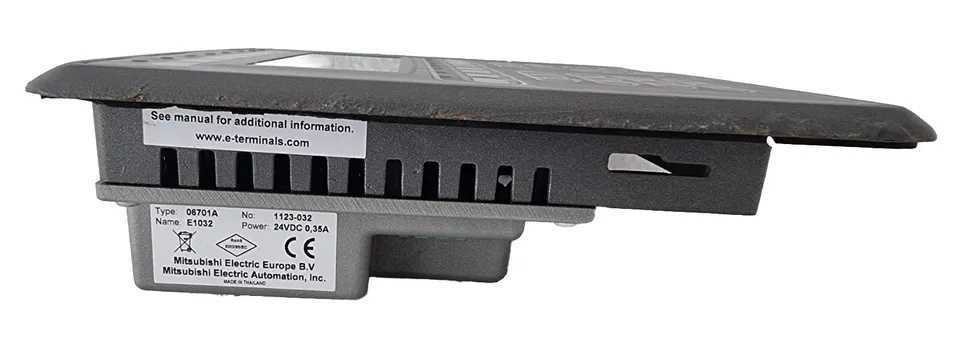

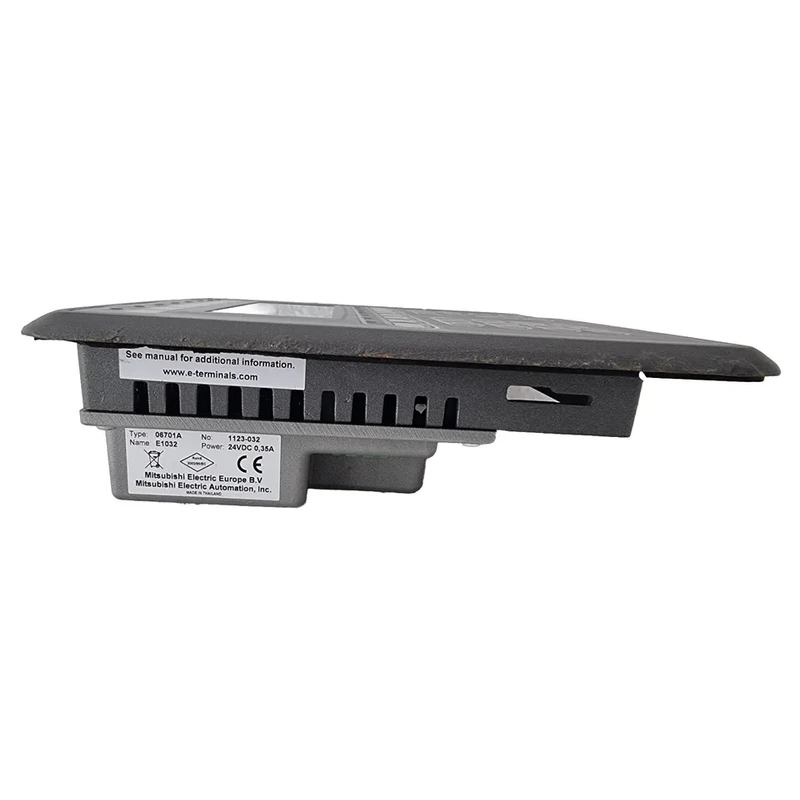

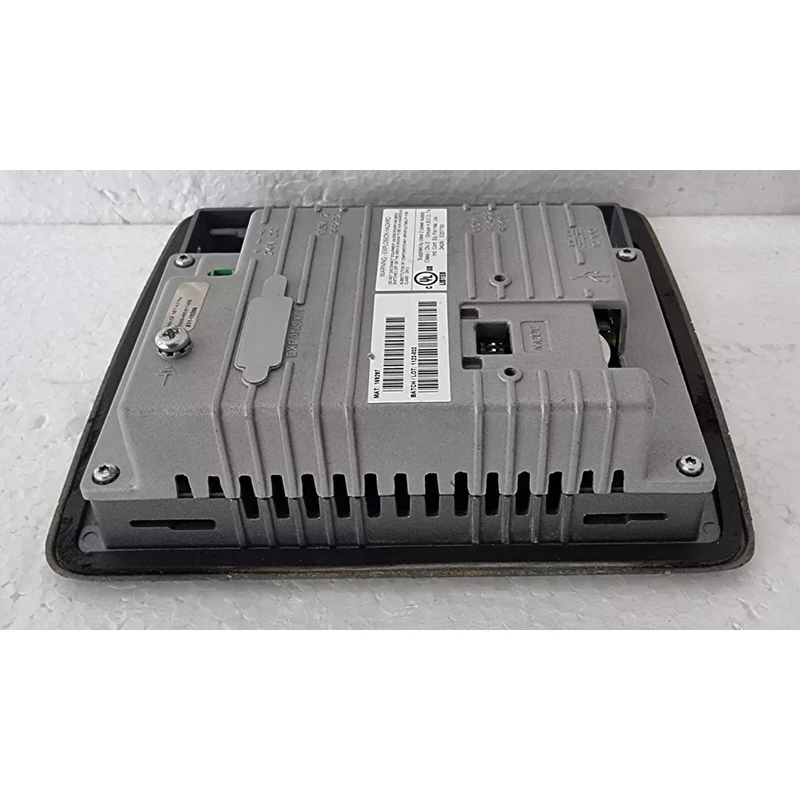

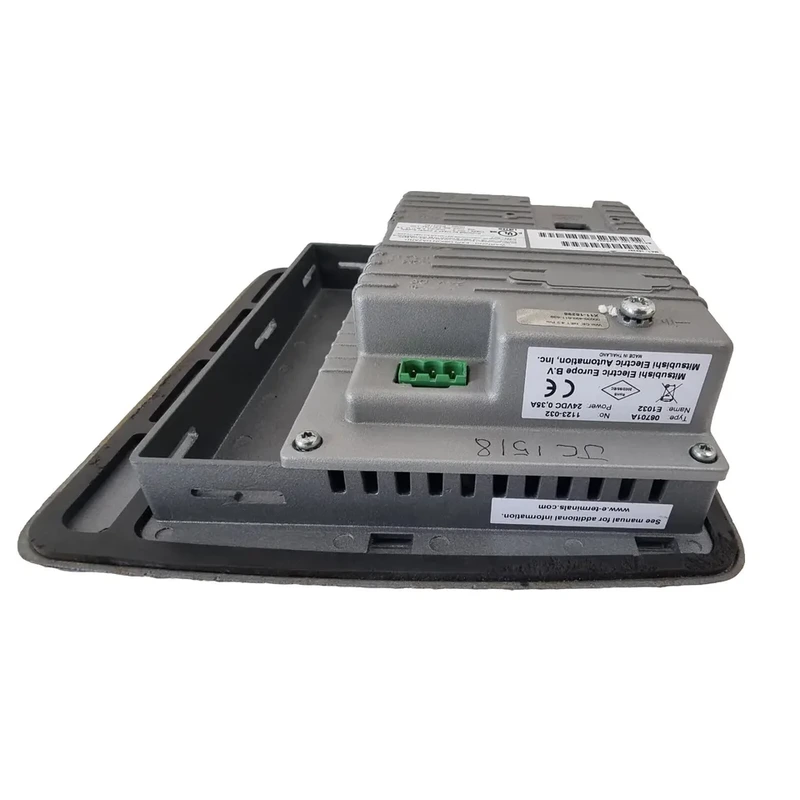

• Model: E1032 (Type 06701A)

• Display: 10.4″ TFT LCD

• Resolution: 800 x 600 (SVGA)

• Touchscreen: Resistive (single-touch)

• Brightness: 400 cd/m² (adjustable)

• Viewing Angle: 160° horizontal/vertical

Electrical Characteristics

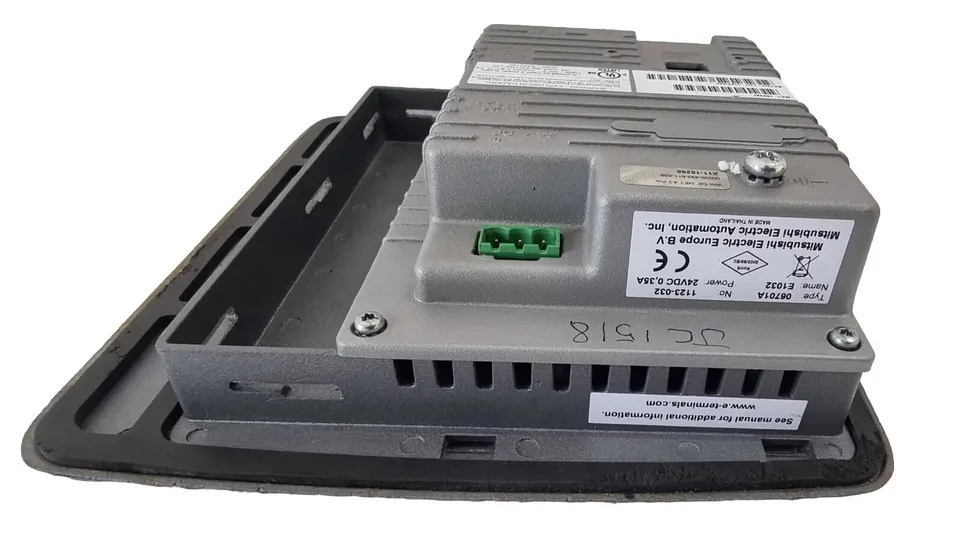

• Input Voltage: 24VDC ±10%

• Current Consumption: 0.35A (8.4W typical)

• Inrush Current: 1.5A for 20ms

• Backup Power: Supercapacitor (72hr retention)

Hardware Configuration

• Processor: 500MHz RISC

• Memory:

  • Flash: 128MB (program storage)

  • RAM: 64MB DDR

  • Expansion: SD card slot (max 32GB)

• Real-Time Clock: Battery-backed (CR2032)

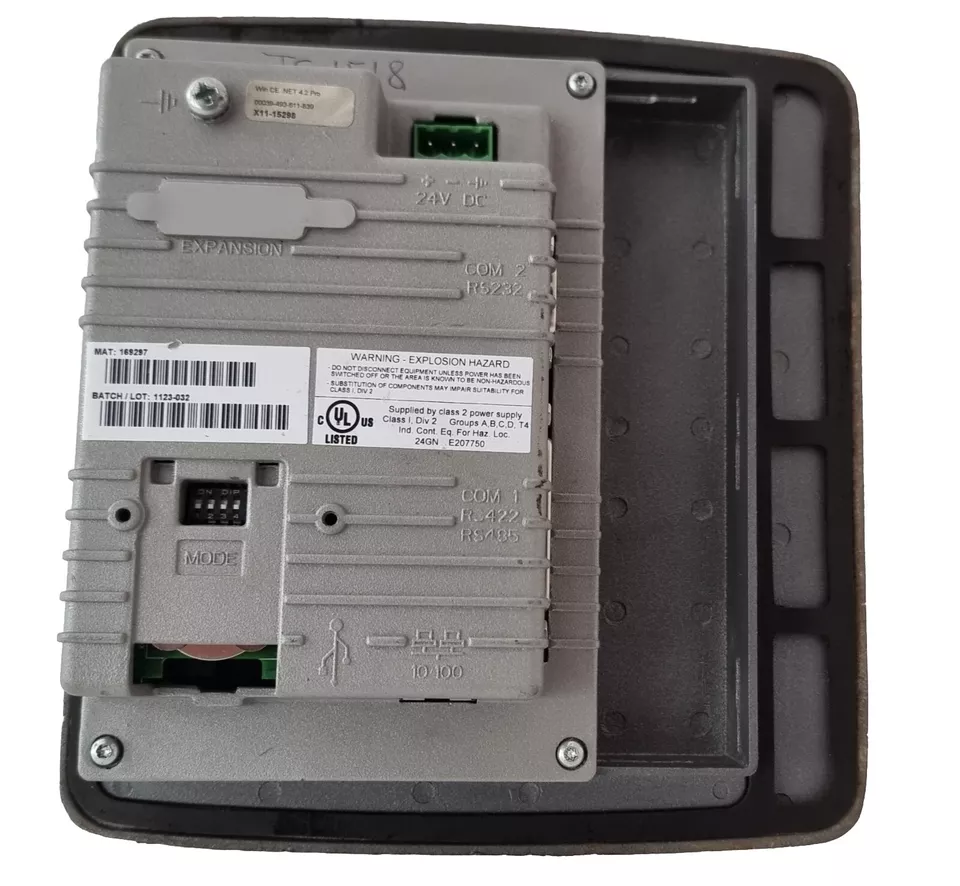

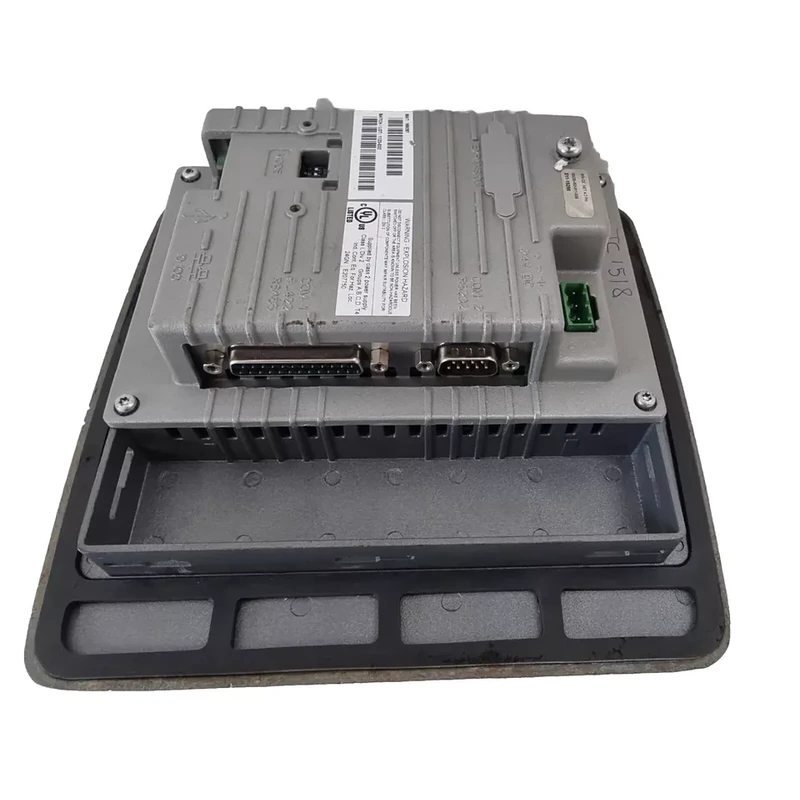

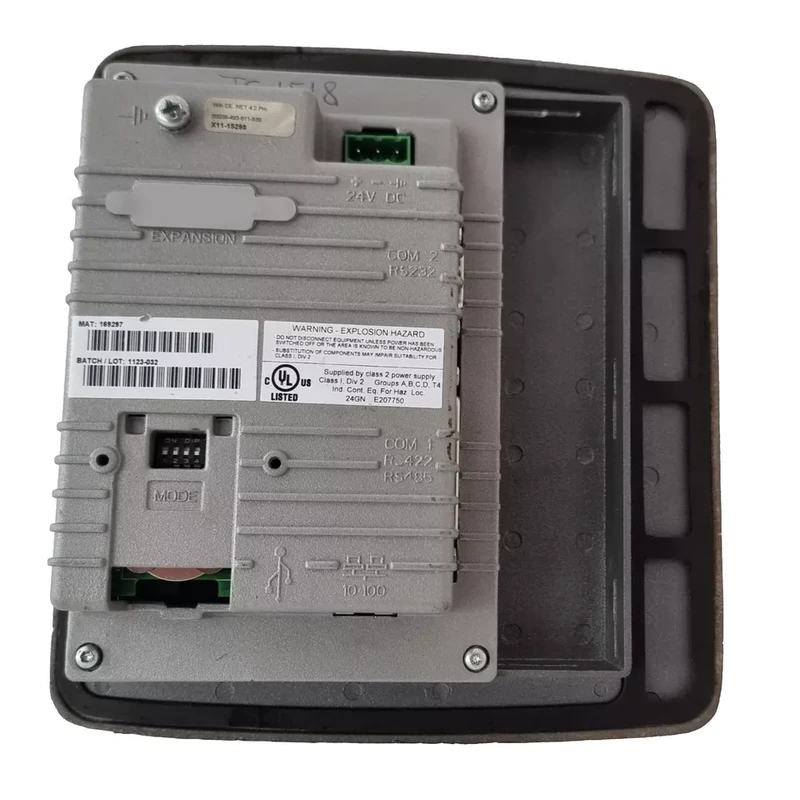

Communication Interfaces

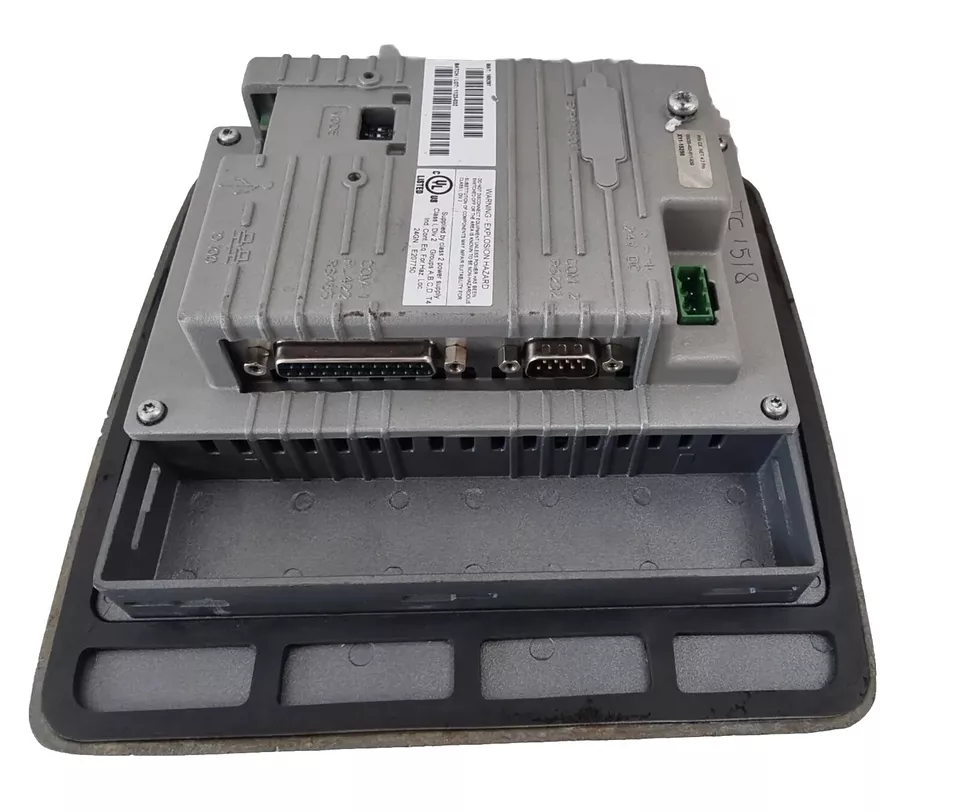

• Serial Ports:

  • 1x RS-232 (DB9 male)

  • 1x RS-422/485 (terminal block)

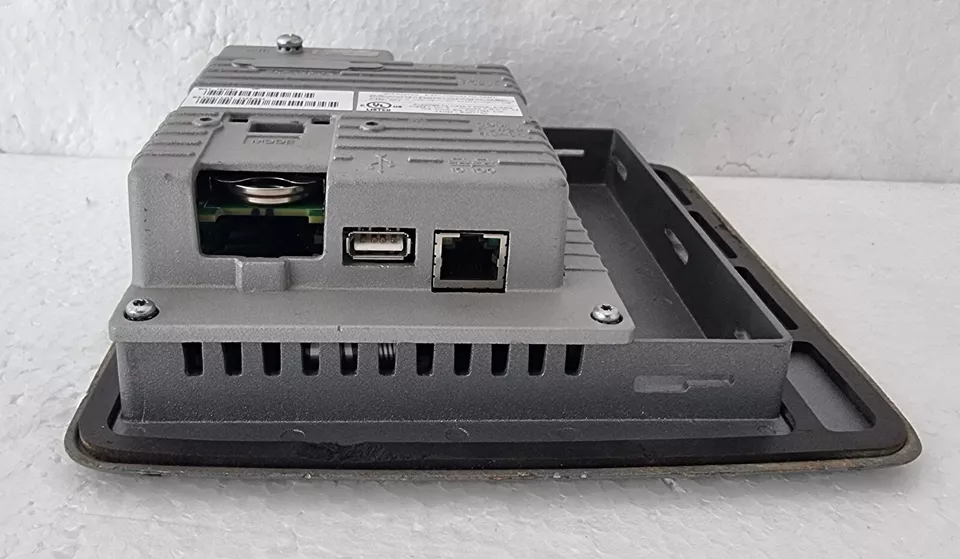

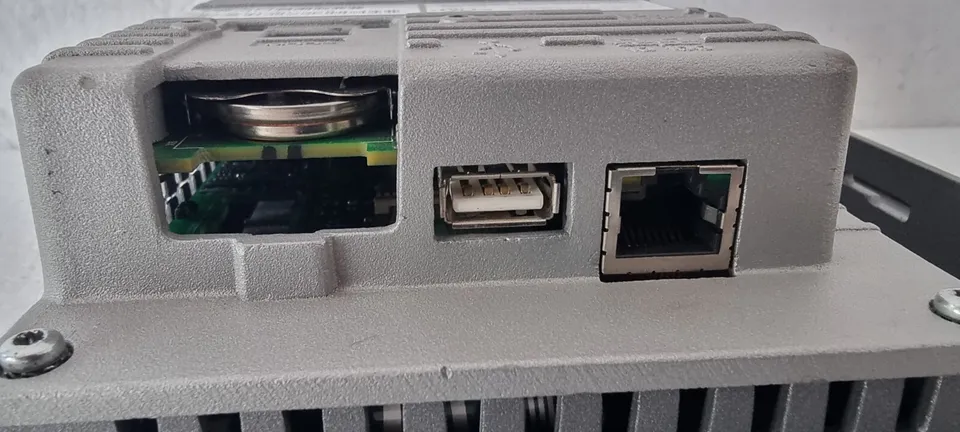

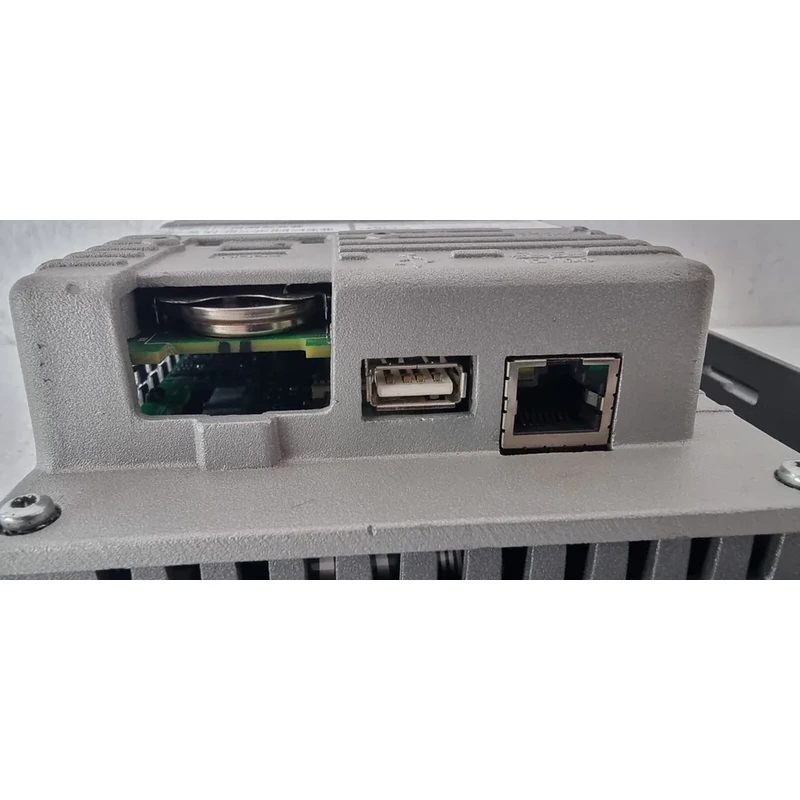

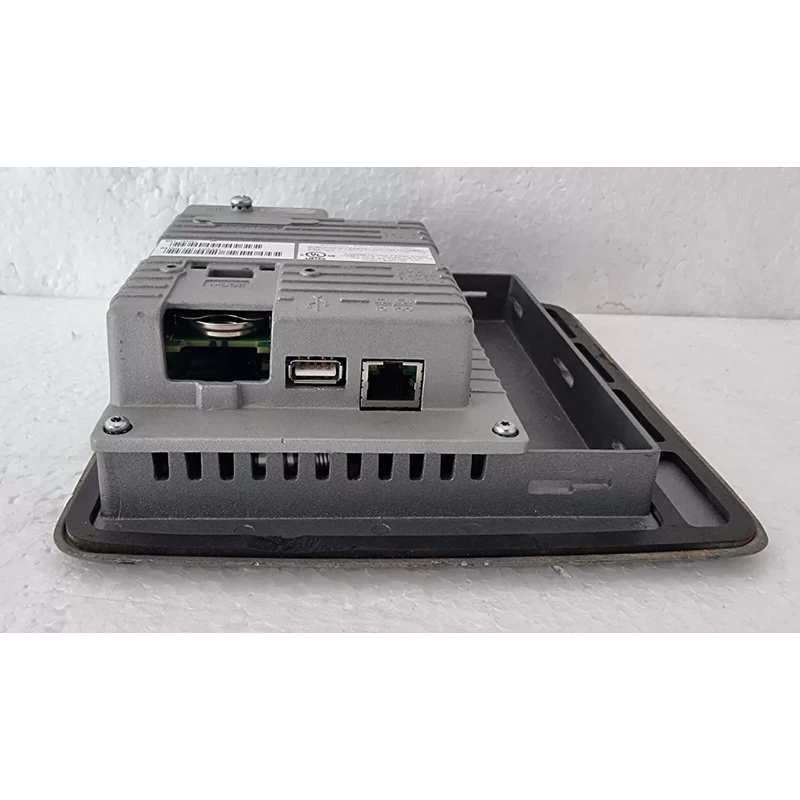

• Ethernet: 10/100Base-T (RJ45)

• USB: 1x USB 2.0 host port

Environmental Ratings

• Operating Temp: 0°C to +50°C

• Storage Temp: -20°C to +60°C

• Humidity: 10-90% non-condensing

• Vibration: 1G @ 10-150Hz

• Enclosure: IP65 front panel (NEMA 4X)

Software Features

• Development Environment: iX Developer v2.0+

• Runtime System: Windows CE 6.0

• Supported Protocols:

  • Mitsubishi MELSEC (FX/Q/L series)

  • Modbus RTU/TCP

  • Siemens S7 MPI/PROFIBUS

  • OPC UA (optional)

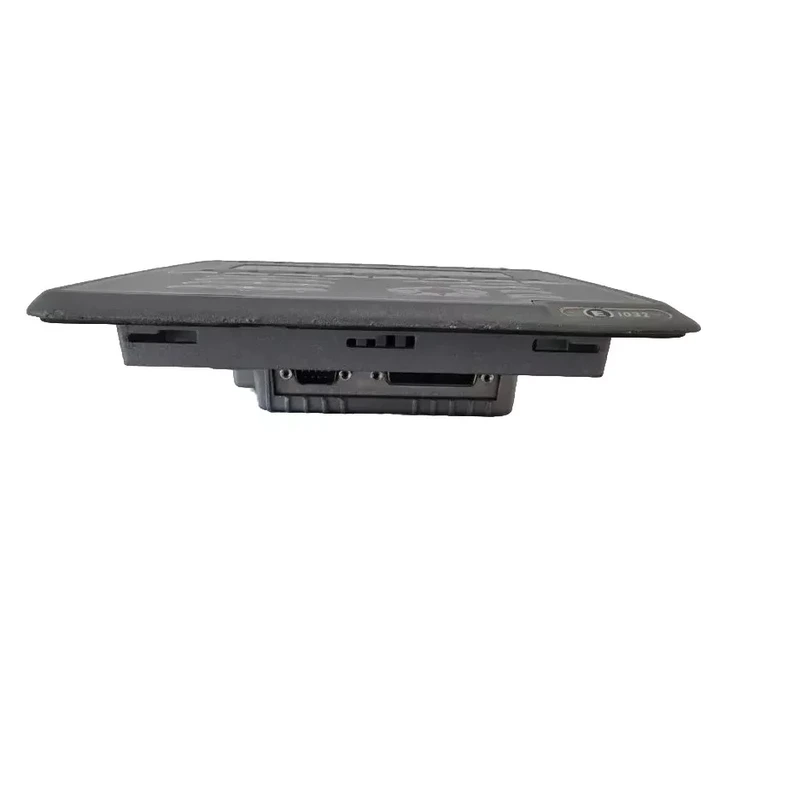

Mechanical Details

• Panel Cutout: 237 x 177mm

• Overall Dimensions: 255 x 195 x 46mm

• Weight: 1.5kg

• Mounting: Panel mount with front bezel
