Condition:Used

Key Specifications

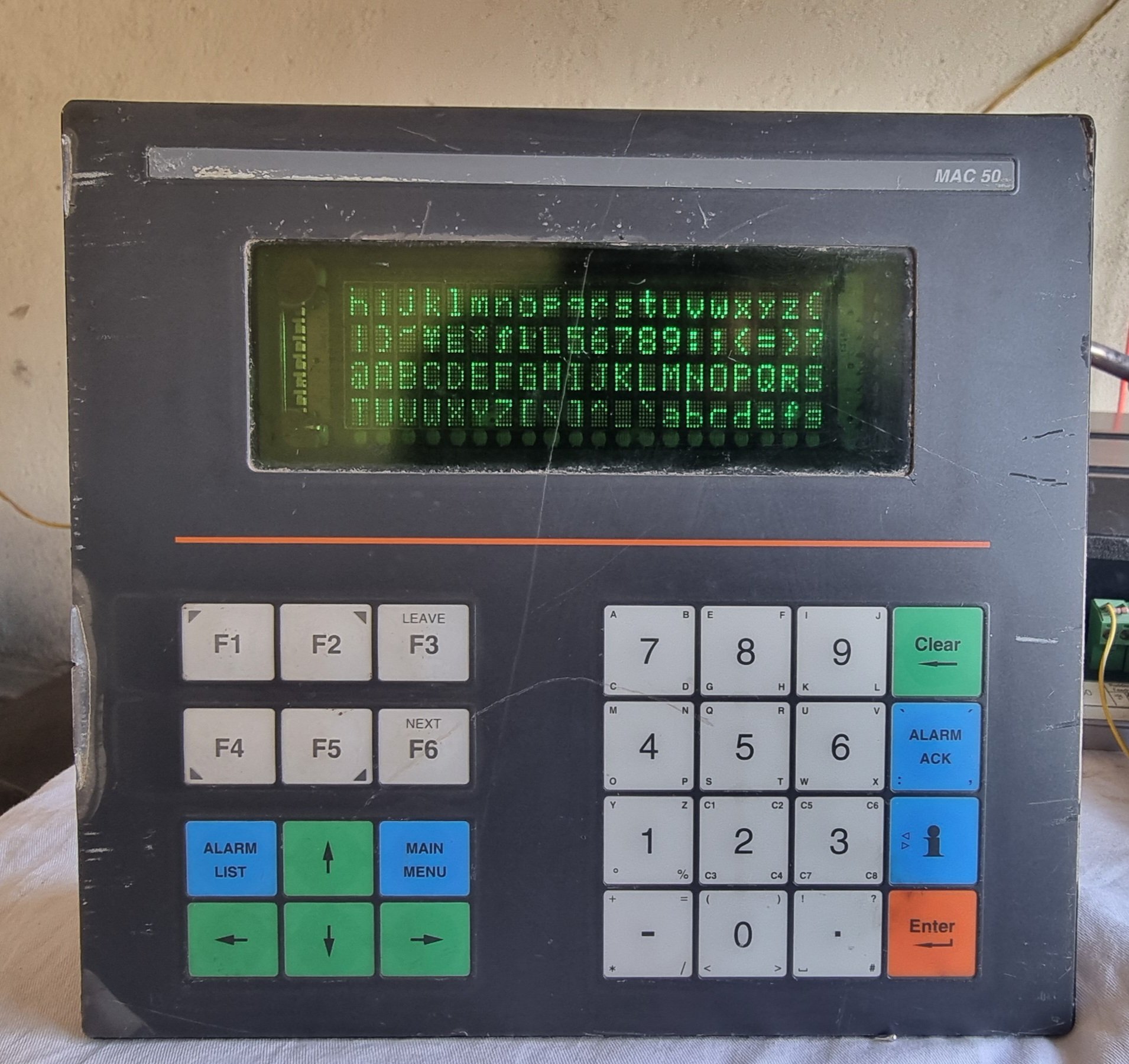

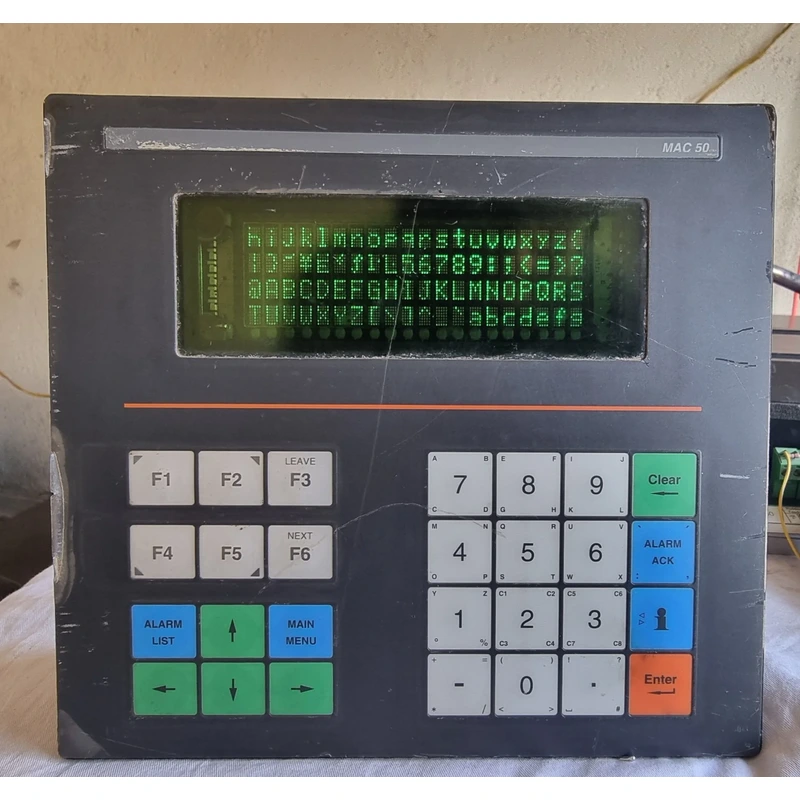

1. Model Identification

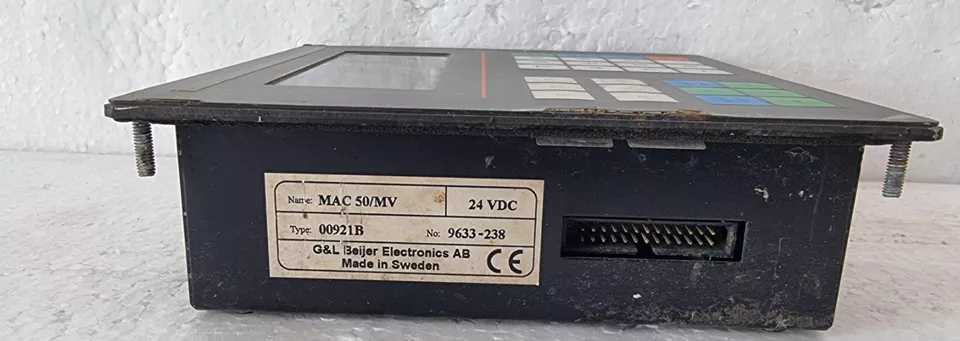

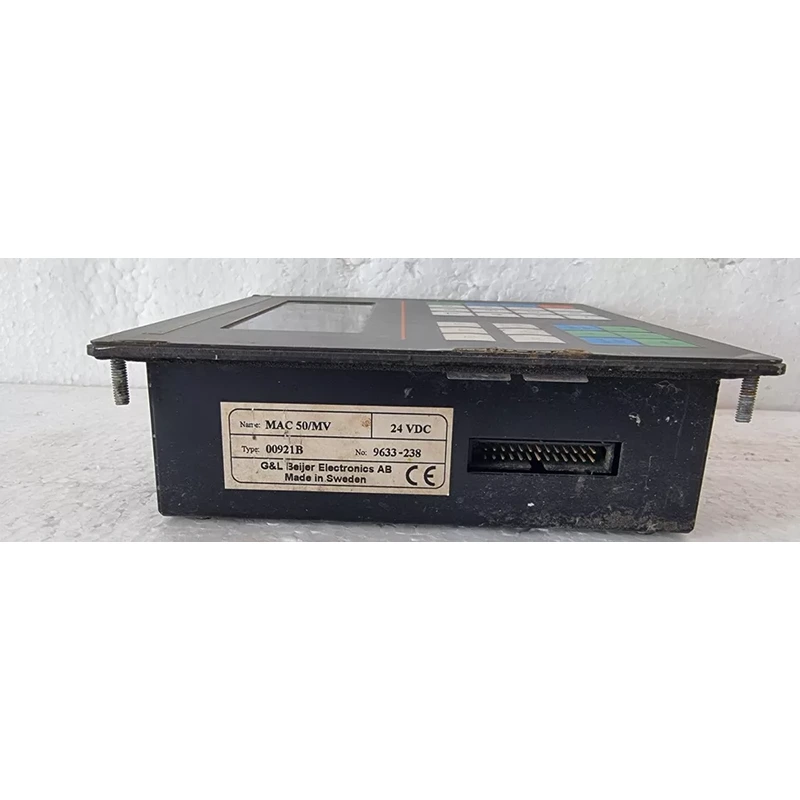

   • Part Number: 00921B

   • Series: MAC 50/MV

   • Type: Monochrome LCD HMI

2. Display & Interface

   • Screen Size: 5.7″ STN LCD

   • Resolution: 320 x 240 pixels

   • Colors: Monochrome (Blue/White)

   • Touchscreen: Resistive (Single-Touch)

3. Communication & Connectivity

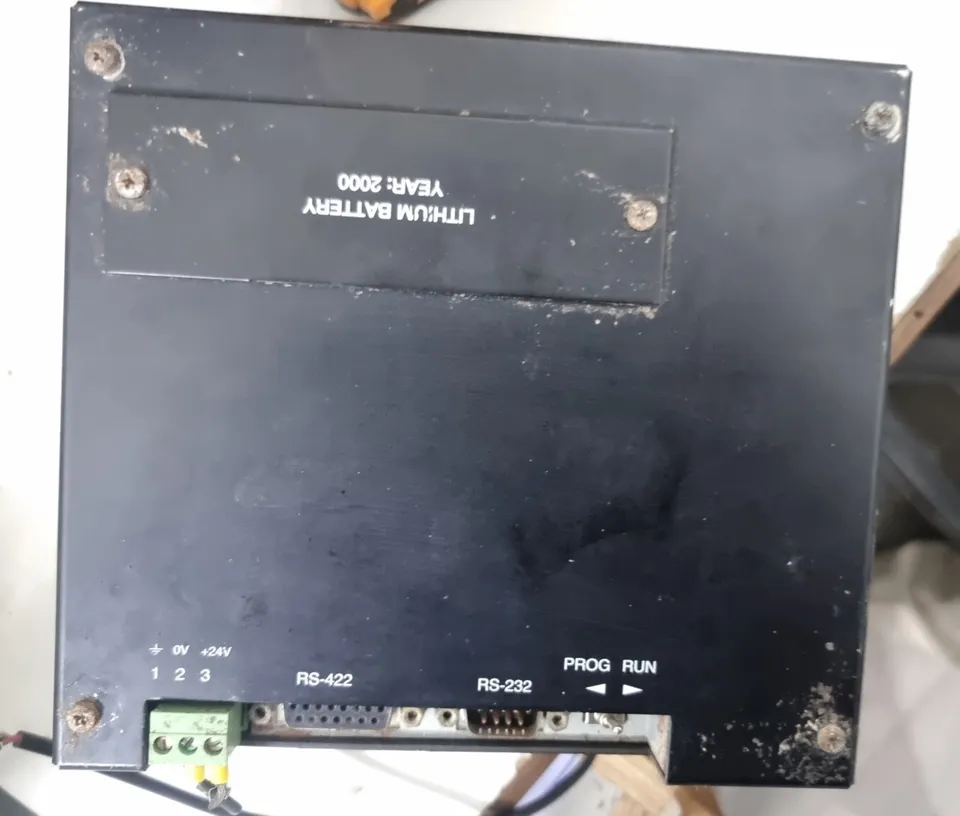

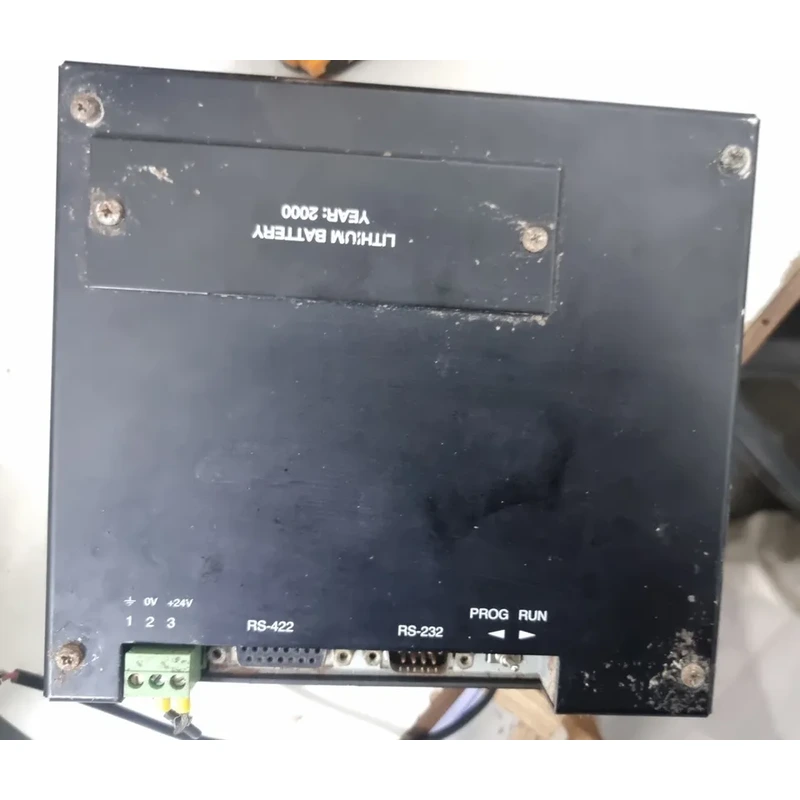

   • Serial Ports:

     • 1x RS-232 (For PLC/PC)

     • 1x RS-422/485 (For Multi-Drop)

   • Supported Protocols:

     • Mitsubishi MELSEC (FX, A, Q Series)

     • Modbus RTU/ASCII

     • Omron Host Link

4. Memory & Processing

   • Flash Memory: 1MB (For Application Storage)

   • RAM: 512KB

   • Backup: Supercapacitor (72-Hour Retention)

5. Power Requirements

   • Input Voltage: 24VDC ±10%

   • Current Consumption: 300mA (7.2W)

   • Operating Voltage Range: 18-30VDC

6. Environmental Ratings

   • Operating Temp: 0°C to +50°C

   • Humidity: 10-90% (Non-Condensing)

   • Protection: IP65 (Front Panel)

Programming & Configuration

• Software:

  • E-Designer (Legacy Mitsubishi HMI Tool)

  • iX Developer (For Migration to Newer Models)

• Features:

  • Up to 500 Screens

  • Alarm Logging (1000 Events)

  • Basic Scripting Support

Mechanical Details

• Panel Cutout: 138 x 108mm

• Dimensions: 150 x 118 x 43mm

• Weight: 500g

• Mounting: Panel Mount (Front Bezel Clamp)

Ordering Information

• 00921B indicates:

  • Monochrome Display

  • 24VDC Power Supply

  • Basic Communication Package

Legacy Support & Migration

• Discontinued: Yes (Replaced by Beijer iX Series)

• Recommended Upgrade:

  • Beijer iX T5/T7 (For Modern Features)

  • Mitsubishi GOT2000 Series
