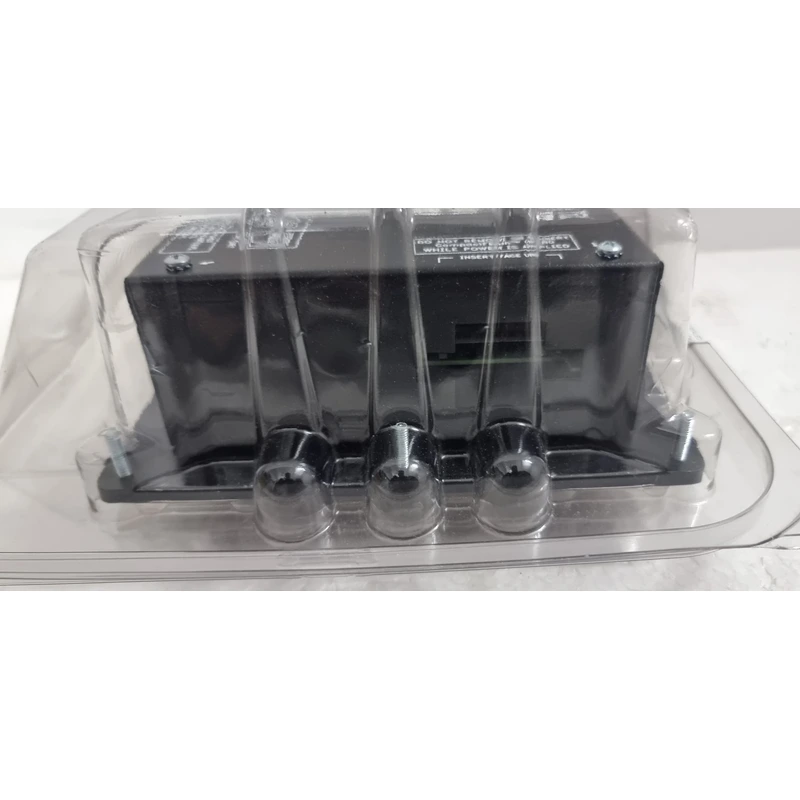

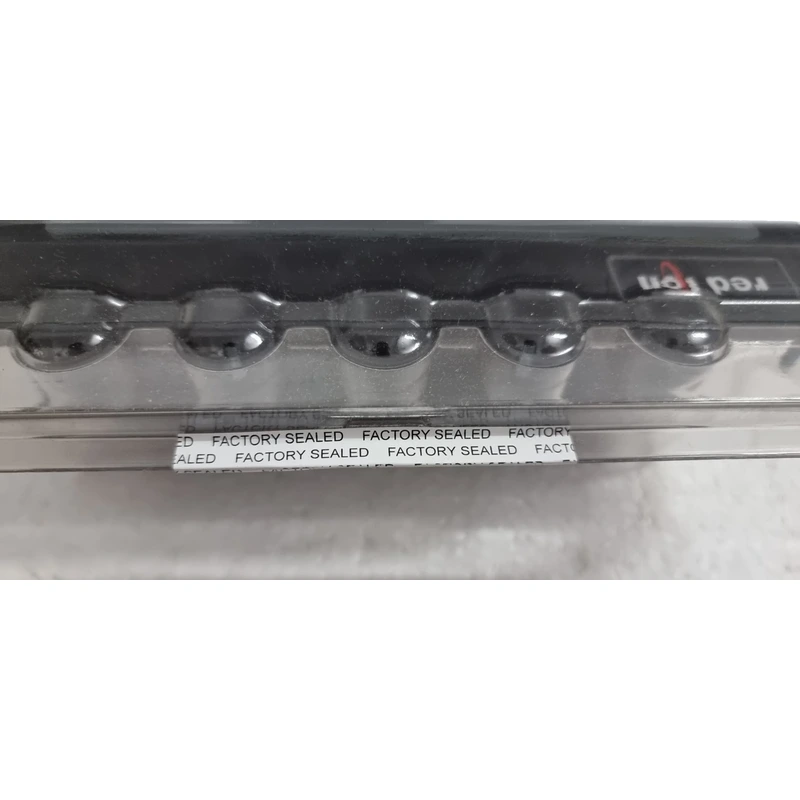

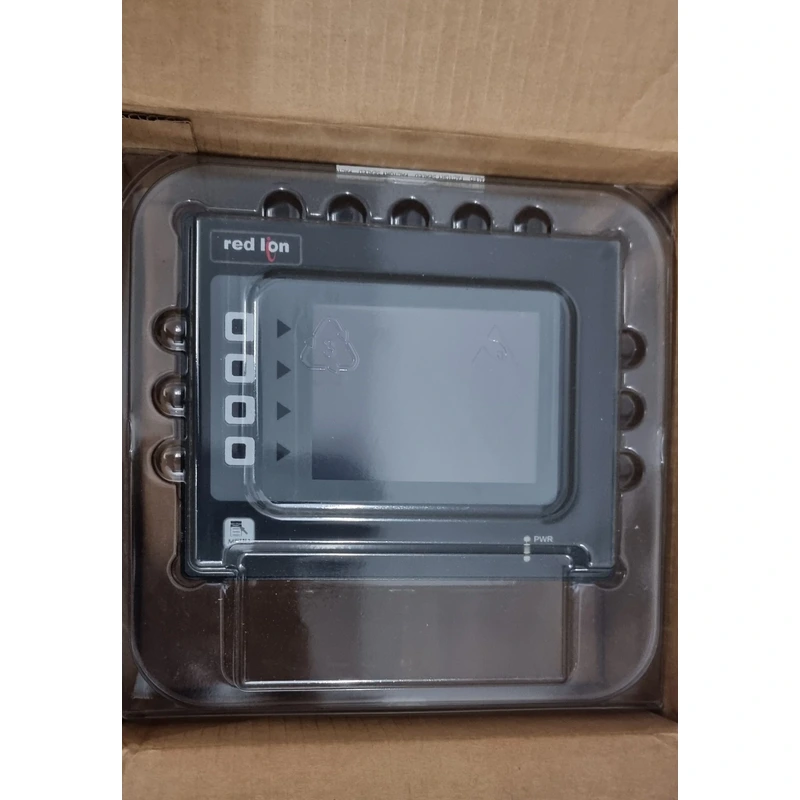

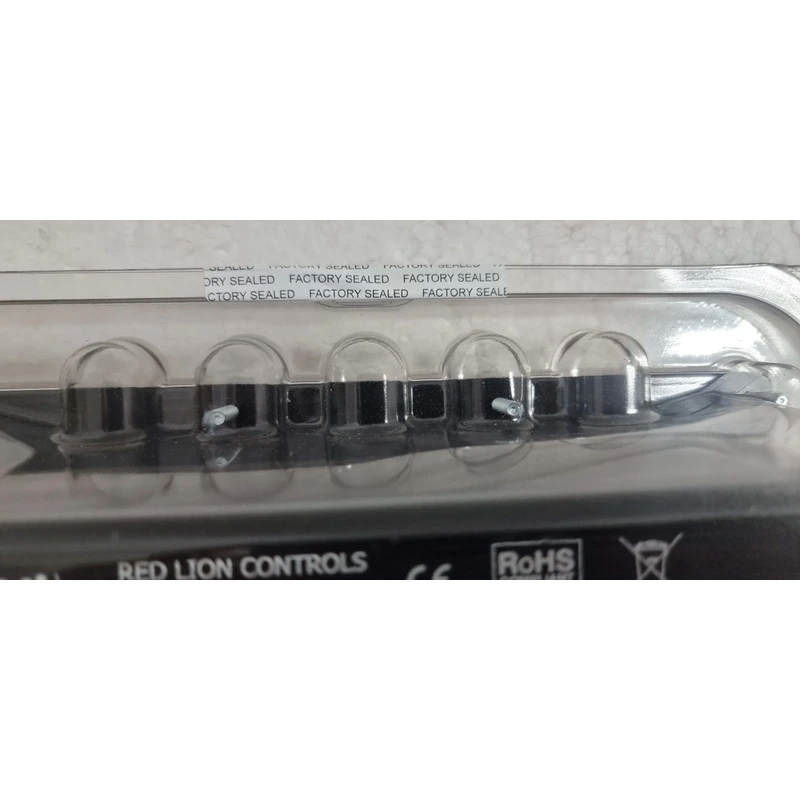

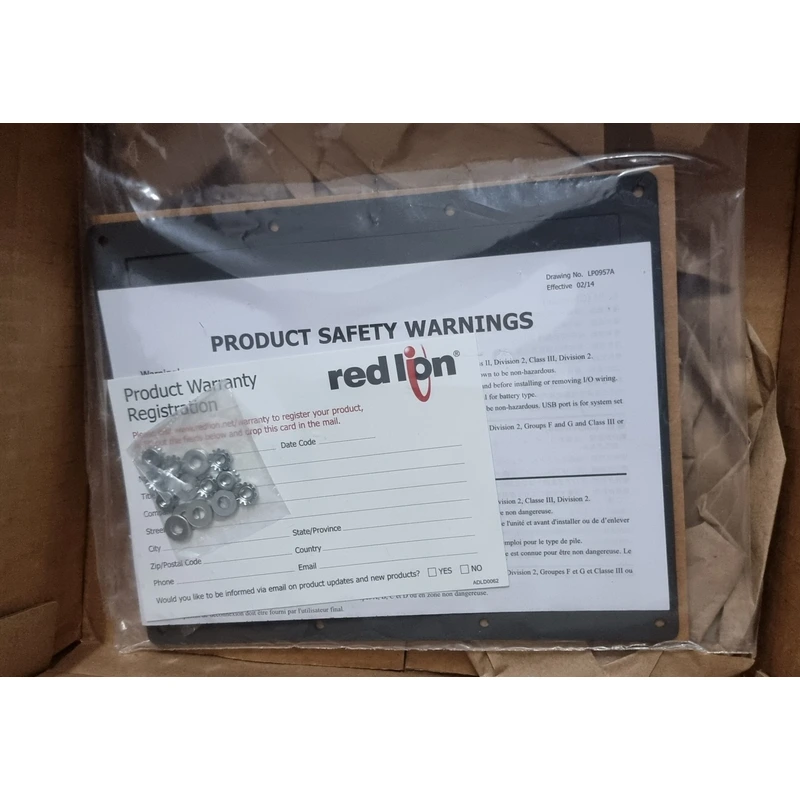

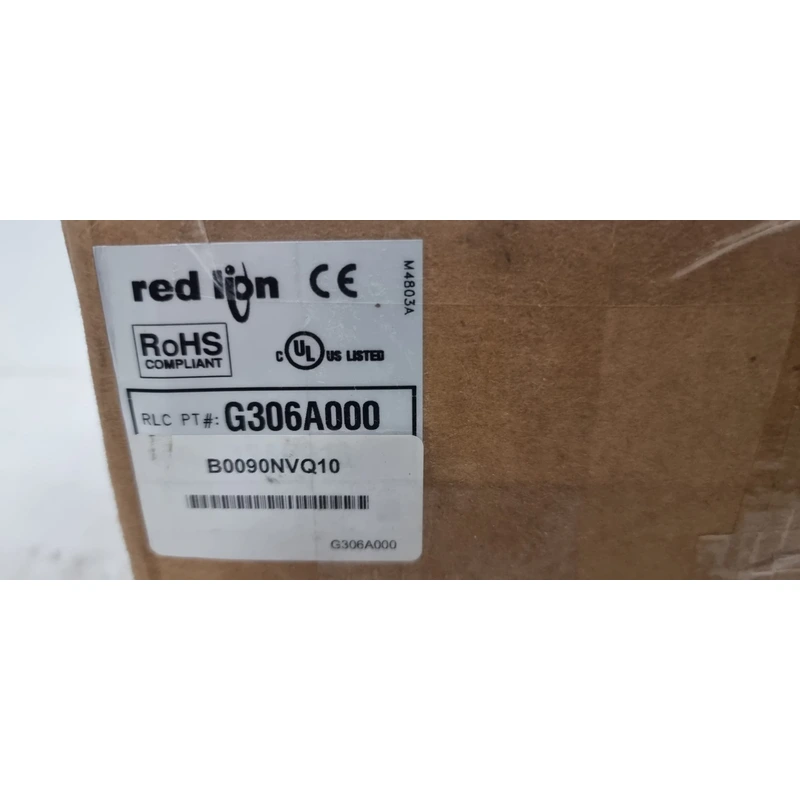

CONDITION : BRAND NEW FACTORY SEALED PRODUCT IN ITS ORIGINAL BOX !

Key Specifications

Display & Interface:

• Screen Size: 5.7″ TFT LCD

• Resolution: 320 × 240 (QVGA)

• Touchscreen: Resistive (single-touch)

• Brightness: 250 cd/m² (adjustable)

• Viewing Angle: 140° horizontal/vertical

Processing & Memory:

• CPU: 32-bit RISC processor

• Memory: 64MB RAM / 128MB Flash

• Data Logging: Supports SD card (up to 32GB)

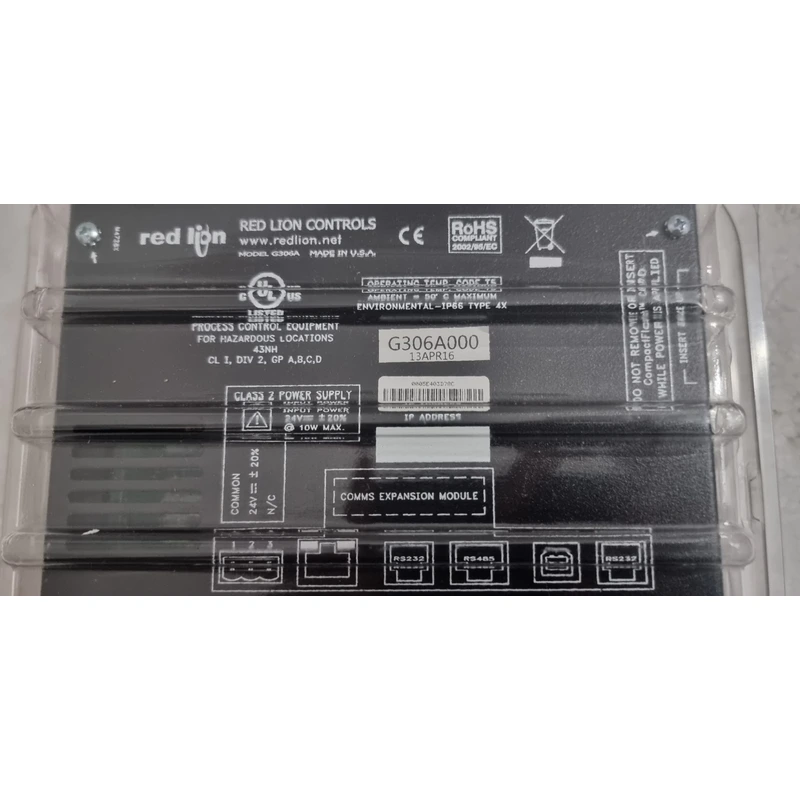

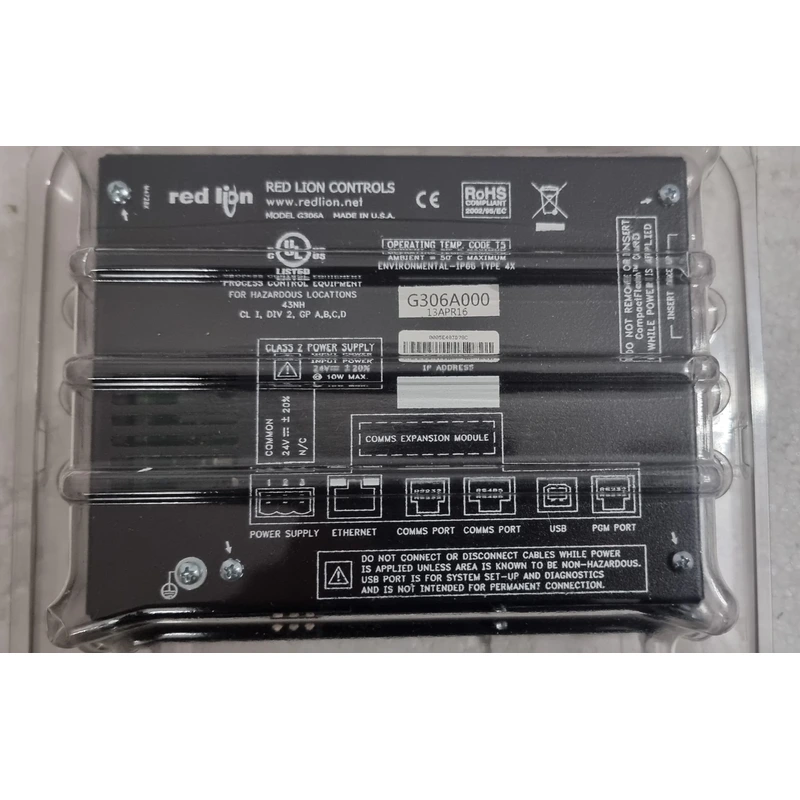

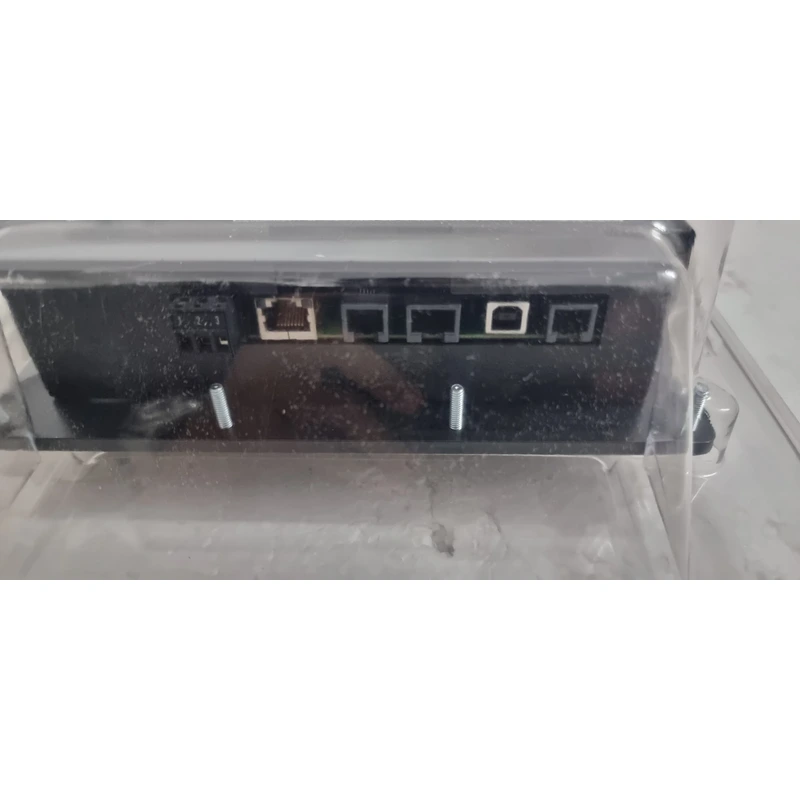

Communication Ports:

• Serial: 1 × RS-232/422/485 (software-configurable)

• Ethernet: 1 × 10/100Base-T (RJ45)

• USB: 1 × USB 2.0 Host

Protocol Support:

• Industrial: Modbus RTU/TCP, EtherNet/IP, DF1, DNP3

• Building: BACnet MS/TP

• Custom: ASCII protocol support

Environmental Ratings:

• Operating Temp: -20°C to +60°C

• Front Panel: NEMA 4X/IP65

• Vibration: 5G @ 5-500Hz

• Humidity: 5-95% non-condensing

Power Requirements:

• Input Voltage: 24V DC (9-36V range)

• Power Consumption: 8W typical

• Protection: Reverse polarity protected

Configuration Software:

• Crimson® 3.0/3.1: Free Windows-based software

• Features:

  • Drag-and-drop screen design

  • Built-in protocol converter

  • Advanced alarm management

  • Data logging to CSV/SQLite

Key Features:

1. Protocol Conversion: Bridge between incompatible devices

2. Web Server: Remote monitoring via built-in web pages

3. Security: Password protection with user levels

4. Visualization: Supports animations and trending

Typical Applications:

• SCADA system interfaces

• Pump station monitoring

• HVAC control panels

• Manufacturing equipment

• Energy management systems
