🔹 Product Overview

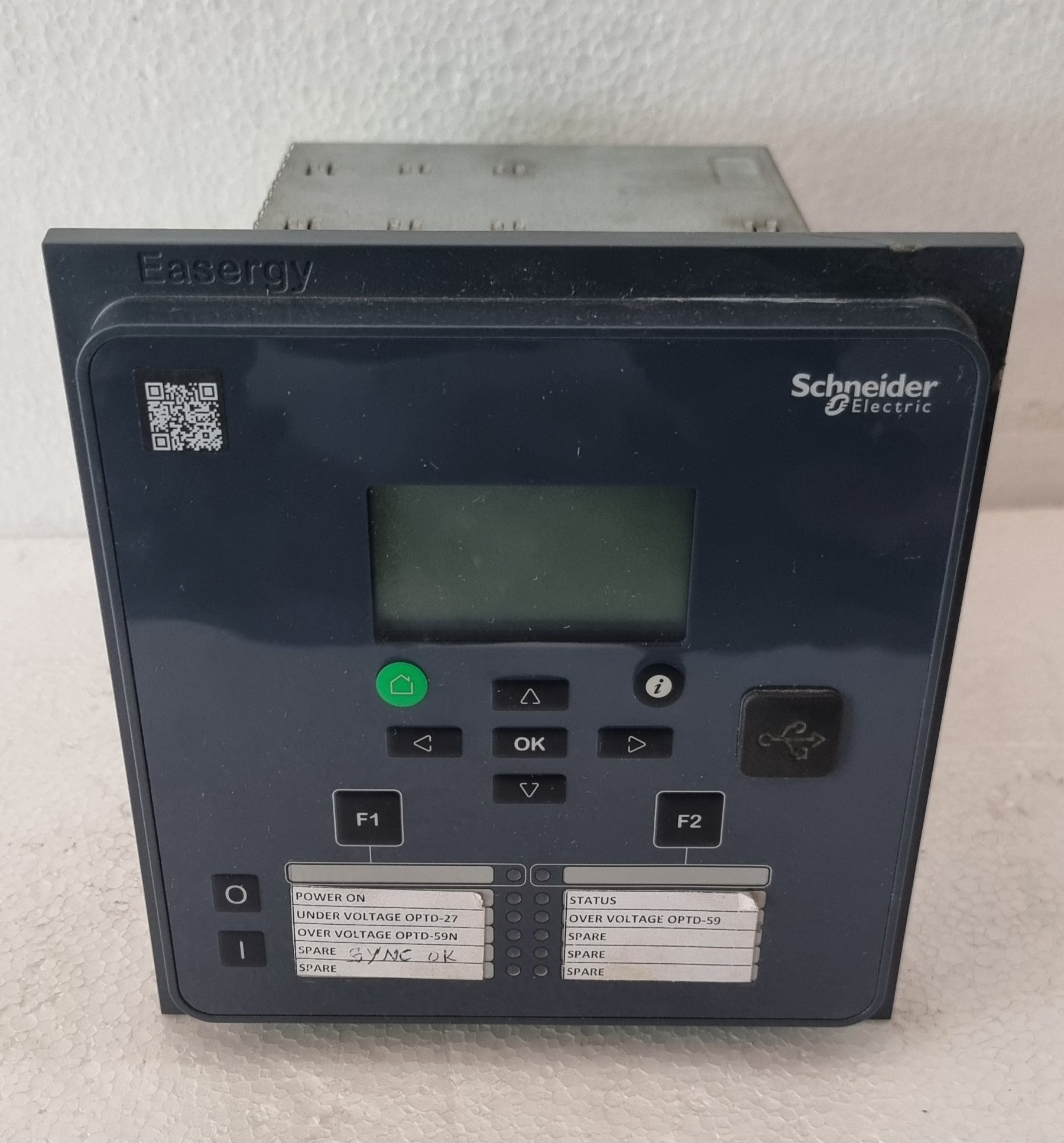

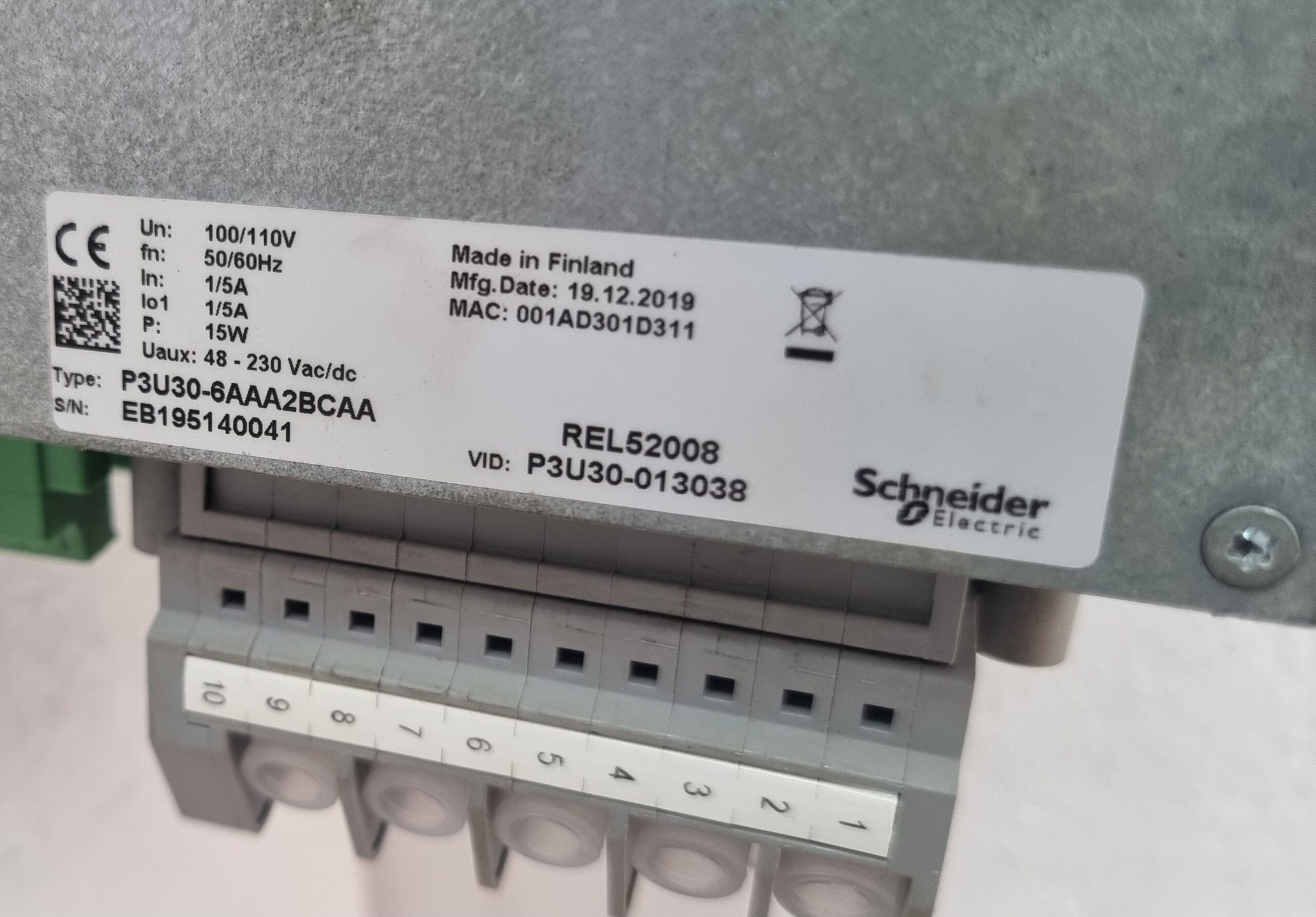

Model: P3U30-6AAA2BCAA (Part of REL52008 Series)
Category: Advanced Numerical Protection Relay
CONDITION : NEW IN THE BOX !
Primary Use: Electrical network protection (overcurrent, earth fault, motor protection, etc.)
Voltage Range: Up to 690V AC (Low/Medium Voltage)

🔹 Key Features & Specifications
⚡ Protection Functions
Overcurrent (50/51, 50N/51N) – Phase & earth fault protection

Thermal Overload (49RMS) – Motor & equipment protection

Under/Overvoltage (27/59) – Grid stability control

Directional Power Protection (32P/32Q/32N) – Reverse power & unbalance

Frequency Protection (81O/81U) – Under/overfrequency trip

📊 Monitoring & Control
Real-time measurements (V, I, P, Q, PF, THD, kWh)

Event Logging (Last 100+ fault records with timestamps)

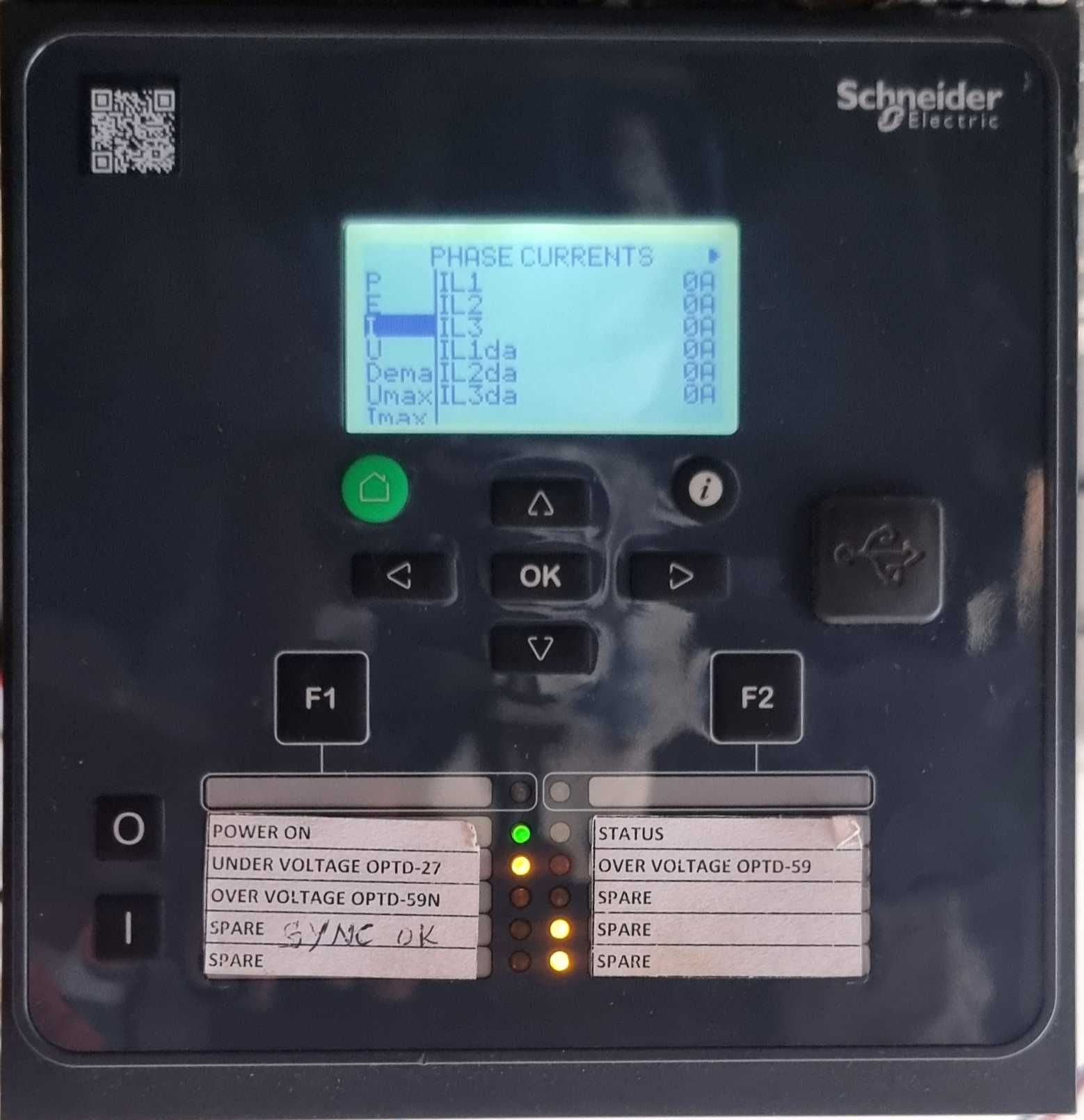

LED Indicators & LCD Display – Quick status diagnostics

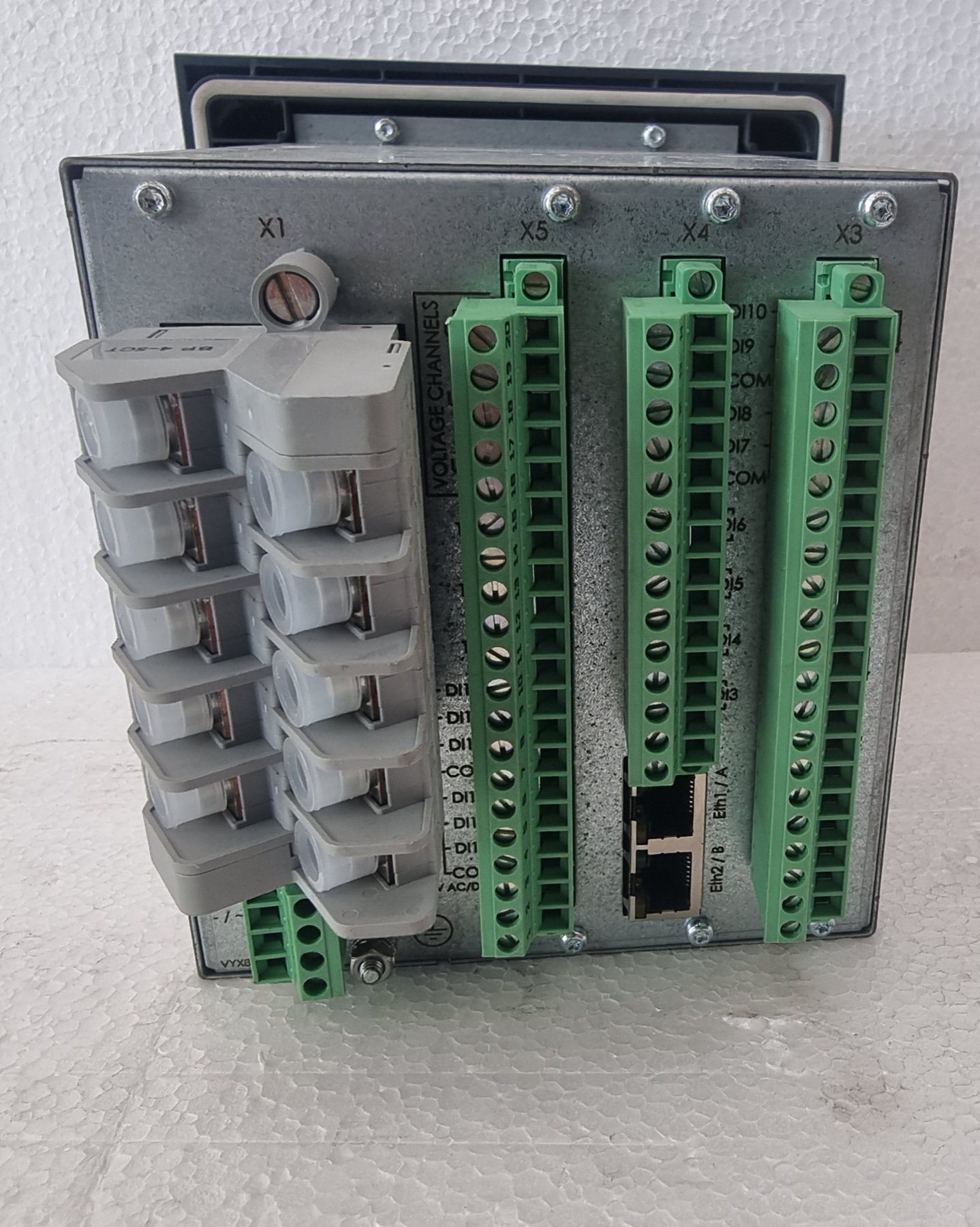

🔌 Communication & I/O
Modbus RTU (RS-485) – SCADA/PLC integration

2x Relay Outputs (Trip & Alarm)

4x Digital Inputs – External control & interlocking

🛡️ Safety & Compliance
IEC 60255, UL 508, CE Certified

IP20 Enclosure (For panel mounting)

Operating Temp: -25°C to +70°C

🔹 Applications
✔ Motor Protection (Pumps, fans, compressors)
✔ Transformer & Feeder Protection
✔ Renewable Energy Systems (Solar/Wind farms)
✔ Industrial Power Distribution
