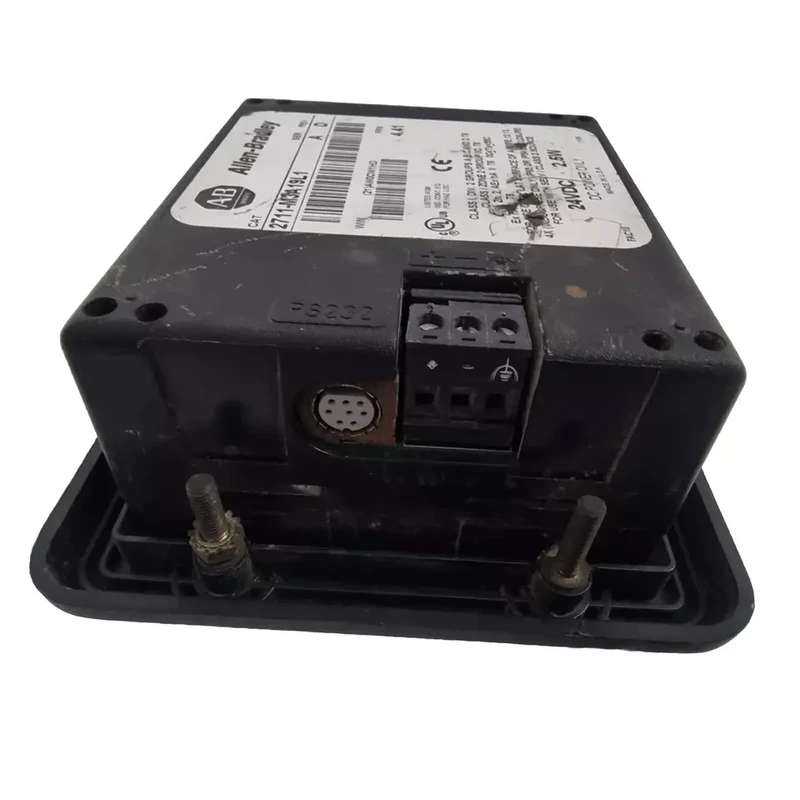

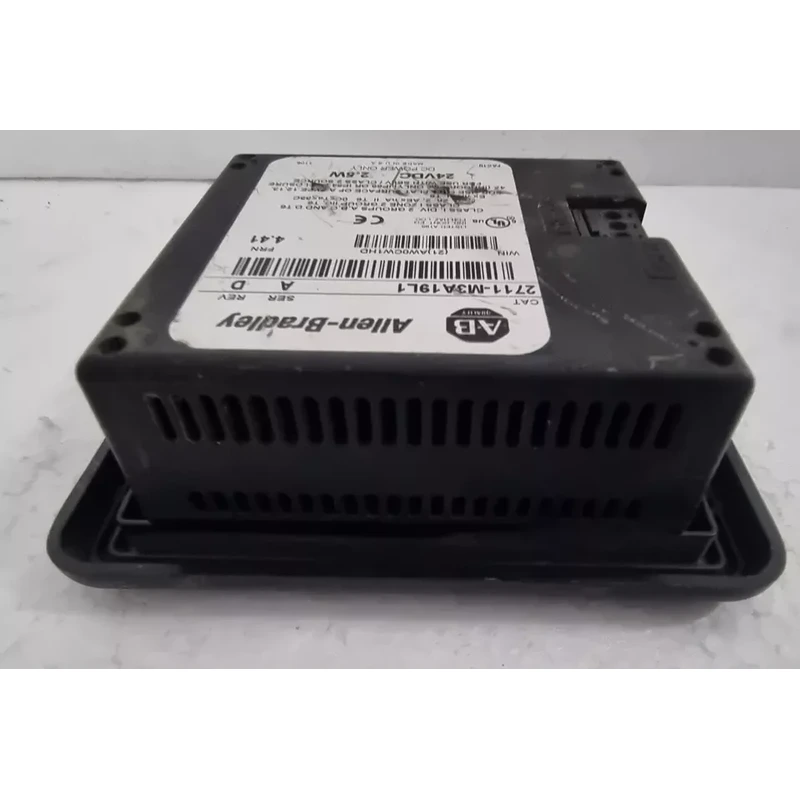

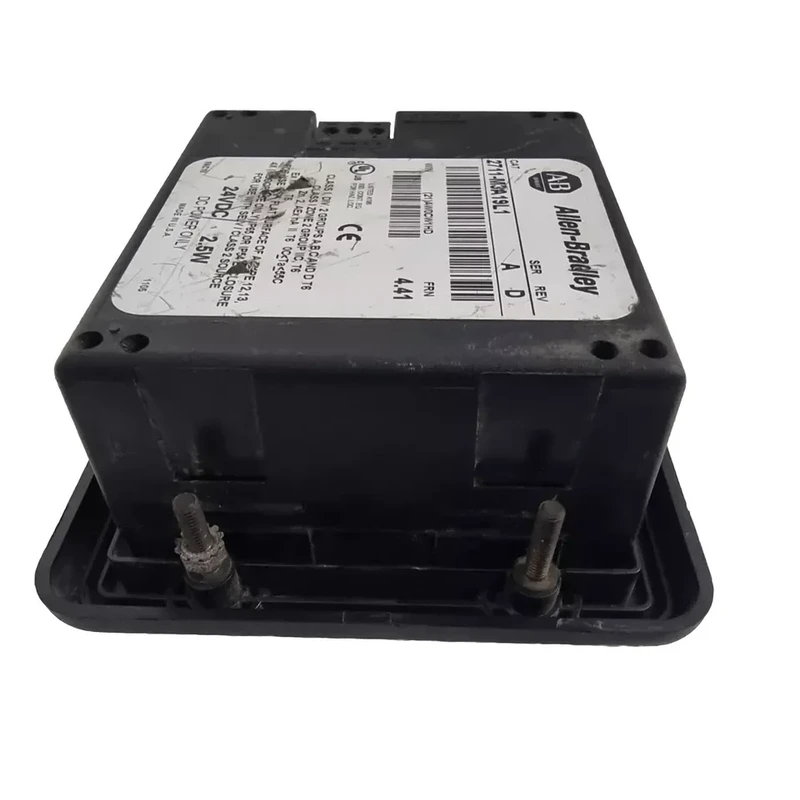

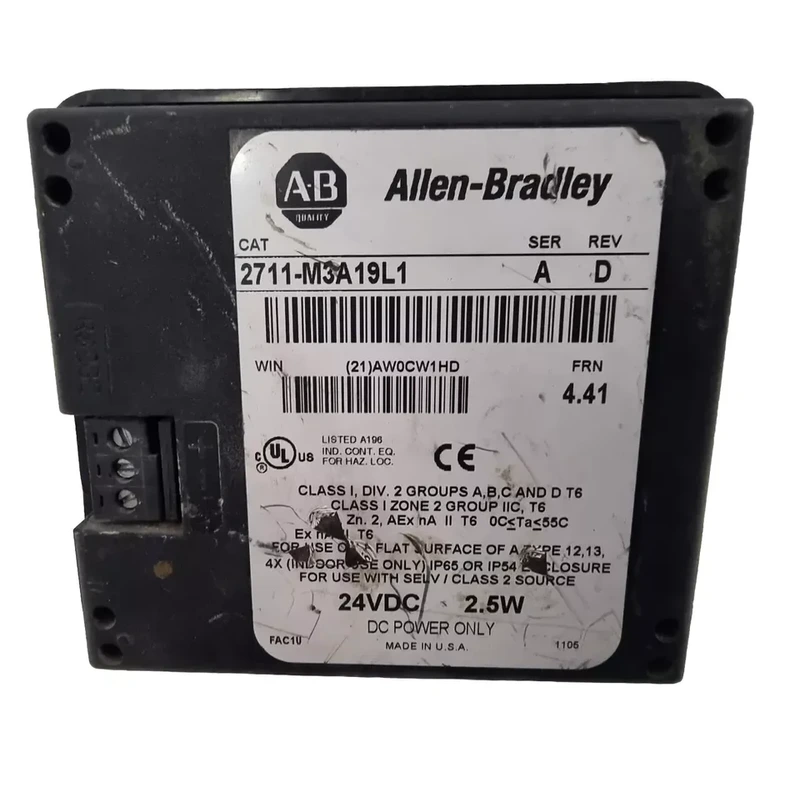

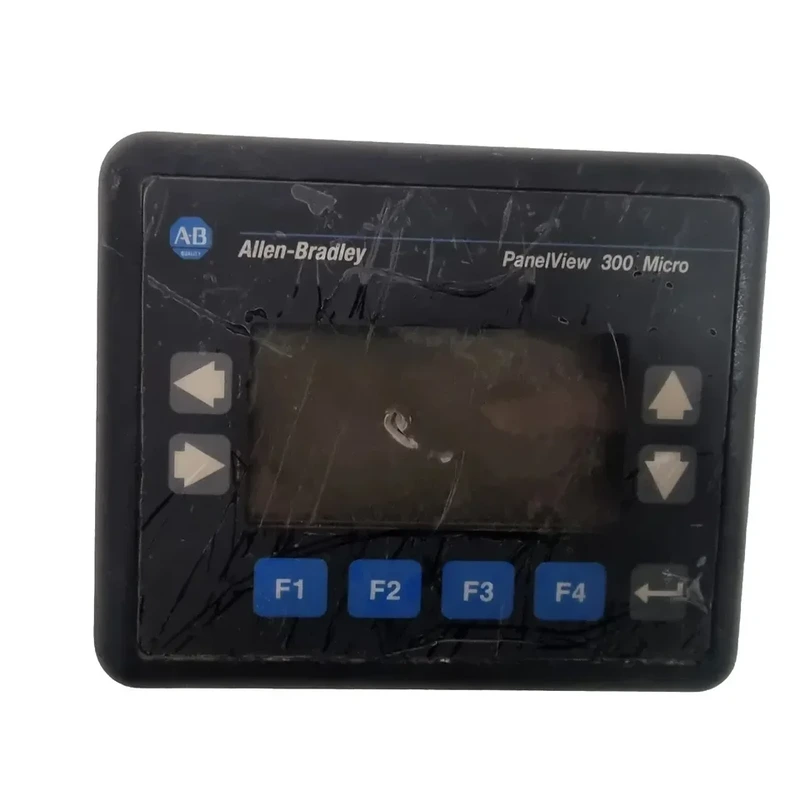

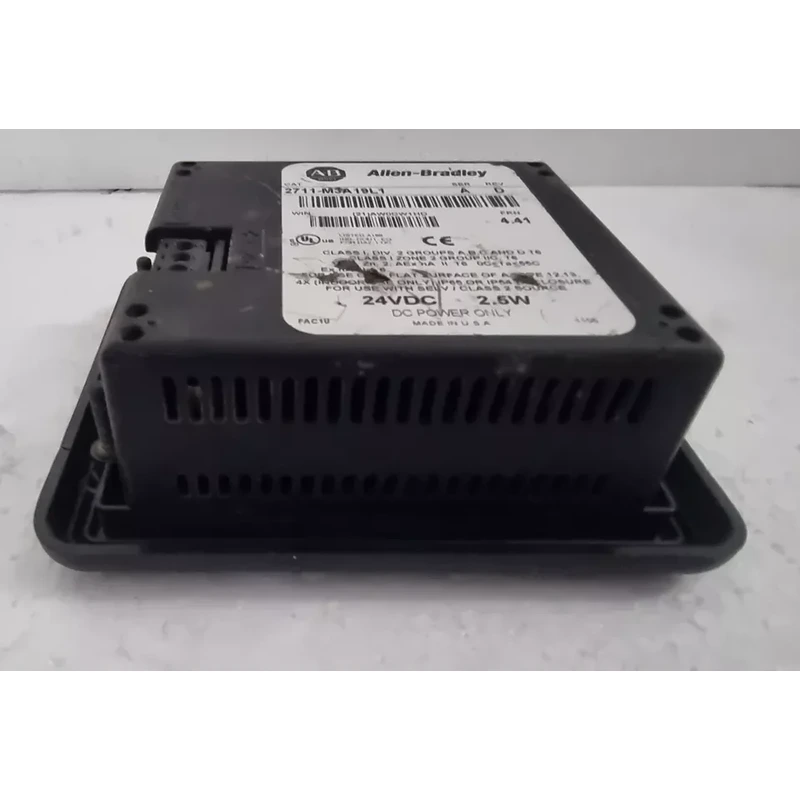

High-quality ALLEN BRADLEY 2711-M3A19L1 PANELVIEW MICRO 300 SER A REV D FRN 4.41 HMI DISPLAY in Used (Tested Working) condition, engineered for marine automation systems, vessel engine control, and industrial equipment reliability.
Supplied directly by Marine Exporters with worldwide express shipping, verified quality testing, and competitive B2B export pricing.
Condition: Used (Tested Working)
Model: 2711-M3A19L1
Series: PanelView Micro 300 (Series A)
Revision: D
Firmware (Frn): 4.41
Display Type: 3.5″ monochrome LCD
Resolution: 160 x 160 pixels
Touchscreen: Resistive (single-touch)
Memory: 512KB non-volatile
Communication Ports: 1x RS-232 (DF1 protocol) 1x RS-485 (DH-485 protocol)
I/O Capacity: Supports up to 32 screens
Backlight: LED (50,000 hour typical life)
Input Voltage: 24VDC (10-30VDC range)
Current Consumption: 85mA @ 24VDC (2W)
Isolation: 500V AC (communication ports)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Humidity: 5-95% non-condensing
Vibration: 5g @ 10-500Hz
Shock: 30g peak (11ms duration)
Enclosure Rating: NEMA 4X/12 (IP65)
Supported Protocols: DF1 Full-Duplex DF1 Half-Duplex DH-485
Compatible Plcs: MicroLogix 1000/1100/1200/1400 SLC 500 PLC-5 (via DH-485)
Software: PanelBuilder 32 (v3.83 or later)
Application Memory: 400-500 elements typical
Supported Objects: Buttons Indicators Numeric Displays Alarm Messages
Dimensions: 96 x 96 x 47mm (3.8 x 3.8 x 1.85″)
Panel Cutout: 92 x 92mm (3.62 x 3.62″)
Weight: 0.3kg (0.66 lbs)
Mounting: Panel mount with front bezel
2711-M3A19L1 Indicates: M3A: Micro 300 series, monochrome 19: 3.5″ display size L1: 24VDC power supply
M3A: Micro 300 series, monochrome
19: 3.5″ display size
L1: 24VDC power supply
Ul Listed: UL 508
Ce Compliant: EN 61000-6-2, EN 61000-6-4
Marine: DNV-GL, ABS, LR
Brand: ALLEN BRADLEY
Type: ALLEN BRADLEY 2711-M3A19L1 PANELVIEW MICRO 300 SER A REV D FRN 4.41 HMI DISPLAY
MPN: 2711-M3A19L1
Controller Platform: OPERATOR INTERFACE PANEL / HMI
