Condition:Used

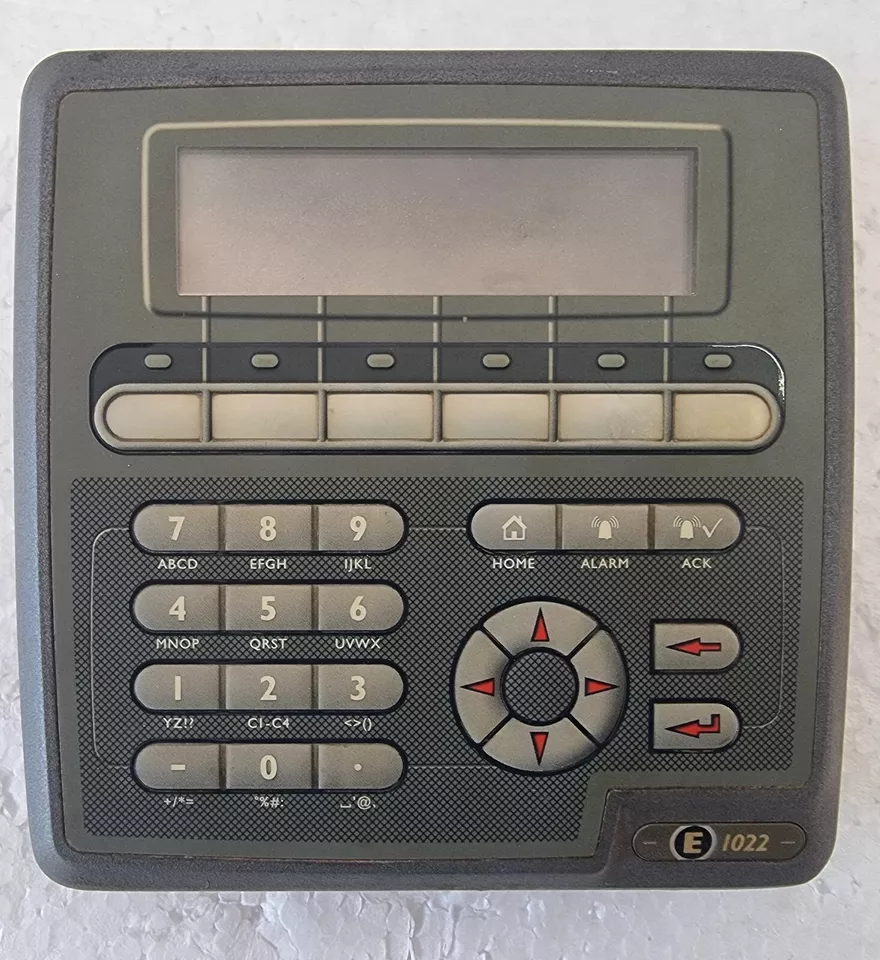

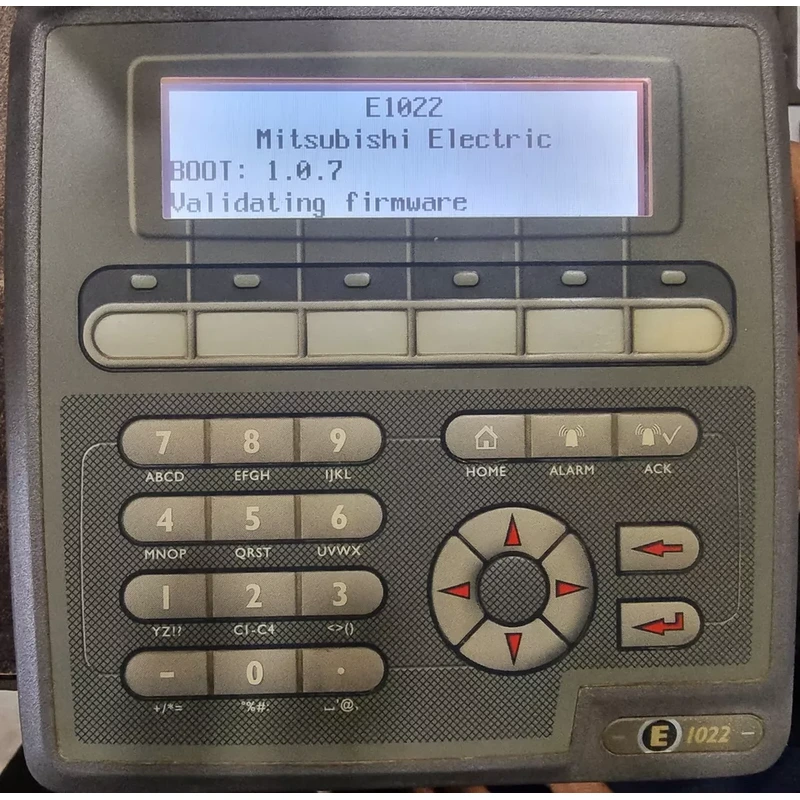

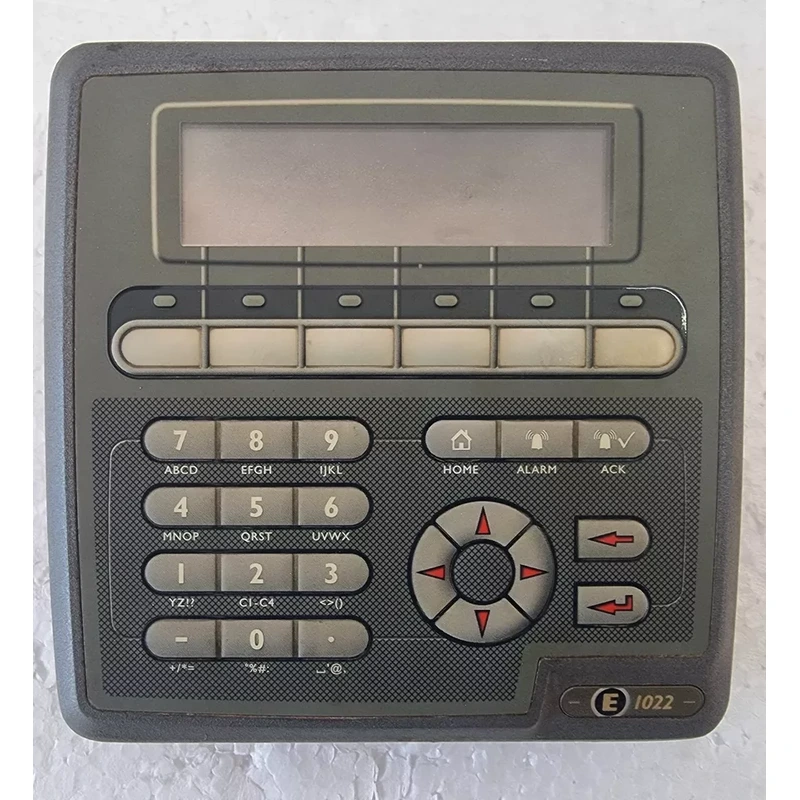

Core Specifications

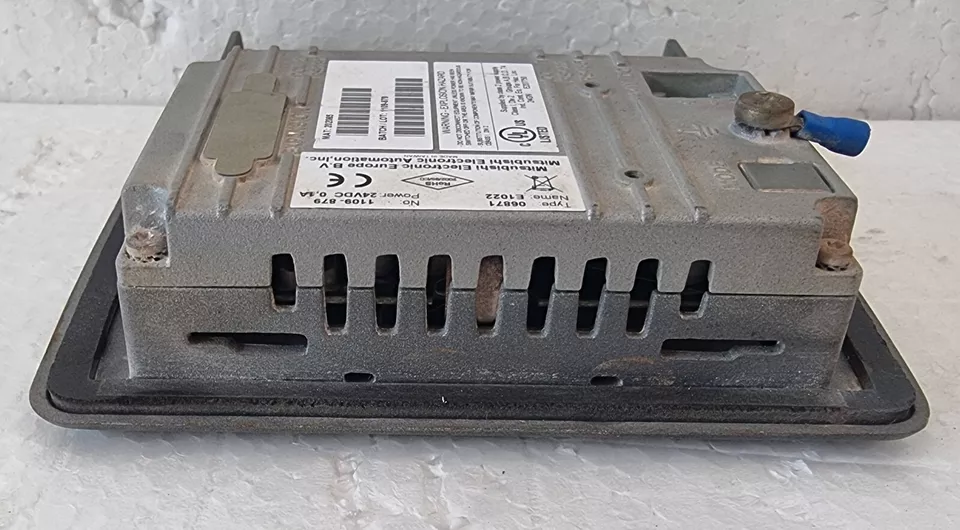

• Model: E1022 (Type 06871)

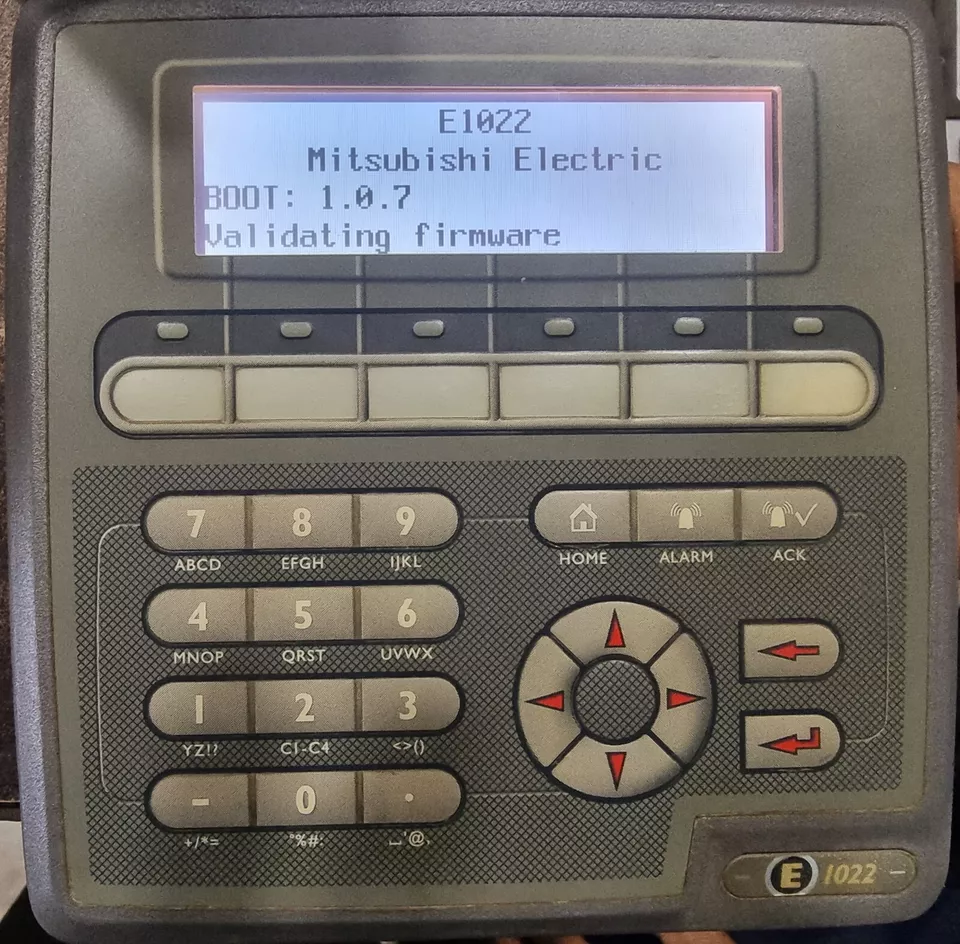

• Display: 10.4″ TFT LCD

• Resolution: 640 x 480 (VGA)

• Touch Technology: Resistive (single-touch)

• Brightness: 400 cd/m² (adjustable)

• Viewing Angle: 140° horizontal/vertical

Hardware Configuration

• Processor: 32-bit RISC 400MHz

• Memory:

  • Flash: 128MB (program storage)

  • RAM: 64MB

  • Expansion: SD card slot (max 32GB)

• Real-Time Clock: Battery-backed (CR2032)

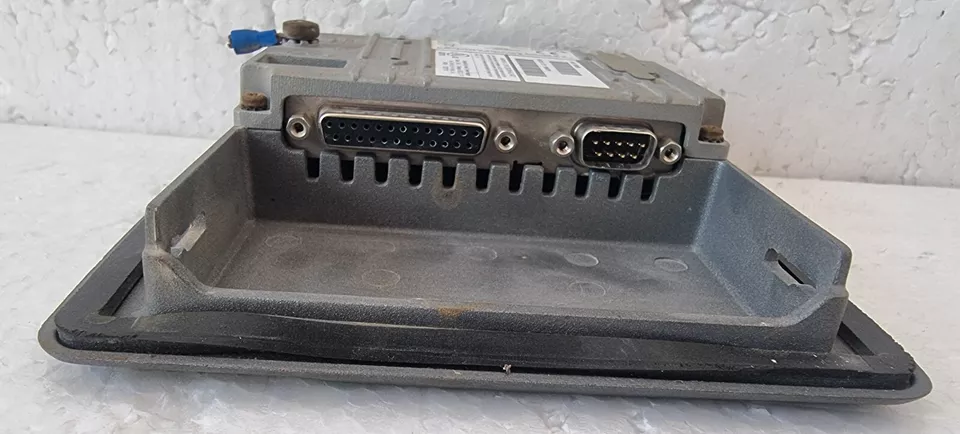

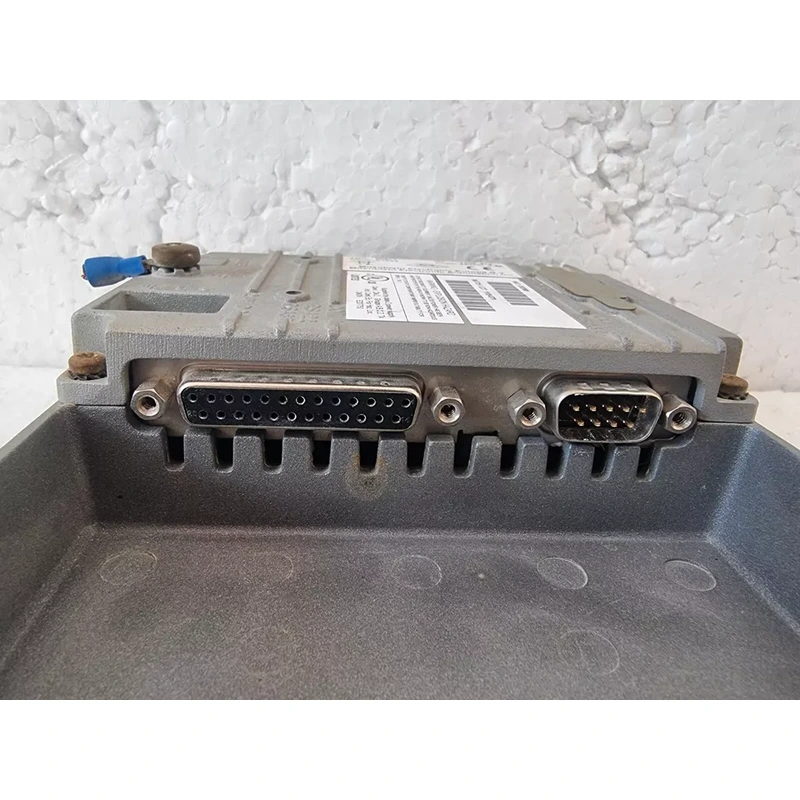

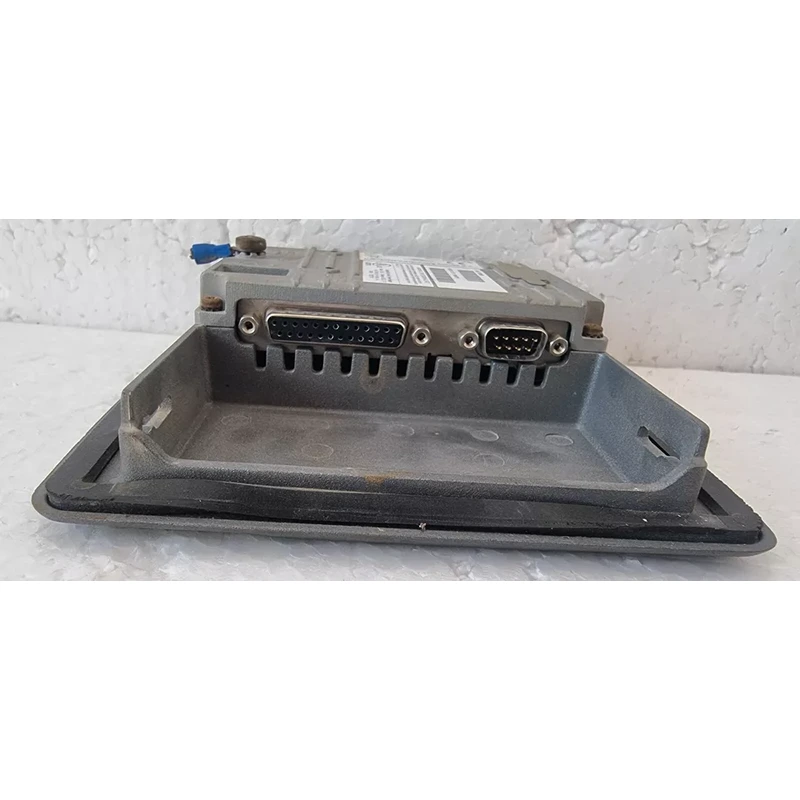

Communication Interfaces

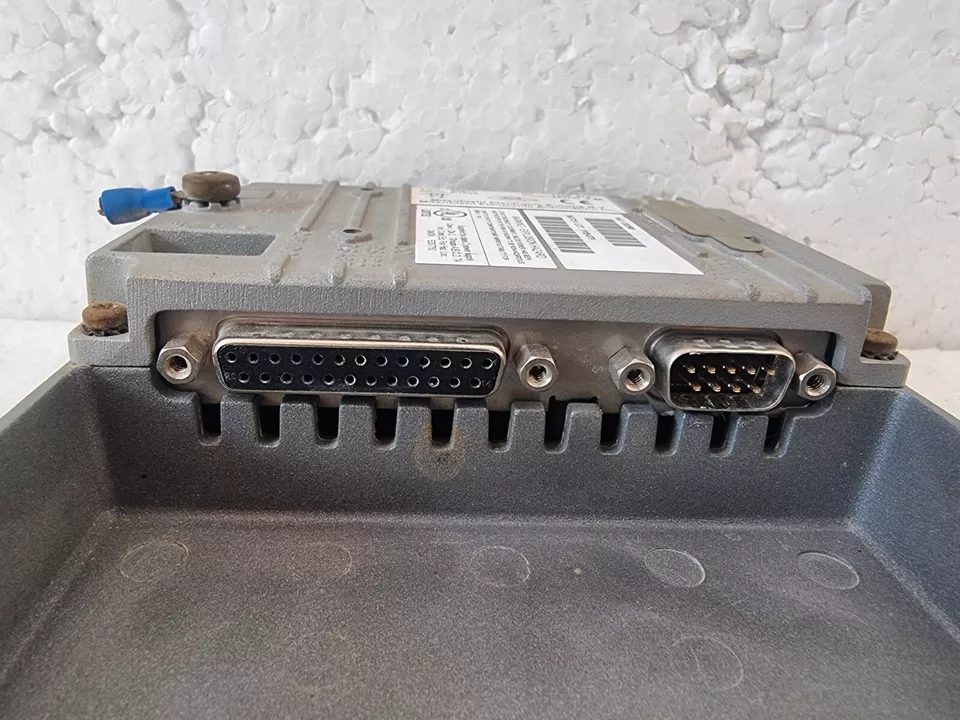

• Serial Ports:

  • 1x RS-232 (DB9 male)

  • 1x RS-422/485 (terminal block)

• Ethernet: 10/100Base-T (RJ45)

• USB: 1x USB 2.0 host port

Electrical Specifications

• Input Voltage: 24VDC ±10%

• Current Consumption: 0.45A (10.8W)

• Inrush Current: 1.2A for 20ms

• Backup Power: Supercapacitor (72hr retention)

Environmental Ratings

• Operating Temp: 0°C to +50°C

• Storage Temp: -20°C to +60°C

• Humidity: 10-90% non-condensing

• Vibration: 1G @ 10-150Hz

• Enclosure: IP65 front panel (NEMA 4X)

Software Features

• Development Environment: iX Developer v2.0+

• Runtime System: Windows CE 6.0

• Supported Protocols:

  • Mitsubishi MELSEC (FX/Q/L series)

  • Modbus RTU/TCP

  • Siemens S7 MPI/PROFIBUS

  • Omron Host Link

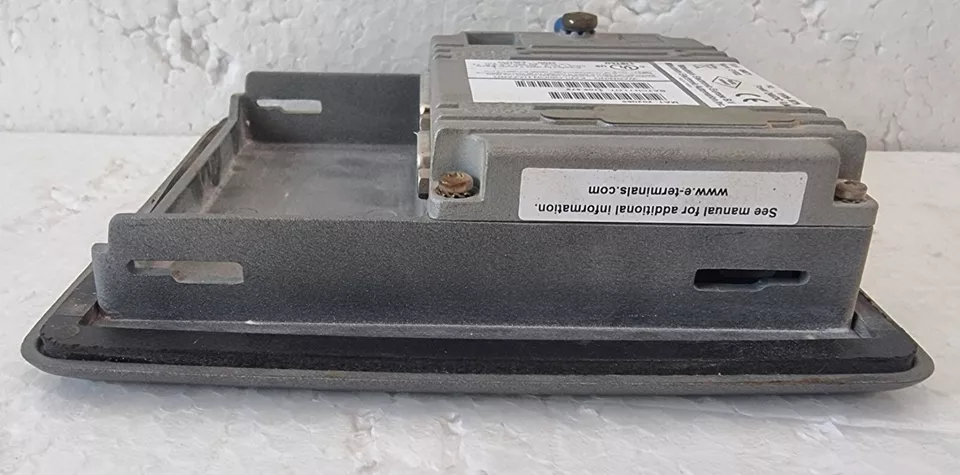

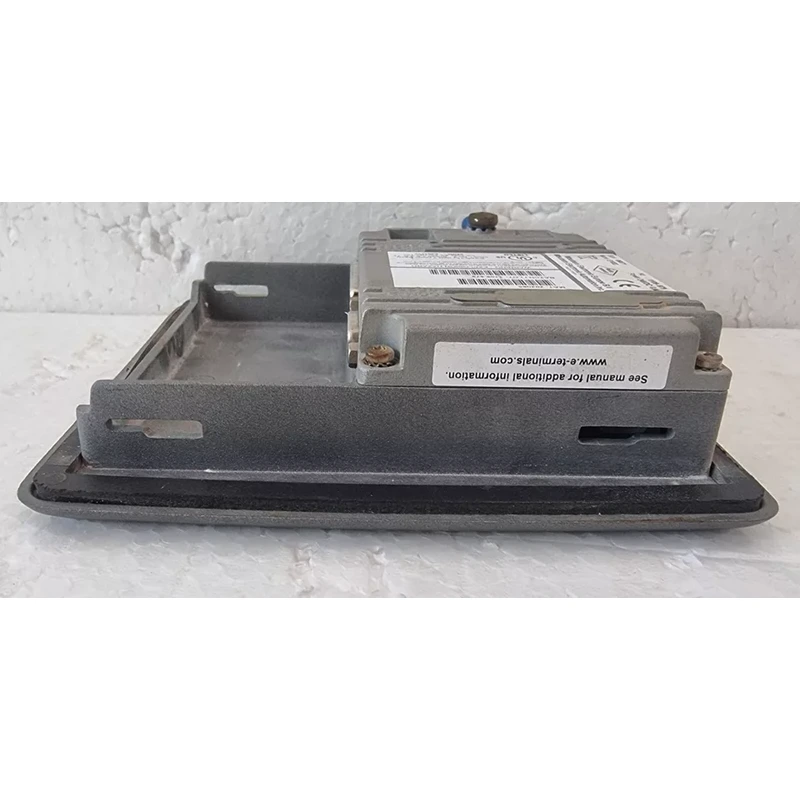

Mechanical Details

• Panel Cutout: 237 x 177mm (9.33 x 6.97″)

• Overall Dimensions: 255 x 195 x 46mm (10.04 x 7.68 x 1.81″)

• Weight: 1.6kg (3.5 lbs)

• Mounting: Panel mount with front bezel

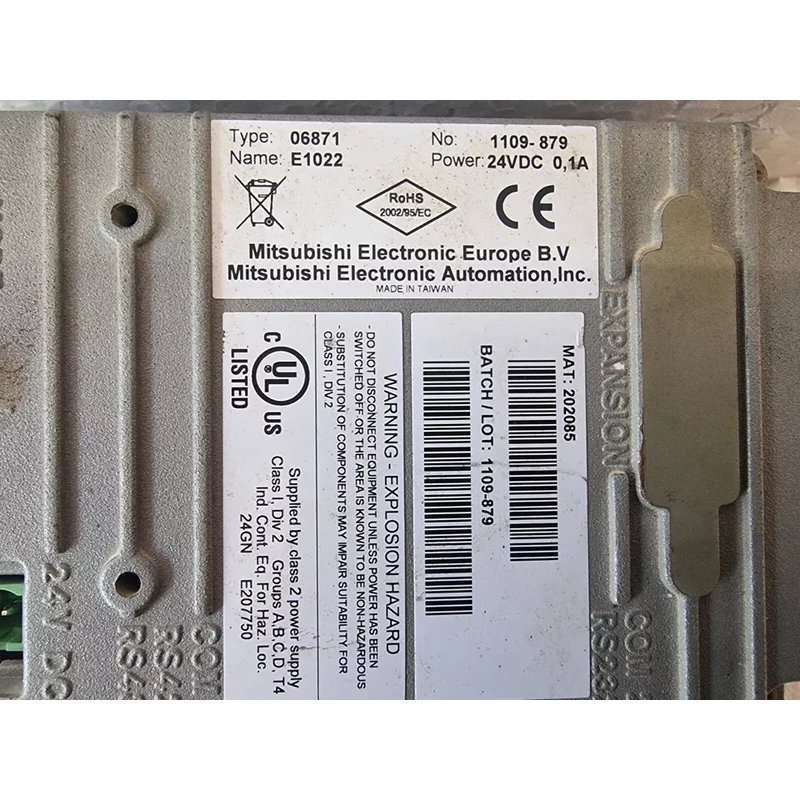

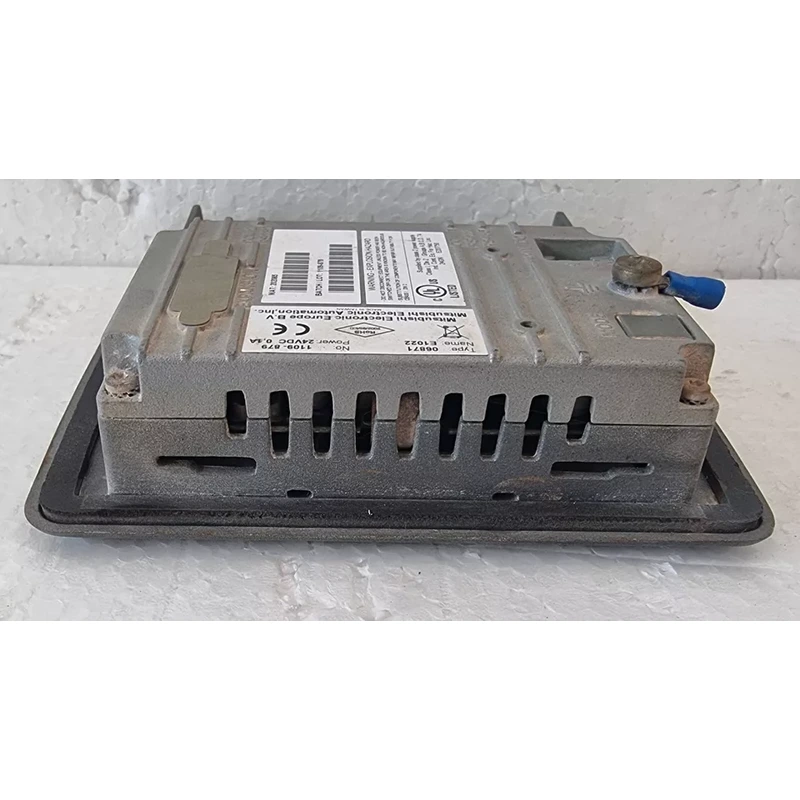

Ordering Information

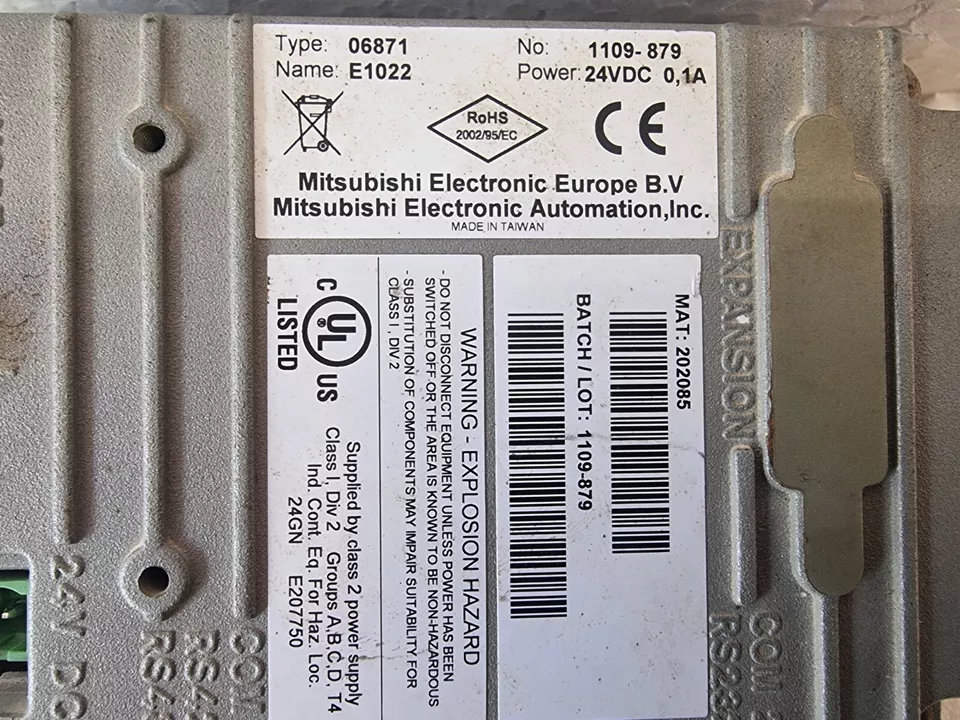

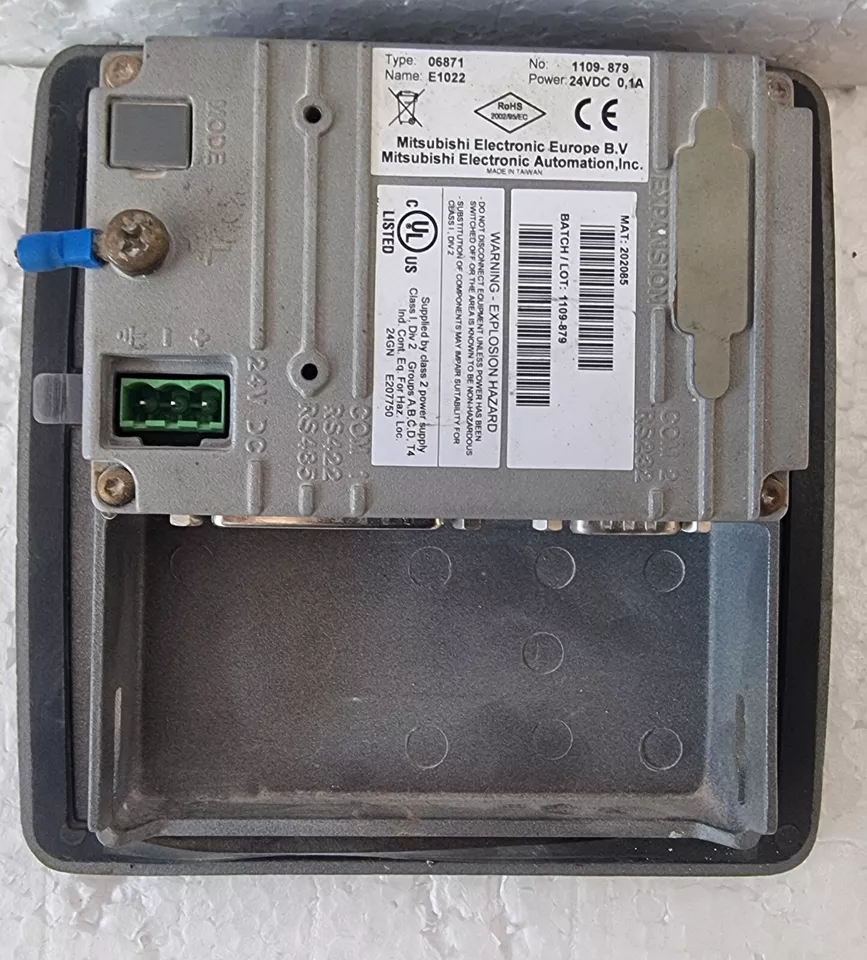

• Type 06871 indicates:

  • 24VDC power supply

  • Resistive touchscreen

  • Basic communication package

• Alternative Versions:

  • 06872: Capacitive touch

  • 06873: Extended temperature range

Certifications

• Safety: UL/cUL 508

• EMC: EN 61000-6-2/4

• Marine: DNV-GL, ABS, LR

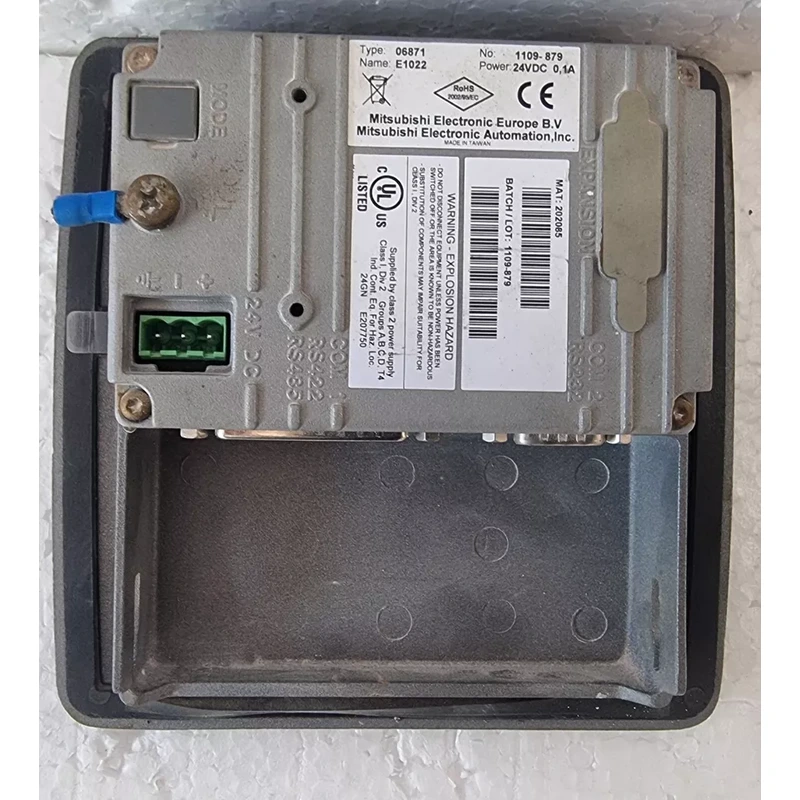

Installation Guide

1. Power Wiring:

   • Terminal 1: +24VDC

   • Terminal 2: 0VDC

   • Recommended wire: 0.5-1.5mm²

2. Grounding:

   • Dedicated PE terminal

   • Max resistance: 10Ω

3. Communication:

   • RS-485 requires 120Ω termination

   • Max cable length: 500m (RS-485)

Application Capacity

• Max Screens: 500

• Graphic Objects: 1000+ per screen

• Alarms: 10,000 events with time stamp

• Data Logging: CSV format (SD card storage)
