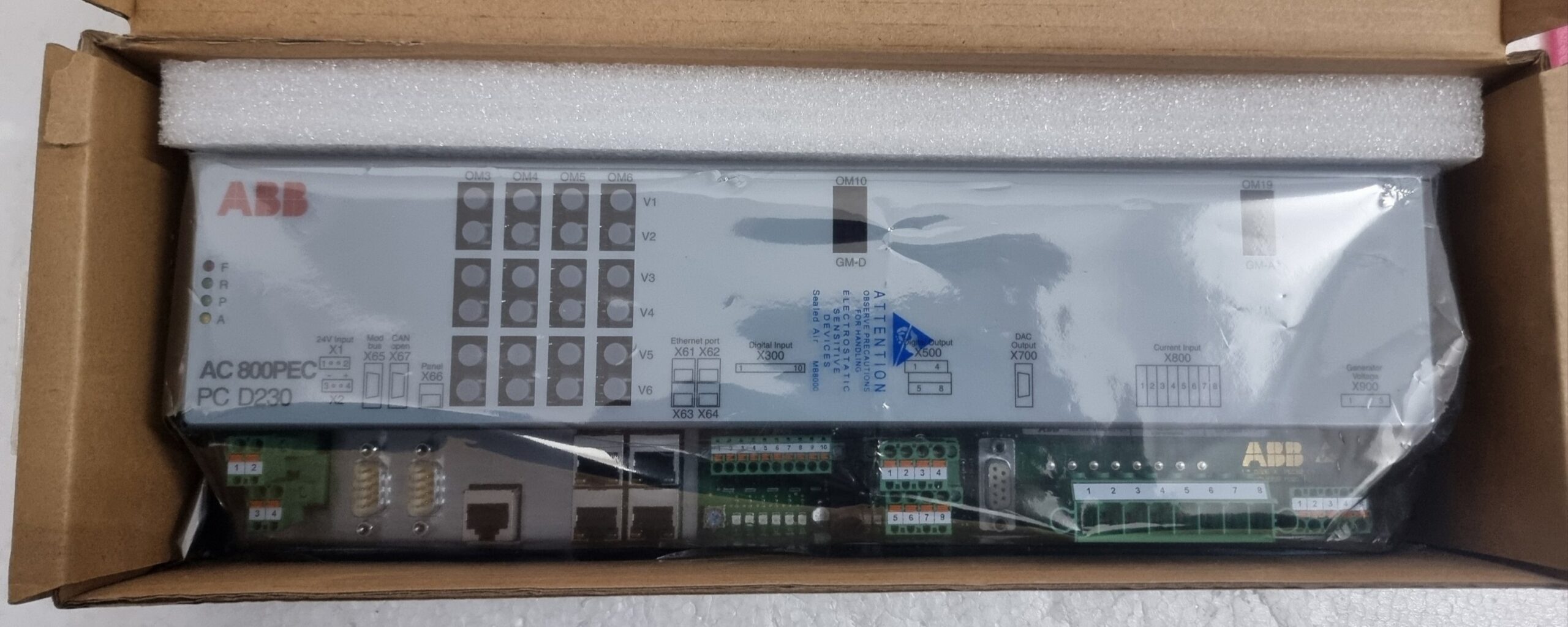

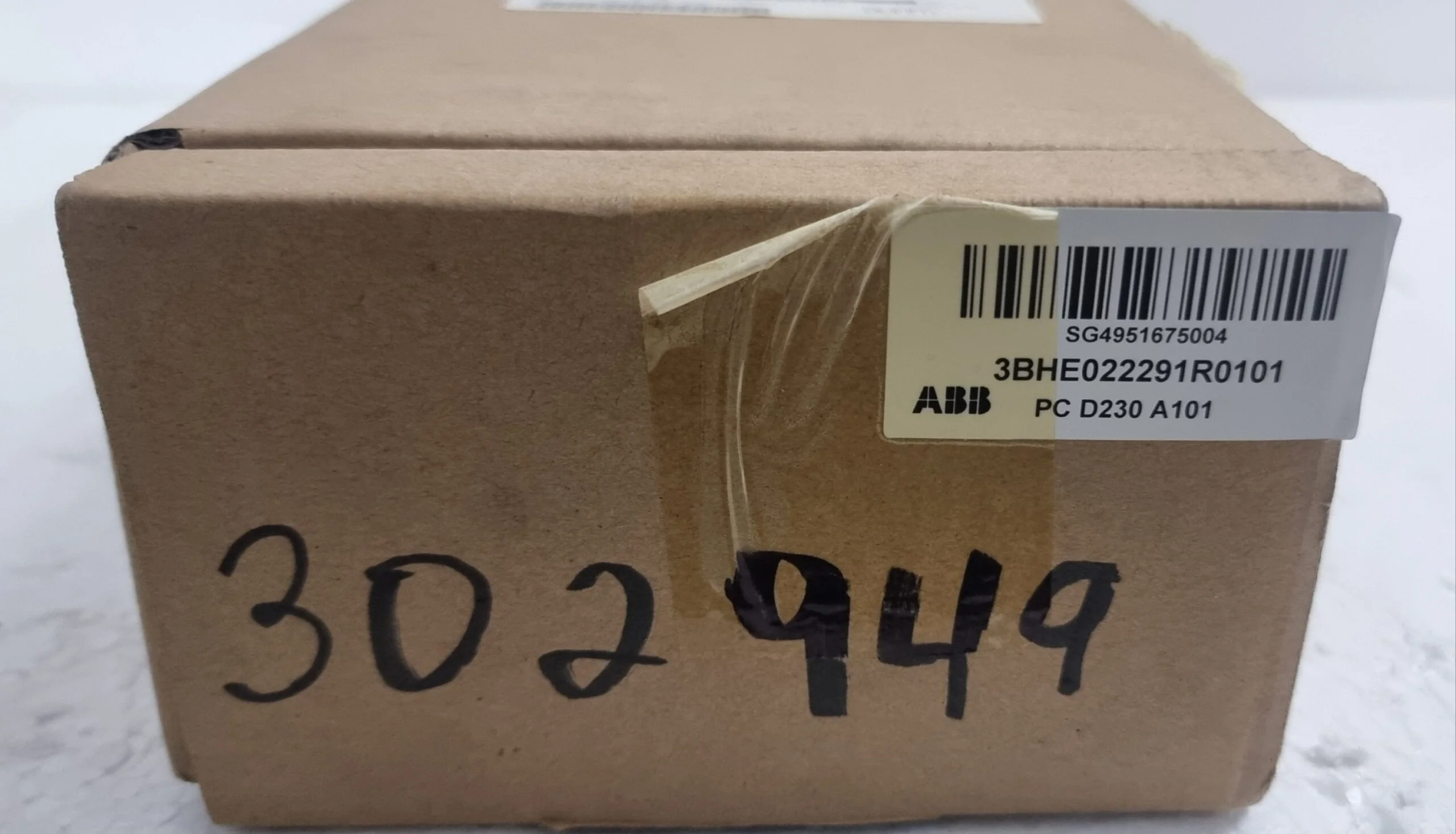

CONDITION : BRAND NEW BOX PACKED PRODUCT !

Key Specifications

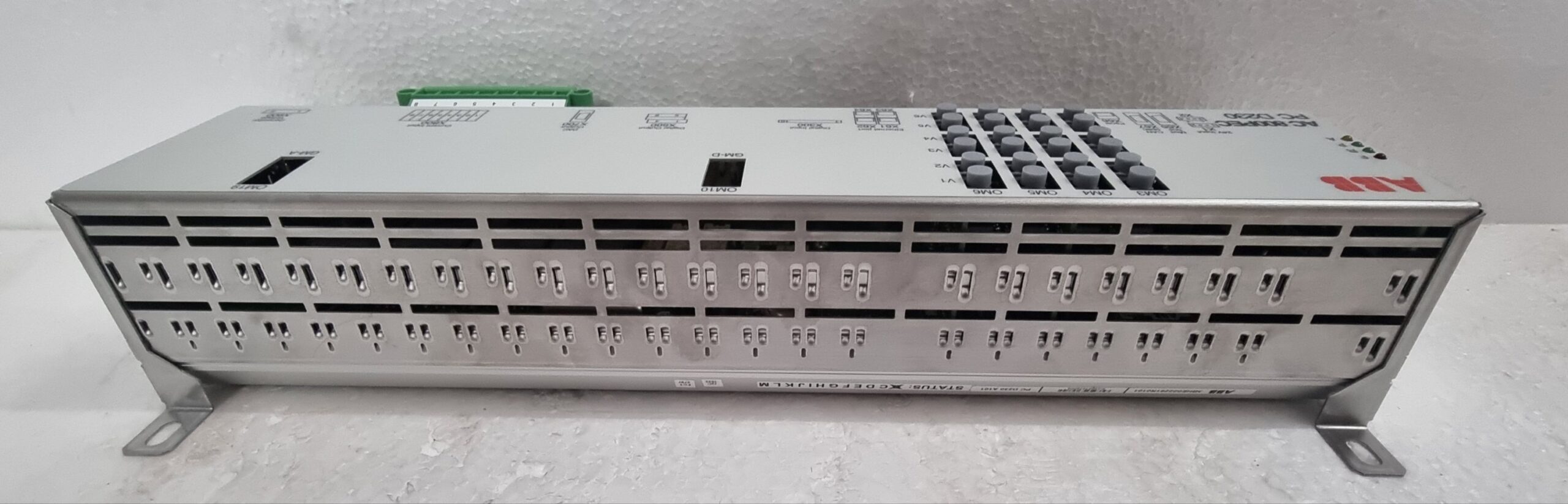

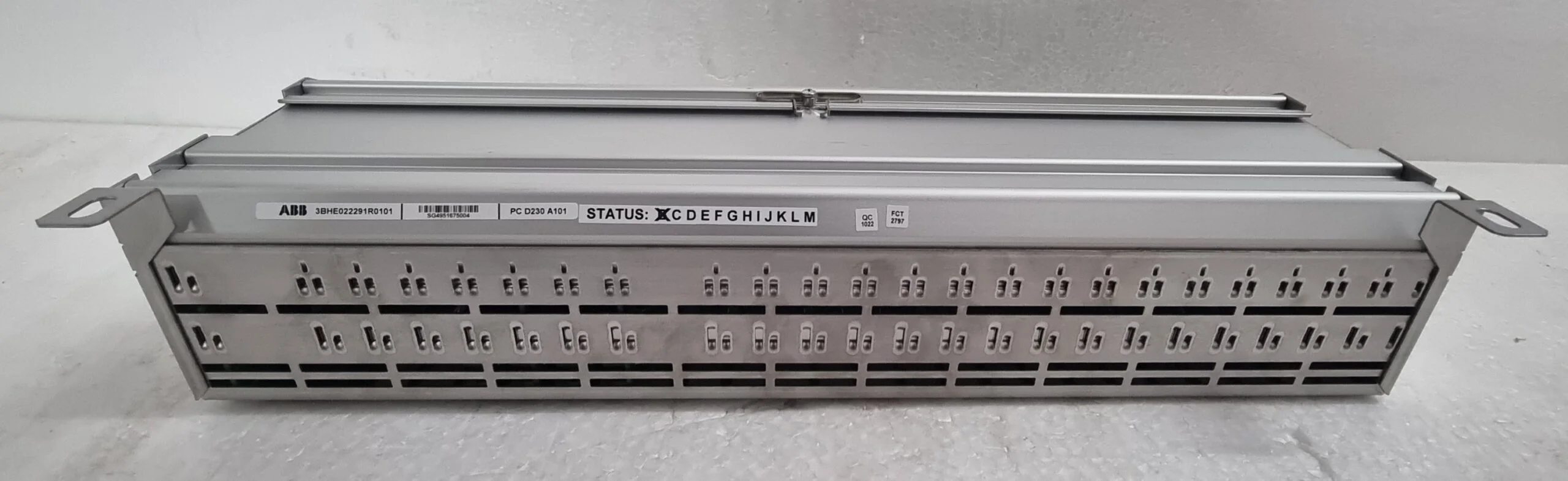

Module Overview:

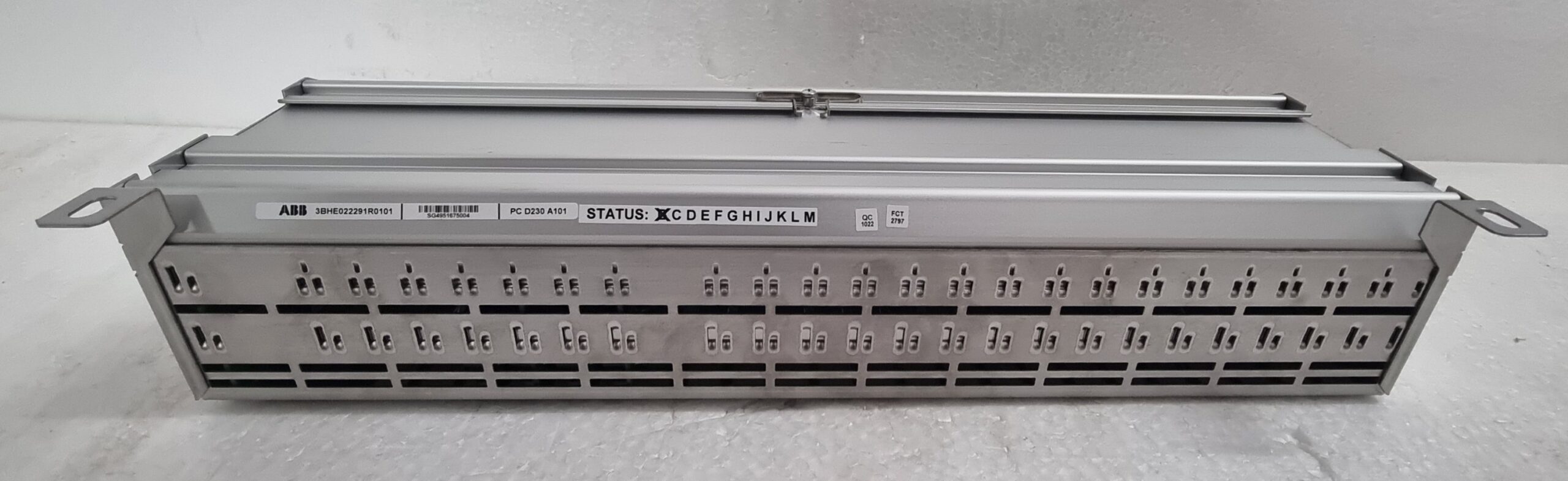

• Type: Communication & Control Interface Board

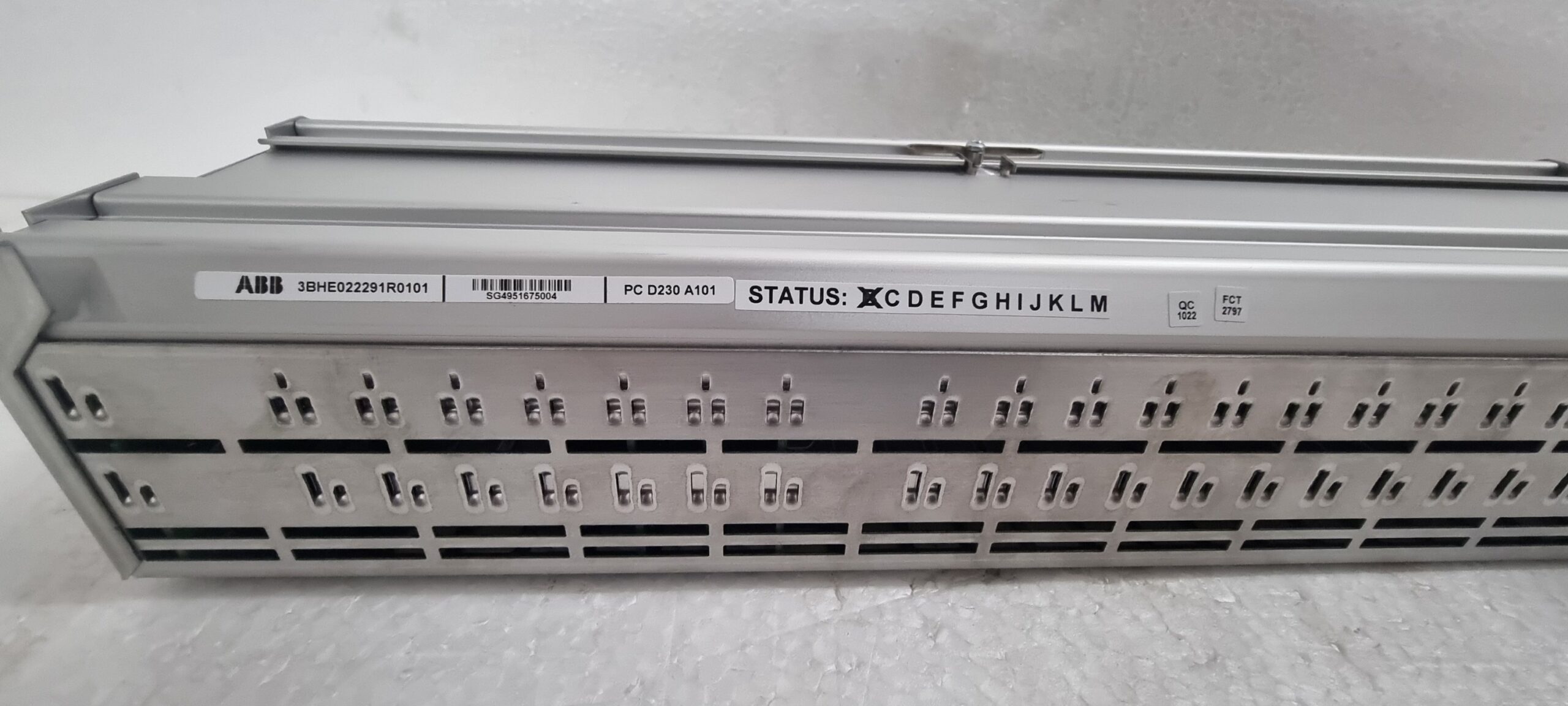

• Part Number: 3BHE022291R0101

• Alternative Designation: PC D230 A0101

• Application: ABB’s industrial control systems (e.g., S800 I/O, Advant OCS)

Hardware Features:

• Processor: 32-bit RISC-based controller

• Memory:

  • Flash: 8MB (for firmware)

  • RAM: 16MB (operational)

• Clock Speed: 100MHz (typical)

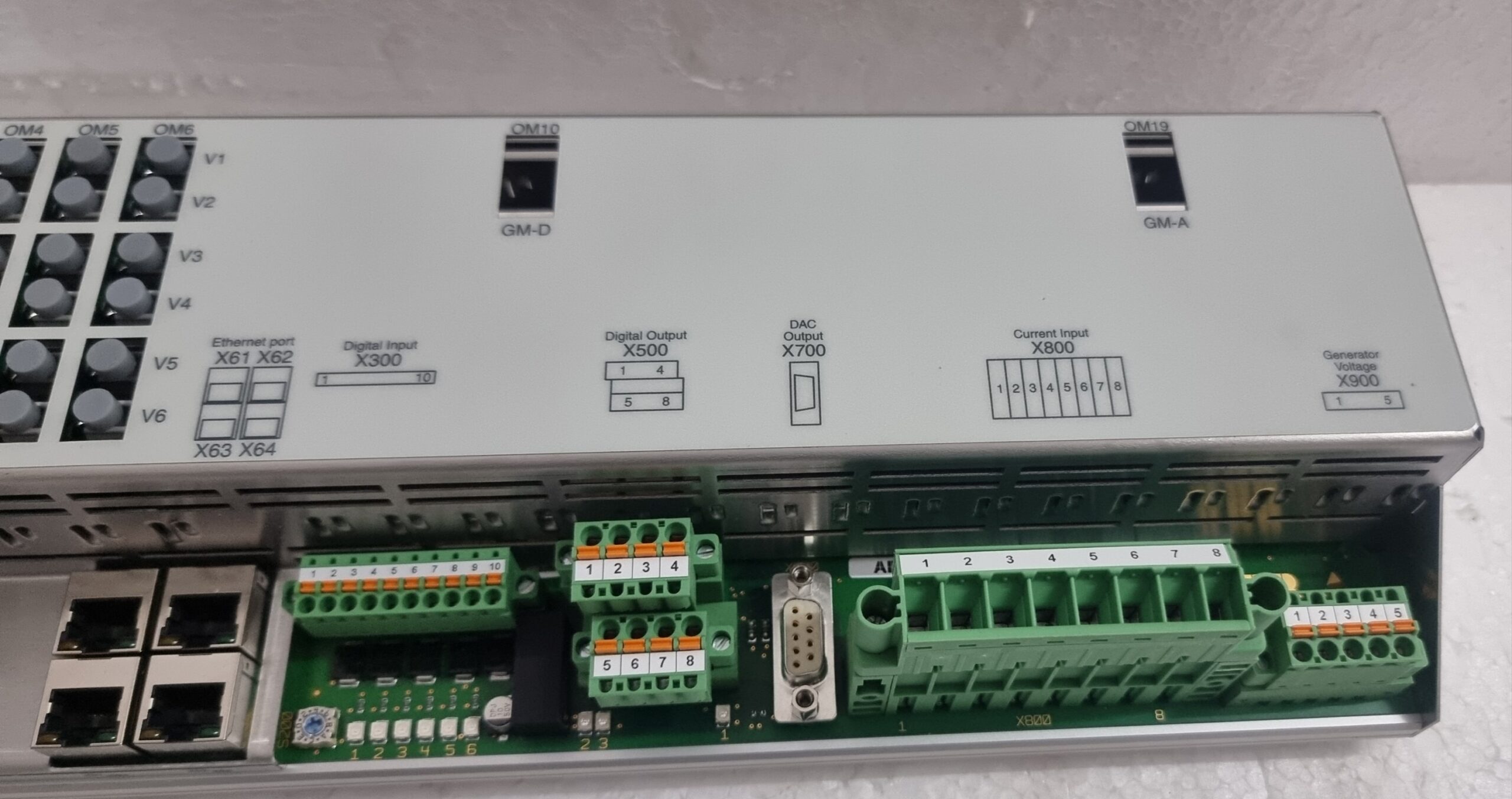

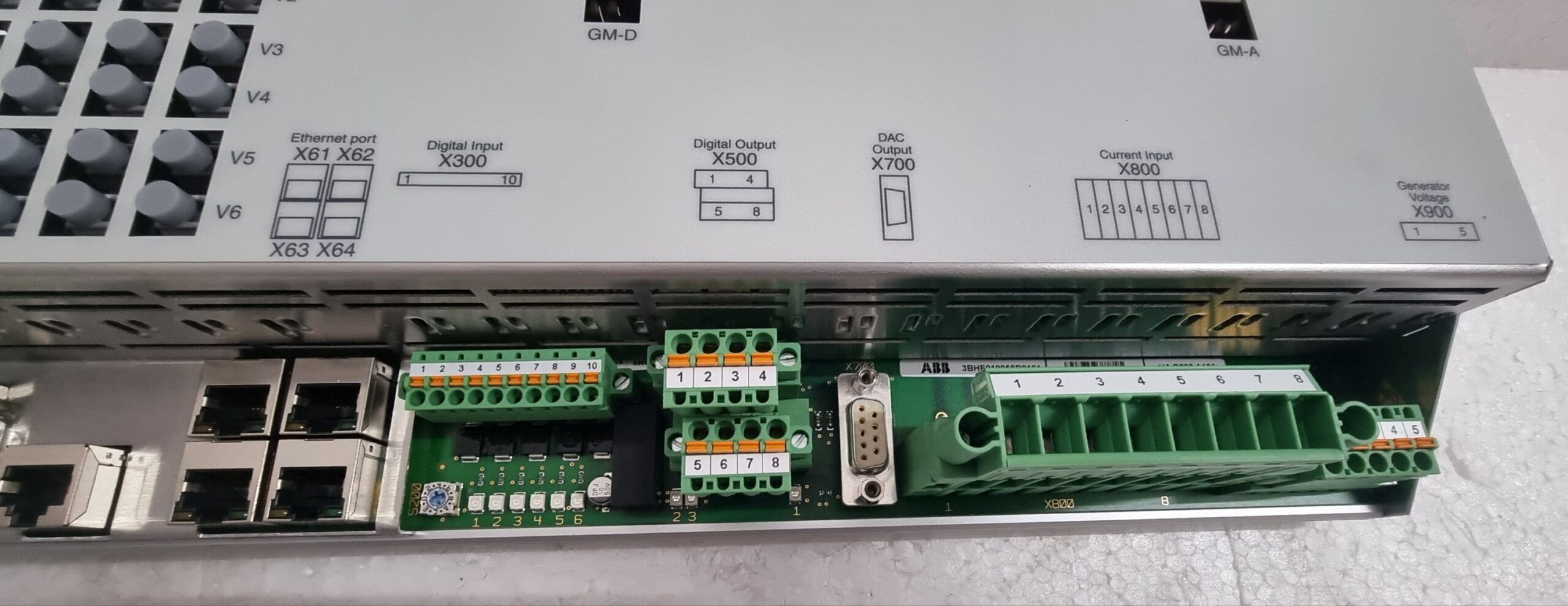

Communication Interfaces:

• Fieldbus Support:

  • PROFIBUS DP (via onboard interface)

  • Modbus RTU (RS-485)

• Backplane Connection:

  • S800 I/O bus compatible

  • Transfer rate: 1.5Mbps

• Serial Ports:

  • 1 × RS-232 (configuration)

  • 1 × RS-485 (field comms)

Electrical Specifications:

• Power Supply:

  • Voltage: 24V DC (±10%)

  • Consumption: 5W typical

• Isolation:

  • 1500V AC (field-side to logic)

  • Optical isolation on comms ports

Environmental Ratings:

• Operating Temp: -25°C to +70°C

• Storage Temp: -40°C to +85°C

• Humidity: 5-95% non-condensing

• Vibration: 1G (5-150Hz)

LED Indicators:

• Power status (green/red)

• Communication activity (yellow)

• Fault indication (red)

Functional Capabilities

1. Protocol Conversion:

   • Bridges between PROFIBUS DP and ABB’s internal bus systems

   • Supports cyclic and acyclic data exchange

2. I/O Processing:

   • Handles up to 256 digital/analog points

   • Scan time: ≤10ms for typical configurations

3. Diagnostics:

   • Onboard self-tests

   • Event logging (last 100 faults)

Configuration & Programming

• Software Tools:

  • ABB Control Builder M3

  • PCM600 (for power automation)

• Firmware Updates:

  • Via serial port or network download

  • Requires ABB service tools

Typical Applications

• Power plant control systems

• Substation automation

• Industrial process control

• Integration of legacy ABB devices with modern networks
